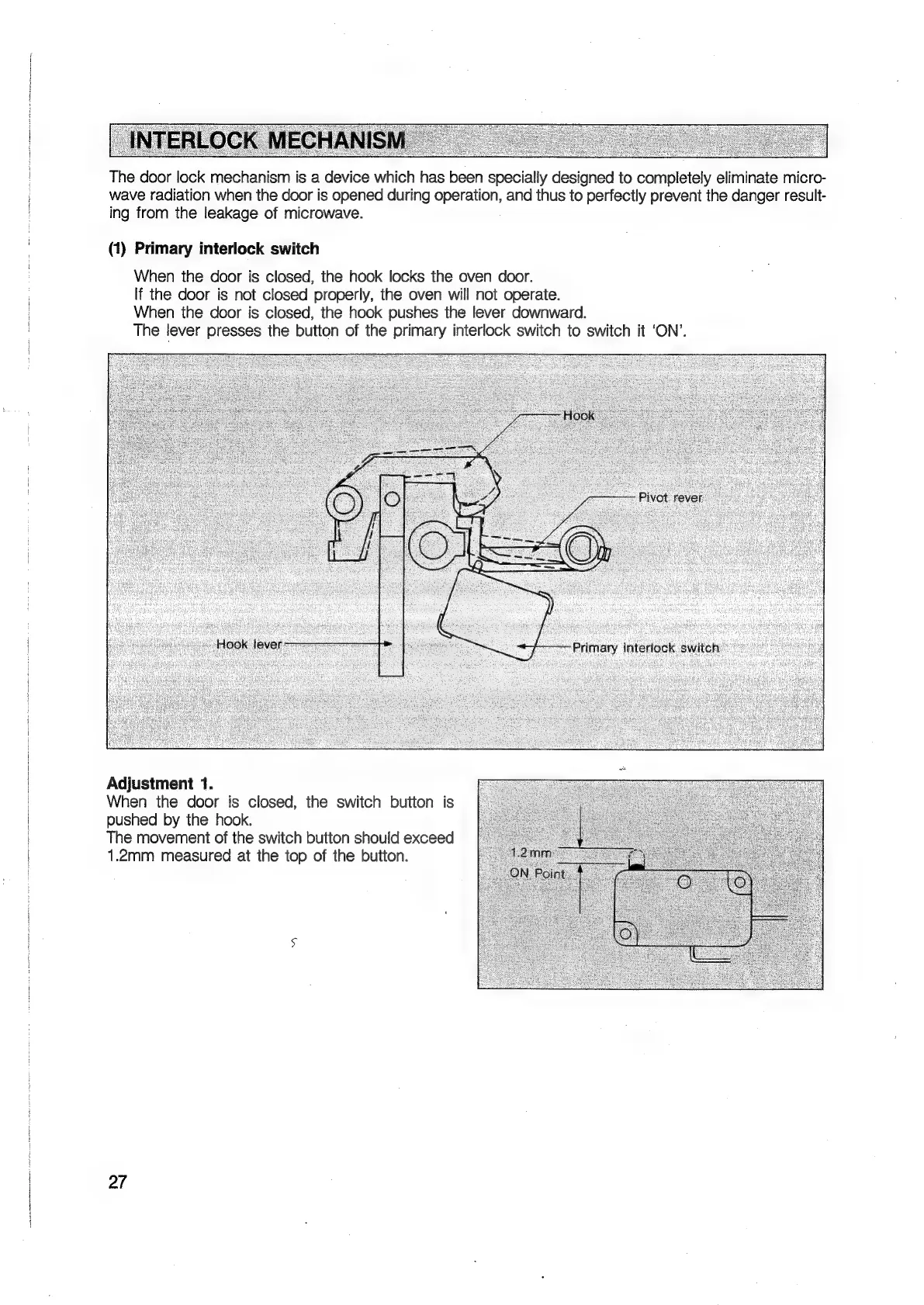

The door lock mechanism is a device which has been specially designed to completely eliminate micro-
wave radiation when the door is opened during operation, and thus to perfectly prevent the danger result-
ing from the leakage of microwave.
(1) Primary interlock switch
When the door is closed, the hook locks the oven door.
If the door is not closed properly, the oven will not operate.
When the door is closed, the hook pushes the lever downward.
The lever presses the button of the primary interlock switch to switch
<higetiaeensese
ike
ee
Ey
eae
ie
es
Adjustment 1.
When the door is closed, the switch button is
pushed by the hook.
The movement of the switch button should exceed
1.2mm measured at the top of the button.
27
‘ ays
it ‘ON’.
