Daewoo RN-331N - 1-3. Machine Compartment View

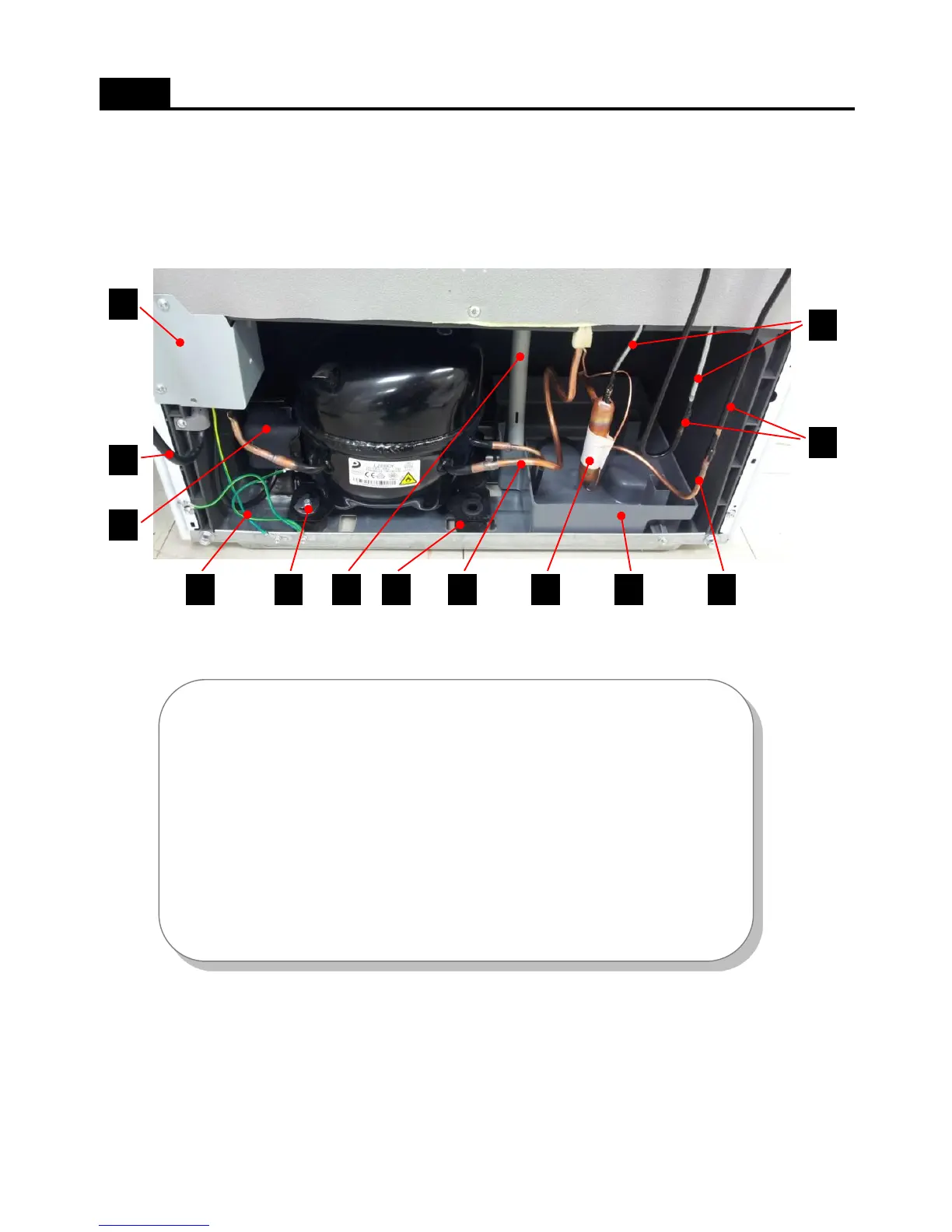

1-3. Machine (Compressor) Compartment View
1. SPECIFICATIONS
1.Box Power As (Capacitor Run)
2. Power Cord
3. Switch P Relay As
4. Earth Comp Wire
5. Fixture Compressor (Washer)
6. Drain Hose
7. Compressor Absorber
8. Suction Pipe As
9. Dryer As
10. Case vaporization As
11.Pipe connector A
12. Pipe Wire Condensor As
13. Pipe Hot
- Features are model dependent ( Below is RN-271 model )
1
2
4
3
5 8 9 10 11
12
13
6 7
5
