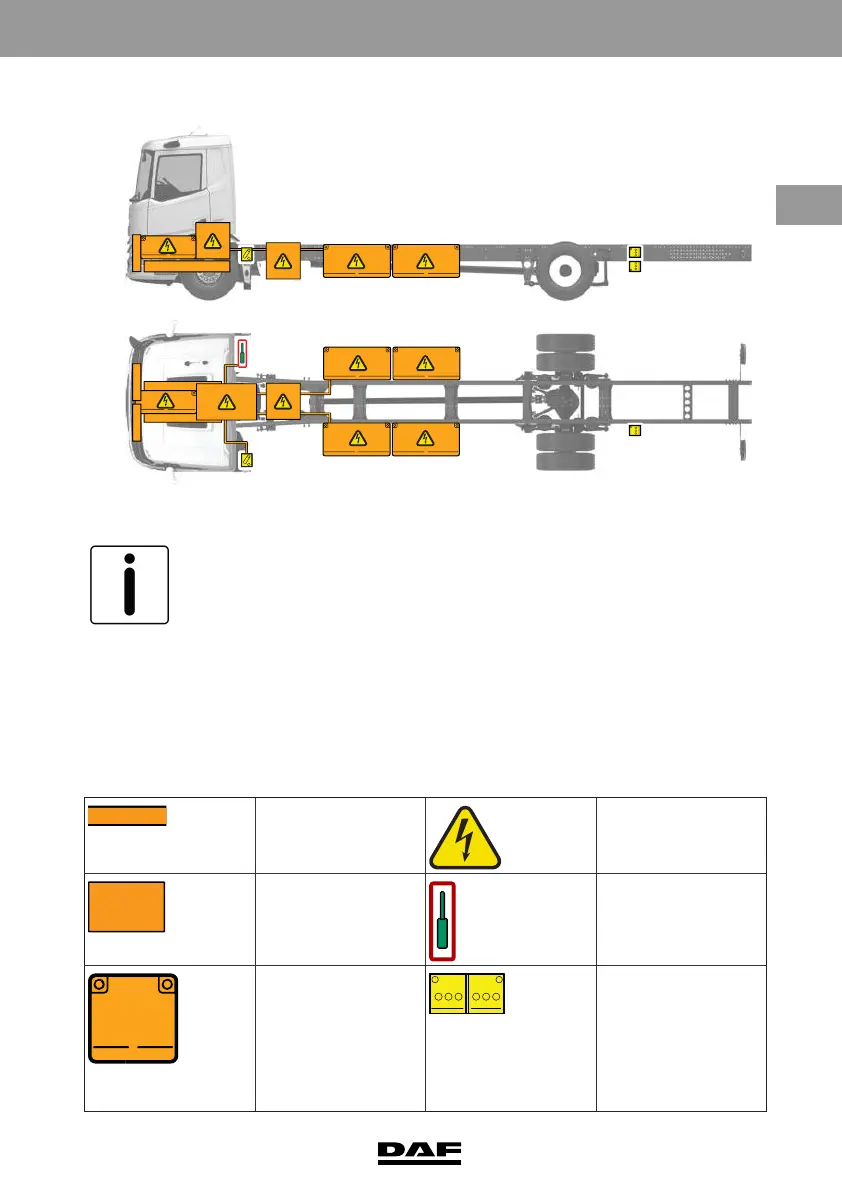

Chassis rigid (FA)
Figure 2
NOTE:
– Depicted is the Left Hand Drive truck (LHD) standard execution.
The number of High-Voltage batteries depends on the vehicle
configuration (minimum 2 and maximum 5). The High-Voltage
battery under the cabin is always present, up to 4 are mounted
on the chassis.
– If applicable: the main switch for the 24 V batteries is located on
the left side.
– The cabin tilt pump is located on the co-drivers side.
– The location of the 24 V batteries depends on the body builder
application.
High-Voltage
cables (500-700
VDC or 400 VAC)
High-Voltage
warning
High-Voltage com-
ponent
Cabin tilt pump
High-Voltage bat-
teries
Battery type:
Lithium batteries
with LFP/LiFePO4
technology.
24 V batteries
13
Securing the vehicle
11
15
19
14
13
18
10
12
17
9
16
20
8
7
2
5
3
6
4
1
