Page #4 background image
3

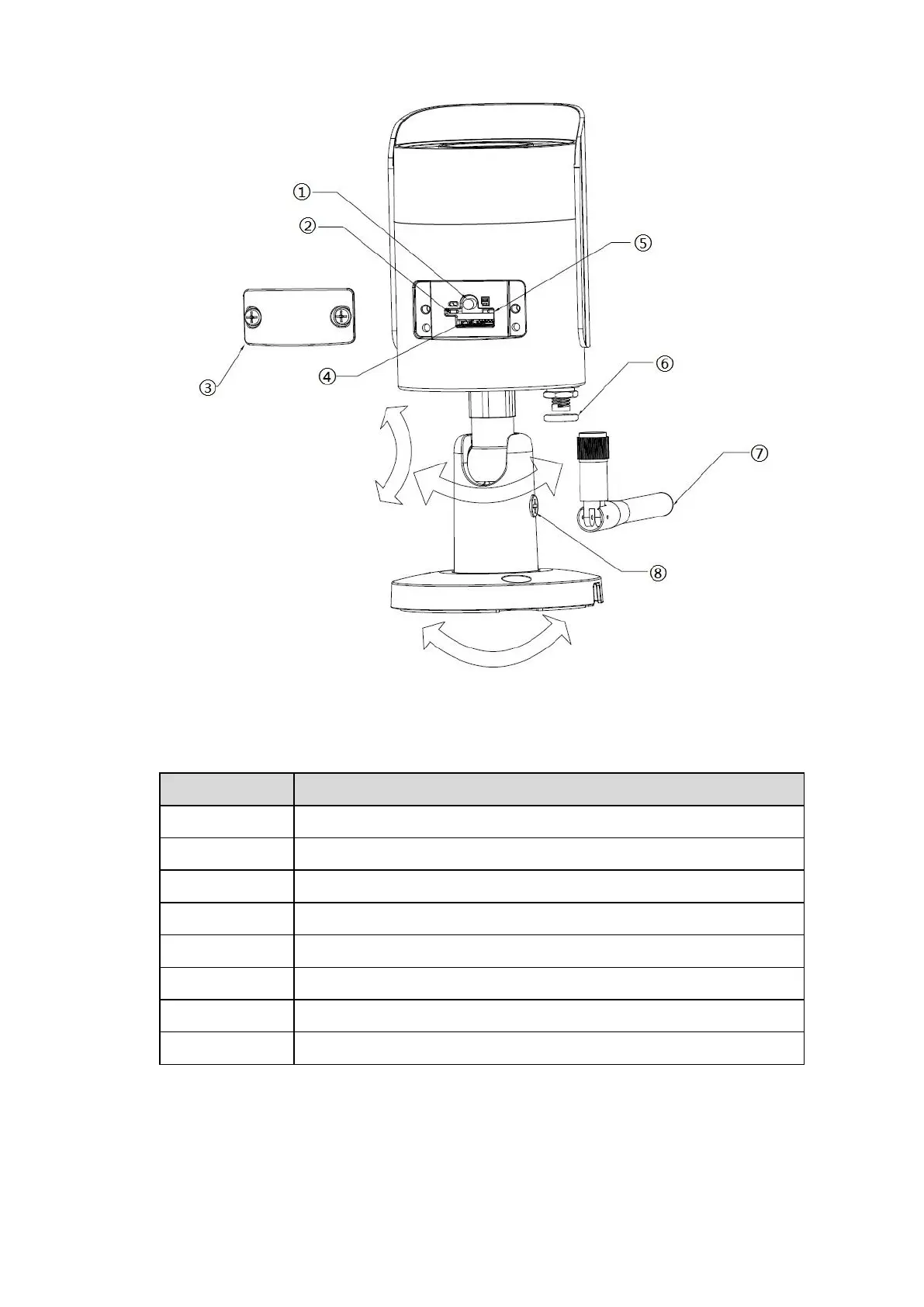

Figure 2-2
Please refer to the following sheet for more details about each component.
Sheet 2-2
Note:
For reset, long press for 8 seconds and then the light off; For WPS (Wi-Fi Protected Setup), one quick
press.
Please refer to the following sheet for more details about status of indicator light.
SN
Name
Reset/ WPS (Wi-Fi Protected Setup) button
Indicator light 1
Lower cover
Micro SD card slot
Indicator light 2
Waterproof ring
Wifi antenna
Locking screw

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology IPC-HFW1320S-W and is the answer not in the manual?

Dahua Technology IPC-HFW1320S-W Specifications

General IconGeneral
Form factorBullet
Mounting typeCeiling/wall
Product colorWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95 %
DC output voltage12
Power over Ethernet (PoE)No
Power consumption (typical)4.4 W
TypeIP security camera
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC 15 B
Day/night modeYes
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Maximum operating distance50 m
Mobile operating systems supportedAndroid, iOS
ROM capacity16 MB
Internal memory256 MB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Number of users20 user(s)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Streaming methodMulticast, Unicast
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.1x
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;ICMP;IGMP
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Total megapixels3 MP
Gain control typeAuto/Manual
Maximum resolution2304 x 1296 pixels
Supported video modes720p, 1080p
Video compression formatsH.264, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296
Digital zoom16 x
Fixed focal length2.8 mm
Maximum aperture number2
Pan range0 - 360 °
White balanceAuto, Lamp, Manual, Natural, Outdoor
Tilt angle range0 - 90 °
Angle of rotation360 °
Minimum illumination0 lx
LED typeIR
Night vision distance30 m
Number of illumination LEDs24
Sensor typeCMOS
Optical sensor size1/3 \
Number of cameras1
InterfaceRJ-45/WLAN
Weight and Dimensions IconWeight and Dimensions
Length164.7 mm
Weight430 g
Diameter70 mm
Package weight520 g
