2 Device Installation
Important
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.

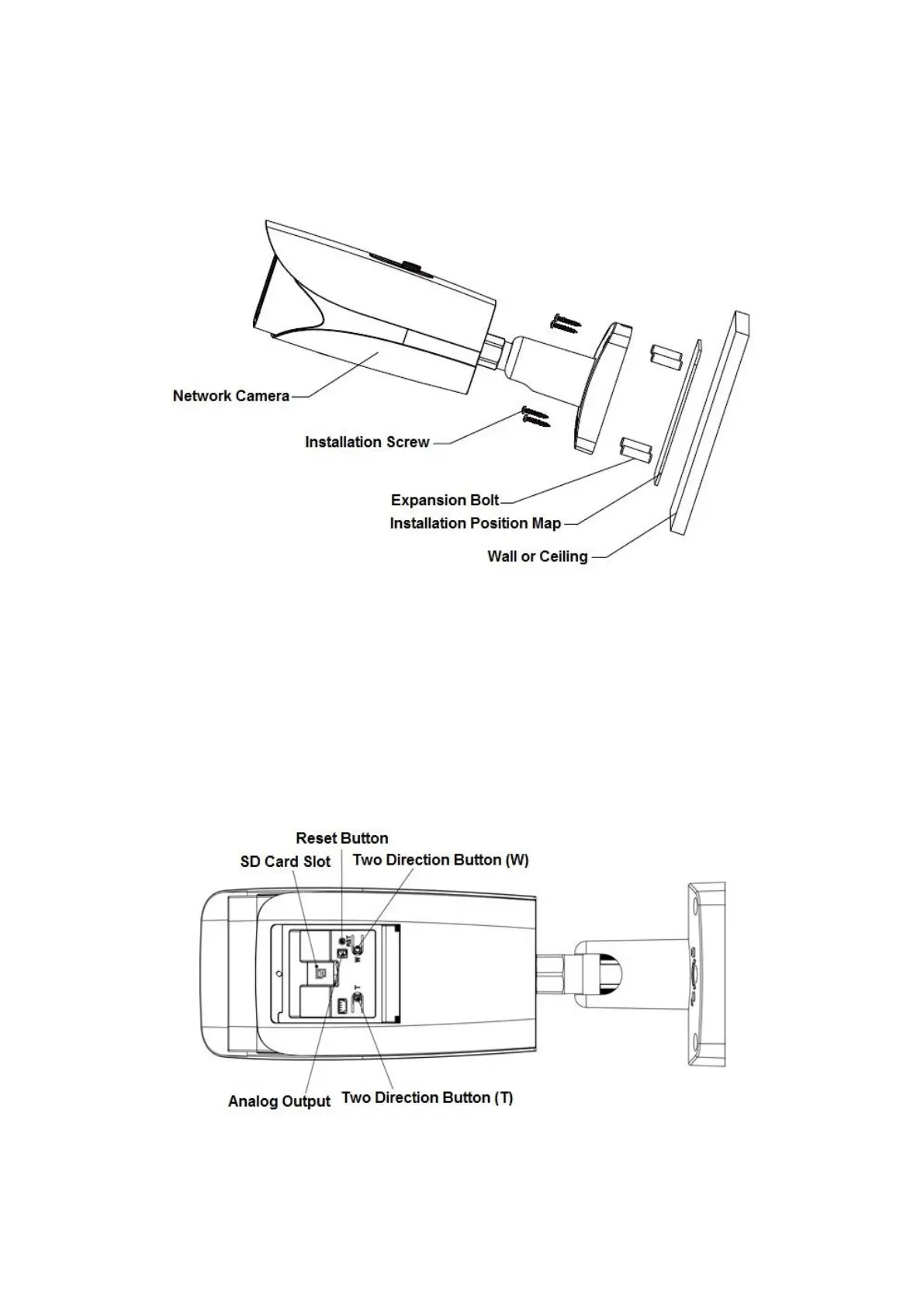

Figure 2-1
Please see Figure 2-1.
Step 1
SD card installation (Optional)
You can see the SD installation card slot, analog output, two direction button and reset
button after you open the lower cover.
Insert the SD card into the slot which is shown in Figure 2-2, you can press the SD card
slightly to insert it because the card slot is elastic.
Figure 2-2
