5
3 NVR Components
Check the label on the bottom of the NVR and note the model number and the power requirements
for this NVR. The label on the rear panel lists the serial number for the NVR. Please provide this serial
number when requesting information or service for this device.

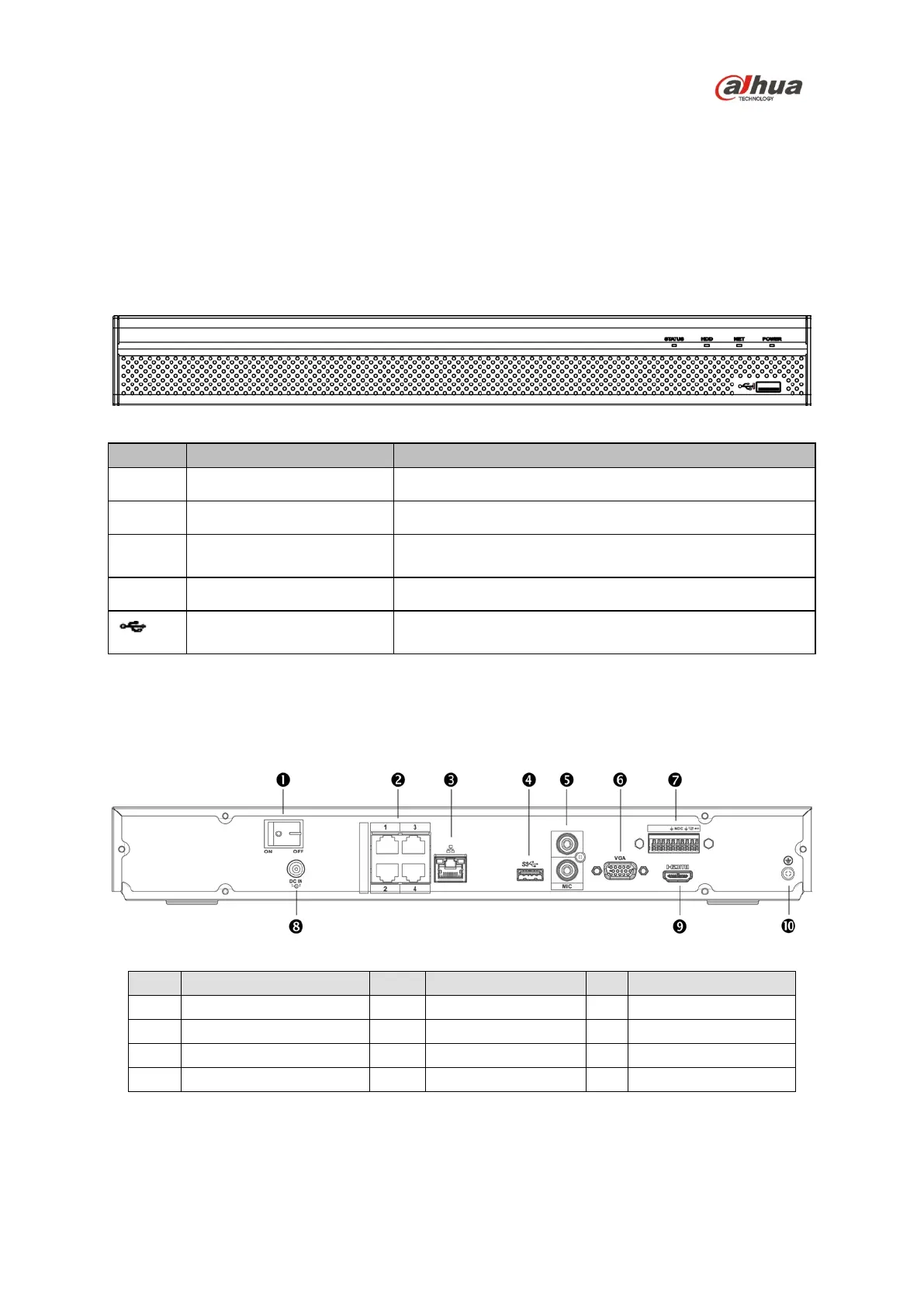

3.1 Front Panel
The figure below depicts the NVR front panel.
Figure 3-1
Light
Name
Function
STATUS A blue light indicates the device is operating normally.
HDD HDD status indicator A blue light indicates that the HDD is malfunctioning.
NET Network status indicator
A blue light indicates that the network connection is
abnormal.
POWER Power status indicator A blue light indicates that the power connection is OK.
USB 2.0 port
Connect to a peripheral USB 3.0 device (storage mouse,
CD/DVD burner).
3.2 Rear Panel
The figure below depicts the NVR rear panel for the 4-, 8-, and 16-channel units (image for reference
only).
N42B1P
Figure 3-2
Ref
Name
Ref
Name
Name
1
On/Off Button
5
Audio Input/Output
HDMI Output
2
PoE Ports (x 4)
6
VGA Output
Ground
3
RJ45 Port (1000 M)
7
Alarm Input/Output
4
USB 2.0 Port
8
DC12V Input
