6
N42B2P

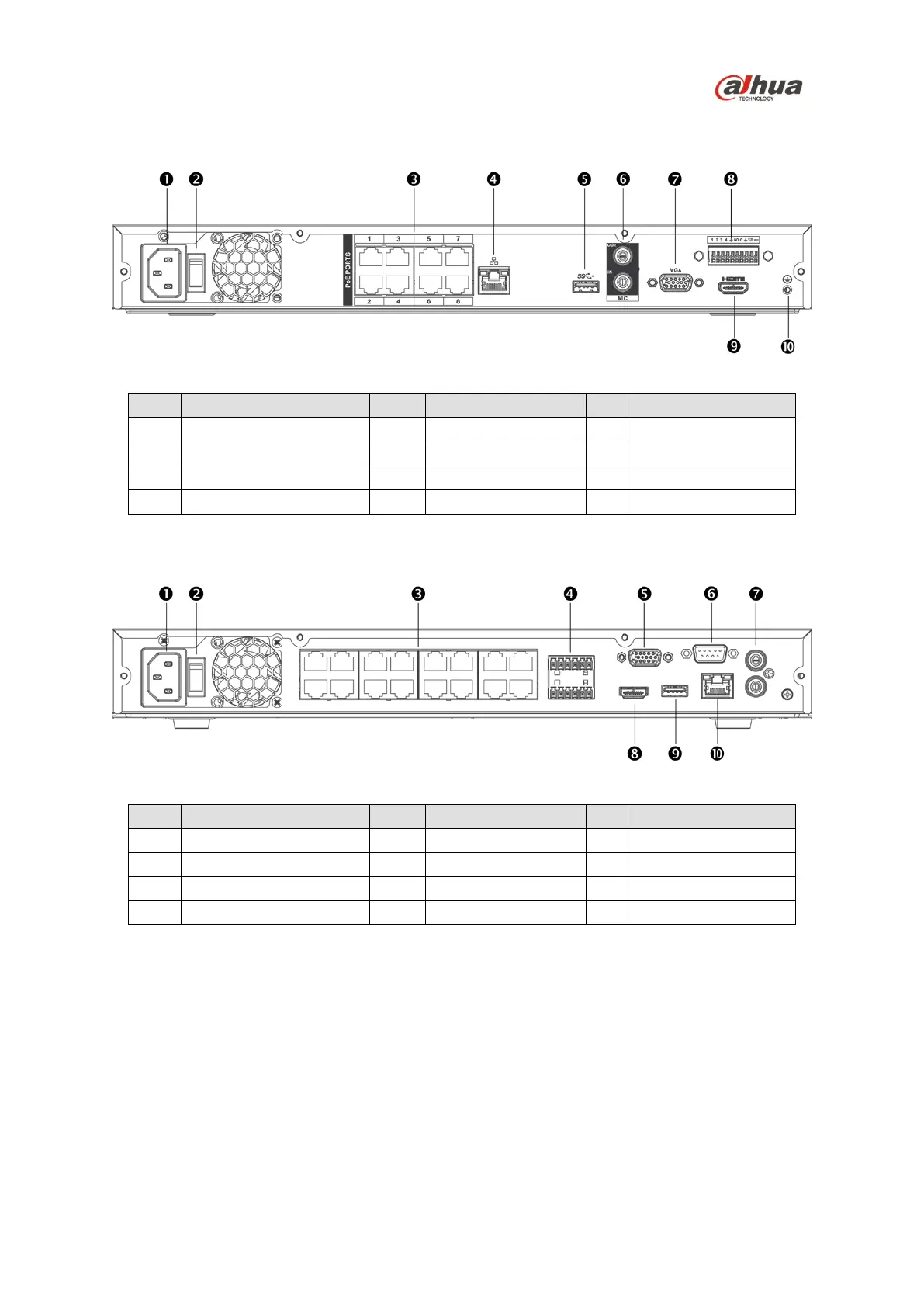

Figure 3-3
Ref
Name
Ref
Name
Name
1
Power Input
5
USB 2.0 Port
HDMI Output
2
On/Off Button
6
Audio Input/Output
Ground
3
PoE Ports (x 8)
7
VGA Output
4
RJ45 Port (1000 M)
8
Alarm Input/Output
N42B3P
Figure 3-4
Ref
Name
Ref
Name
Name
1
Power Input
5
VGA Output
USB 2.0 Port
2
On/Off Button
6
RS232 Port
RJ45 Port (1000 M)
3
PoE Ports (x 16)
7
Audio Input/Output
4
Alarm Input/Output
8
HDMI Output
