User’s Manual
11

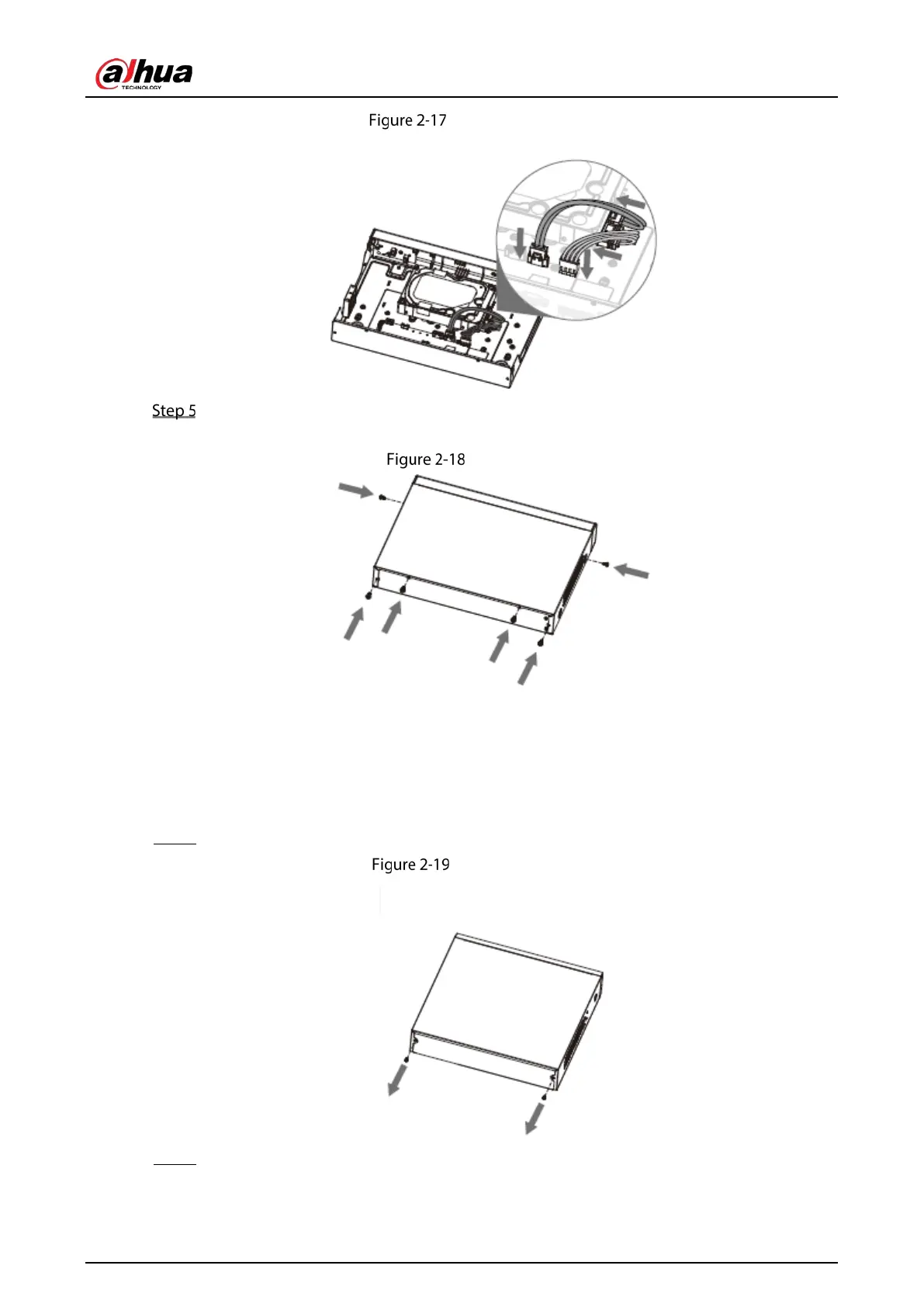

Connect cables
Put the cover in accordance with the clip and then fix the screws on the rear panel and side
panel.
Fix screws
2.2.4 DH-XVR1B04/DH-XVR1B04H/DH-XVR1B08/DH-XVR1B08H/DH-
XVR1B16/DH-XVR1B16H/DH-XVR1B04-V2/DH-XVR1B08-V2
Step 1 Loosen the screws of the upper cover.
Loosen screws
Step 2 Remove the cover in the direction of the arrow as shown in the figure below.
