Dahua DH-IPC-HDW8341X-3D Series

DH Network Camera
Product Construction Instruction Manual (Passenger Flow Solution)
12
mind, an arming specification list is given as follows for reference:
An arming list of top-mounted 4140 stereo vision cameras factoring in top door edge
blocking
Segment (mm)
FOV (°)
Height range (m)
The horizontal distance between the camera and
the top door edge (m) when the latter is h(m)
2.1
84.3 *109.5
2.2＜H＜3.3
≧0.91h
2.8
64 *89
2.5≤H＜3.8
≧0.62h
Installation requirements
Top-mounting instructions:

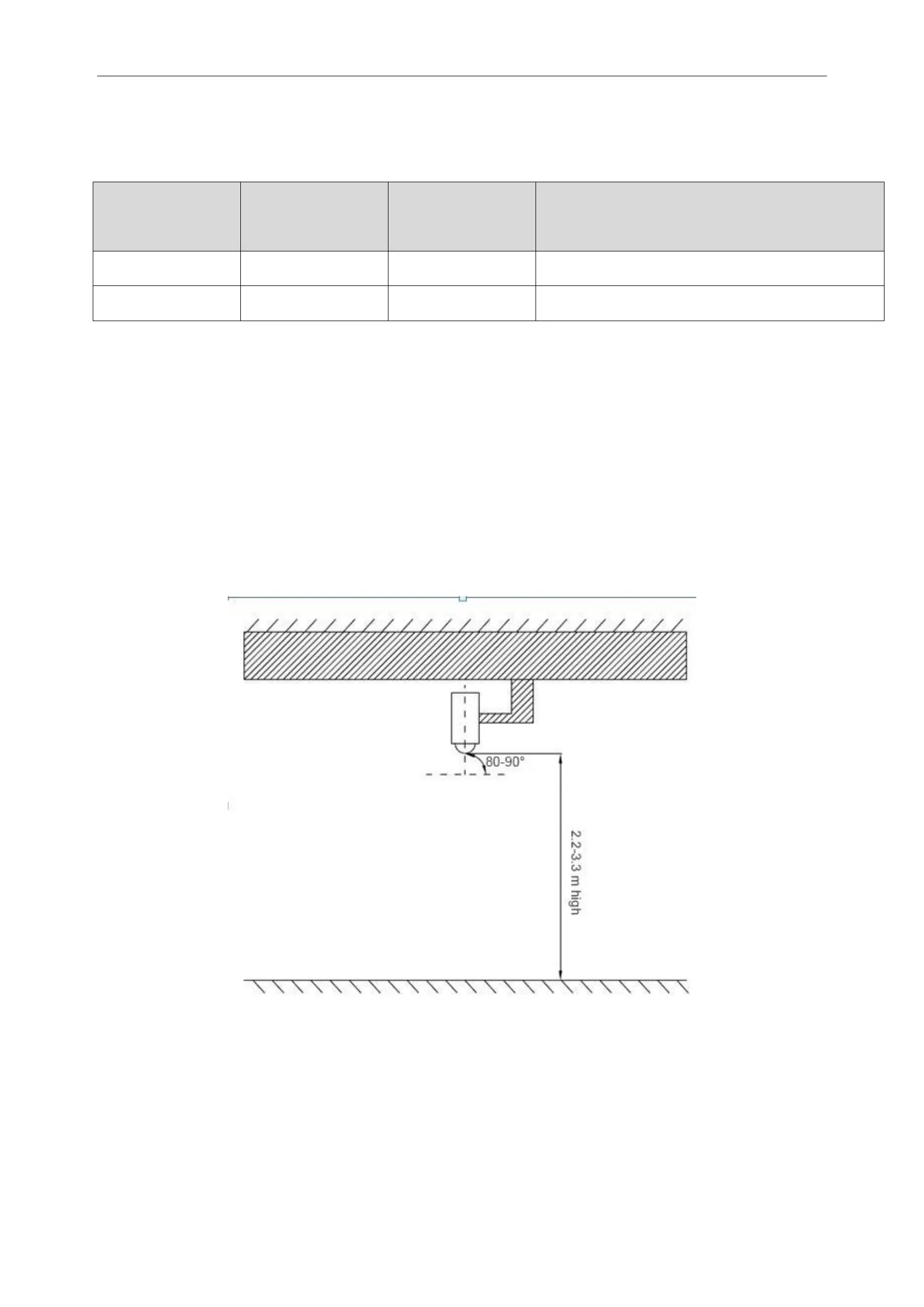

Figure 9 Top mounting of (DH) IPC-HD4140X-3D-0210B
Figure 10 Top mounting of (DH) IPC-HD4140X-3D-0280B
