Getting Started 6

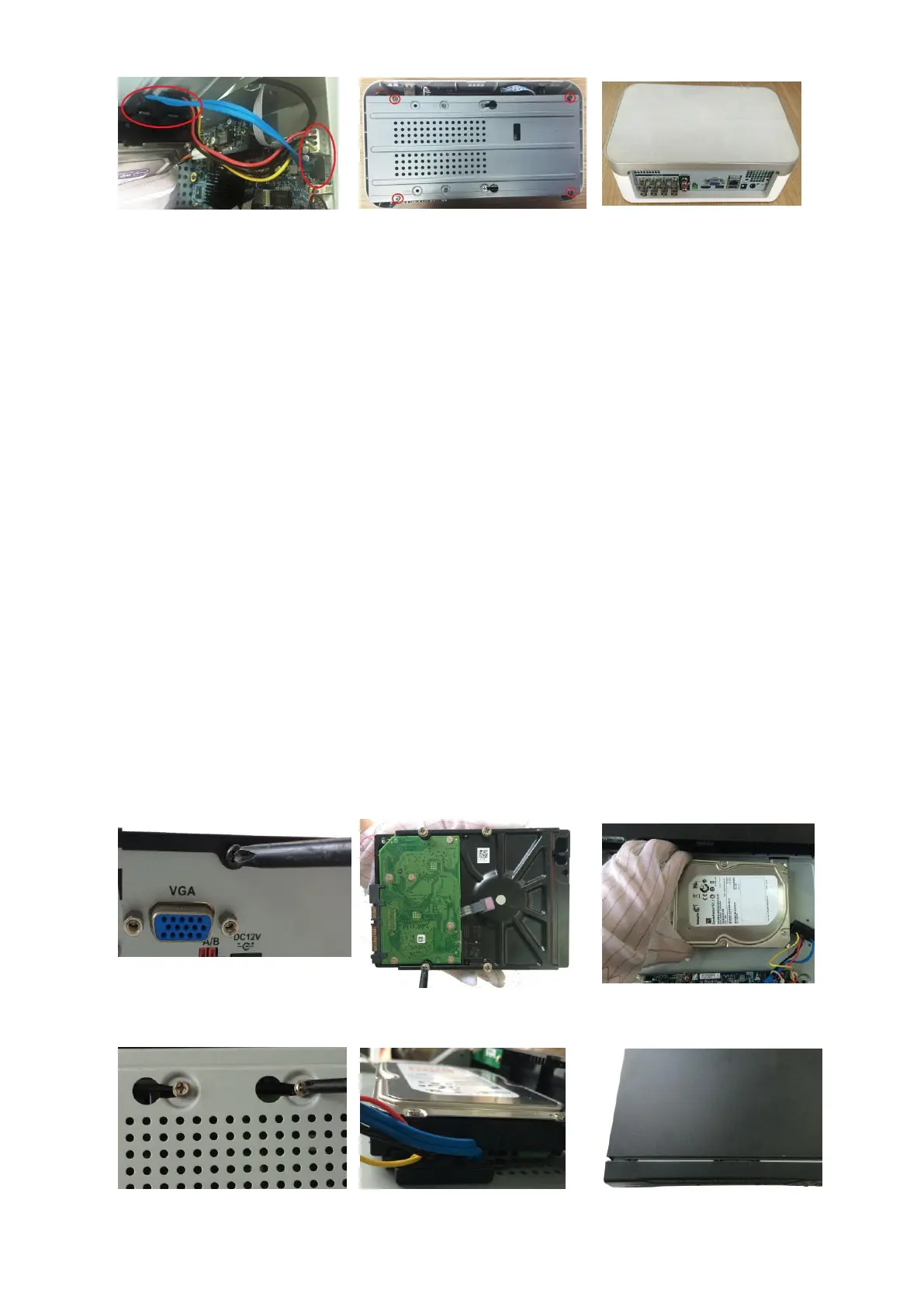

7. Use the HDD cable and
power cable to connect
HDD and mainboard.
8. Install the bracket back and
then fasten the screws.
9. Put back the cover and
fasten the screws.
2.2.3 DH-XVR4116HS-X/DH-XVR5108HS-X/DH-XVR5116HS-X/DH
-XVR5104HS-4KL-X/DH-XVR5108HS-4KL-X/
DH-XVR5108H-X/DH-XVR5116H-X/DH-XVR5104H-4KL-X/DH-XVR
5108H-4KL-X/DH-XVR5116H-4KL-X/DH-XVR5108HE-X/DH-XVR51
16HE-X/DH-XVR7104HE-4KL-X/DH-XVR7108HE-4KL-X/DH-XVR7
116HE-4KL-X/DH-XVR7108HE-4K-X/DH-XVR5104HS-X/
DH-XVR4104HS-X/DH-XVR5104H-X/DH-XVR5104HE-X/DH-XVR4
108HS-X/DH-XVR5104HS-X1/DH-XVR4104HS-X1/
DH-XVR4108HS-X1/DH-XVR5104H-X1/DH-XVR5104HE-X1/DH-X
VR5104H-X-4P/DH-XVR5108H-X-8P
1. Remove the screws on the
rear panel.
2. Fix the screws on the HDD,
but do not be fastened.
3. Place the HDD onto the
Device.
