7

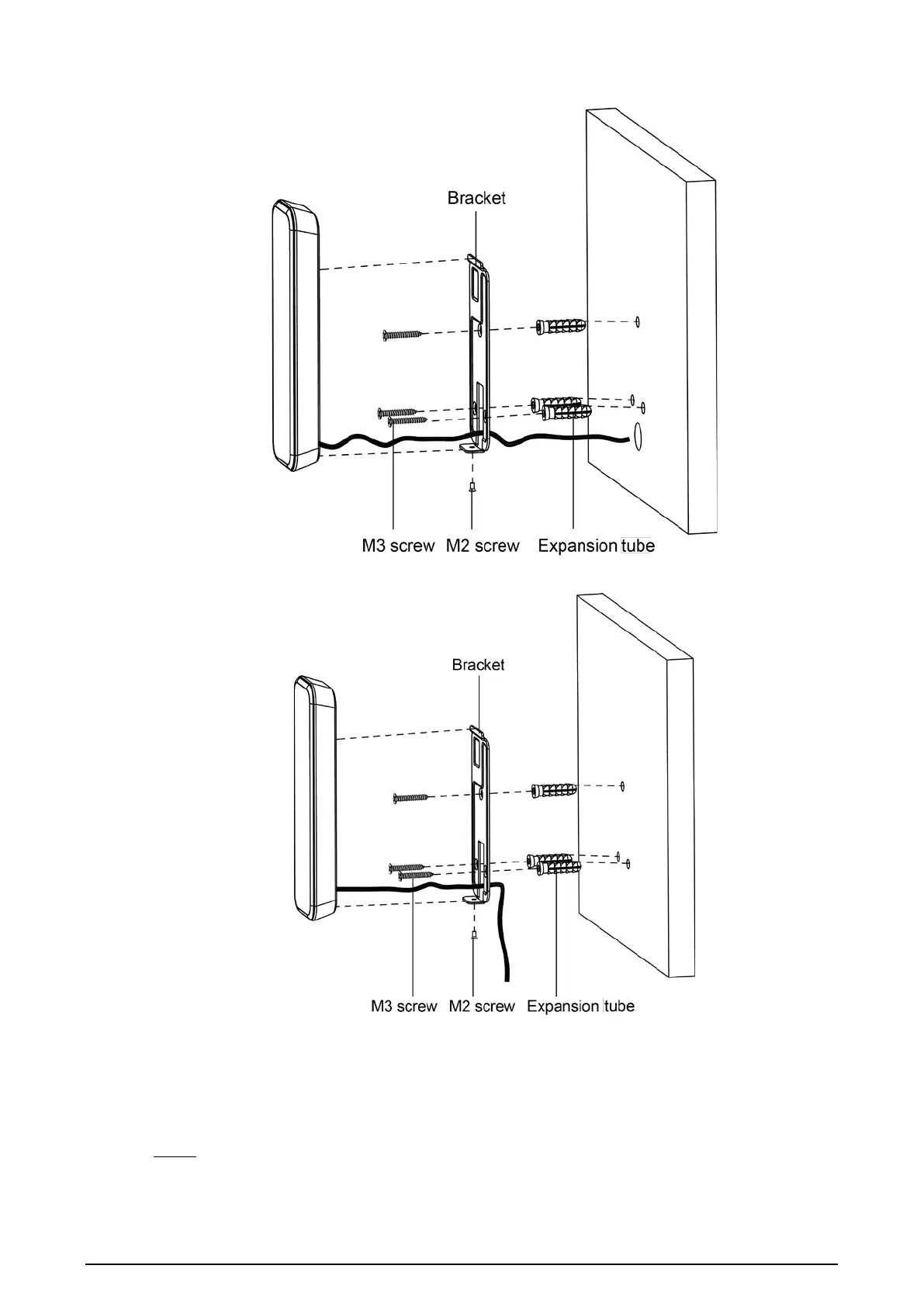

Figure 3-3 In-wall wiring
Figure 3-4 Surface mounted wiring
3.3 Installing the Fingerprint Model
Procedure
Step 1 Drill 4 holes and one cable outlet on the wall.
