User’s Manual
7

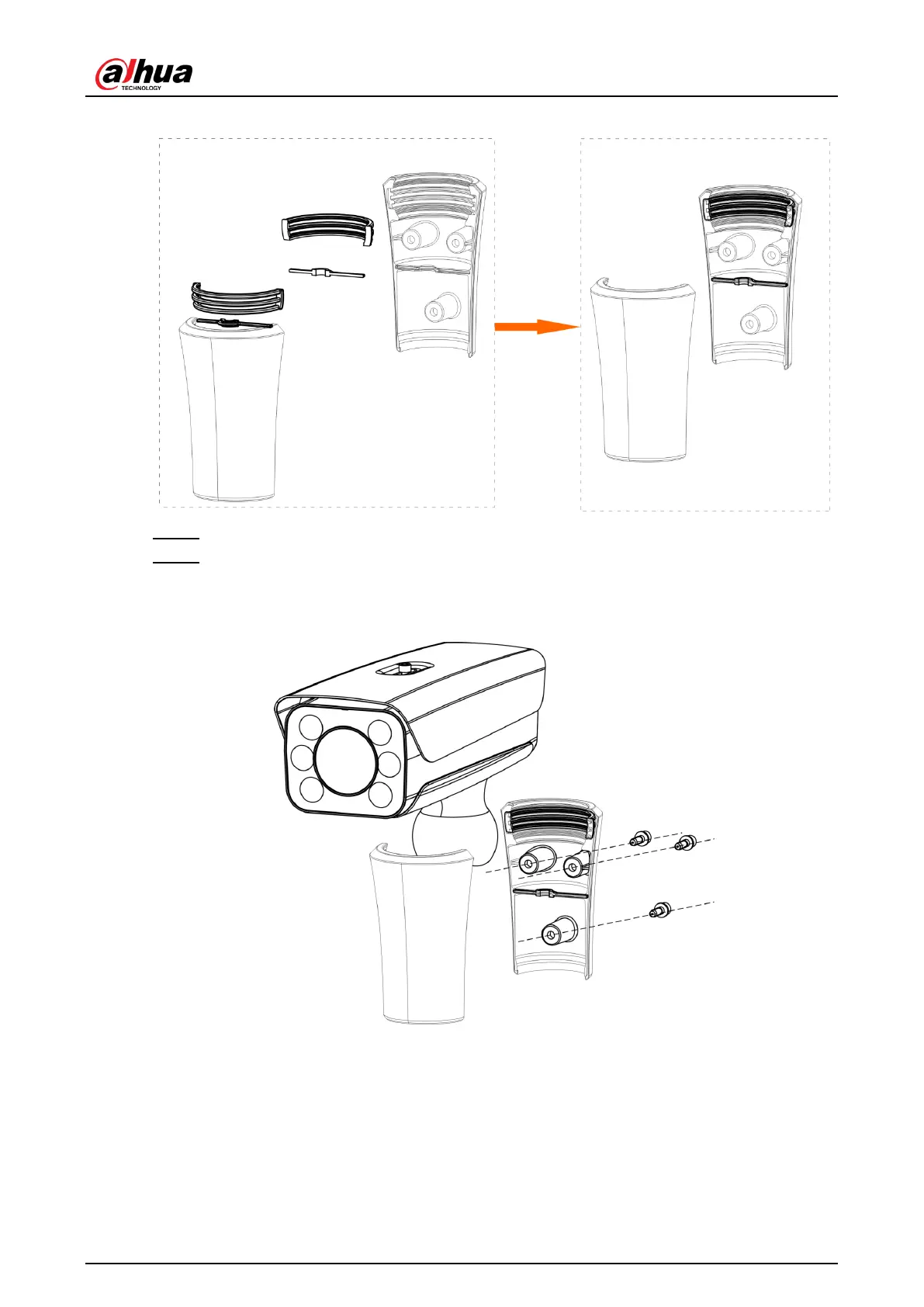

Figure 3-3 Prepare bracket housing
Step 2 Cover the spherical bracket with bracket housing.
Step 3 Use three M6×20 socket head cap screws to fix the bracket housing to the Camera.
See Figure 3-4.
For the illustration after installation, see Figure 3-5.
Figure 3-4 Fix the bracket housing
