Dahua DHI-ITC413-PW4D-IZ3 User Manual

Installation and Configuration Manual
4
 The distance between the exit barrier gate and the exit camera is 400 mm.
 The distance between the exit camera and the guard booth side is 1100 mm.
 The guard booth diameter is 1500 mm.
 The distance between the entrance camera and the guard booth side is 1100 mm
 The distance between the entrance camera and the entrance barrier gate is 400 mm.
 The distance between the capture line and the entrance/exit camera is 4000 mm.
 Standard lane width: <4000 mm

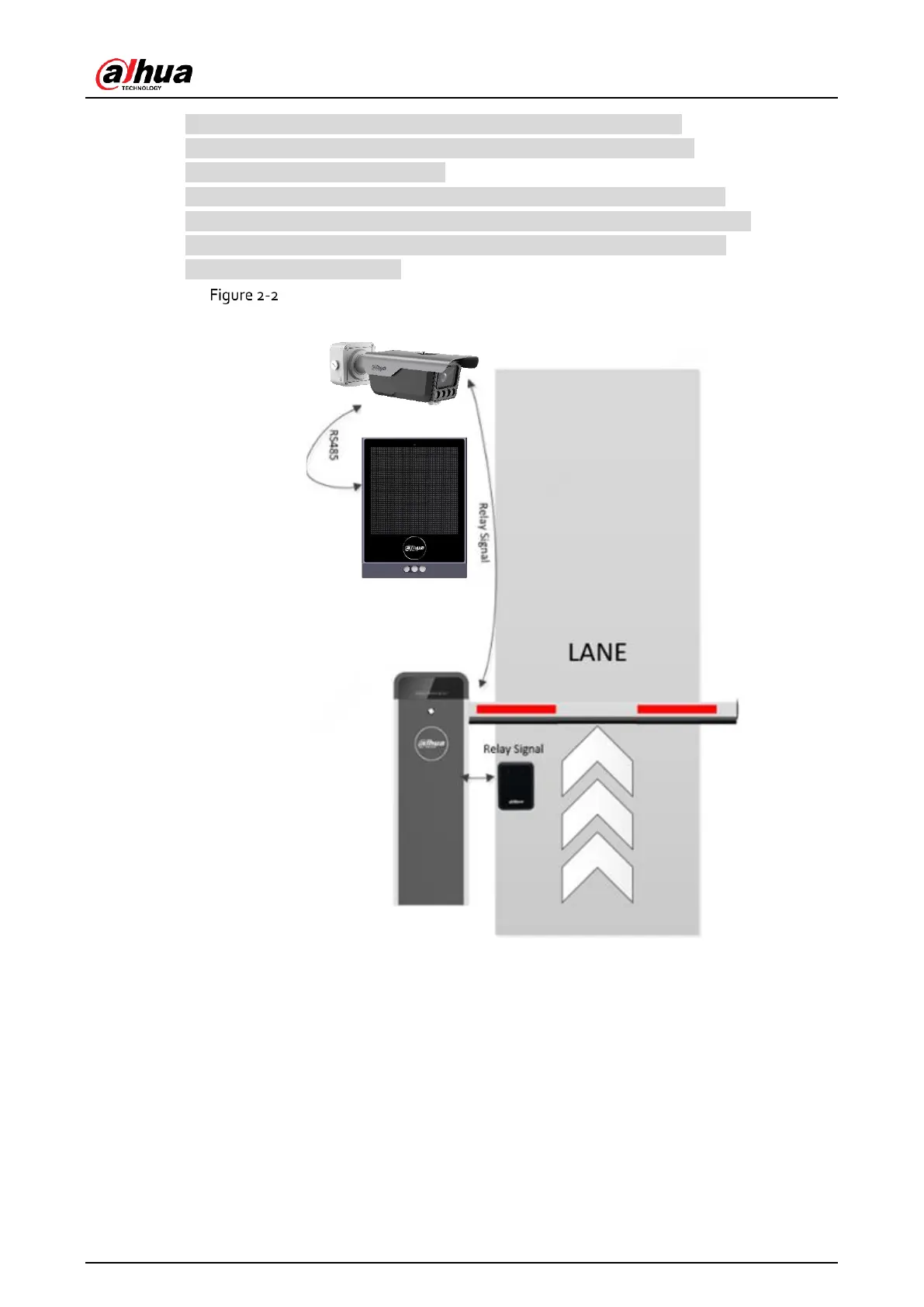

Wiring diagram of a single camera in one entrance/exit scenarios
