Hold rotating bracket on both sides with hand, horizontally rotate bracket, adjusting lens horizontal
direction to designated position. Loosen two hand screws on both sides of fixed rotating bracket.
(Loosen only, do not take it down), hold the camera module body with hand, making lens rotate
vertically. Adjust vertical direction of lens to appropriate angle, and fasten the M2 screw. Range of lens:
vertical (0°～+75°), horizontal (0°～+355°). See Figure 2-2.

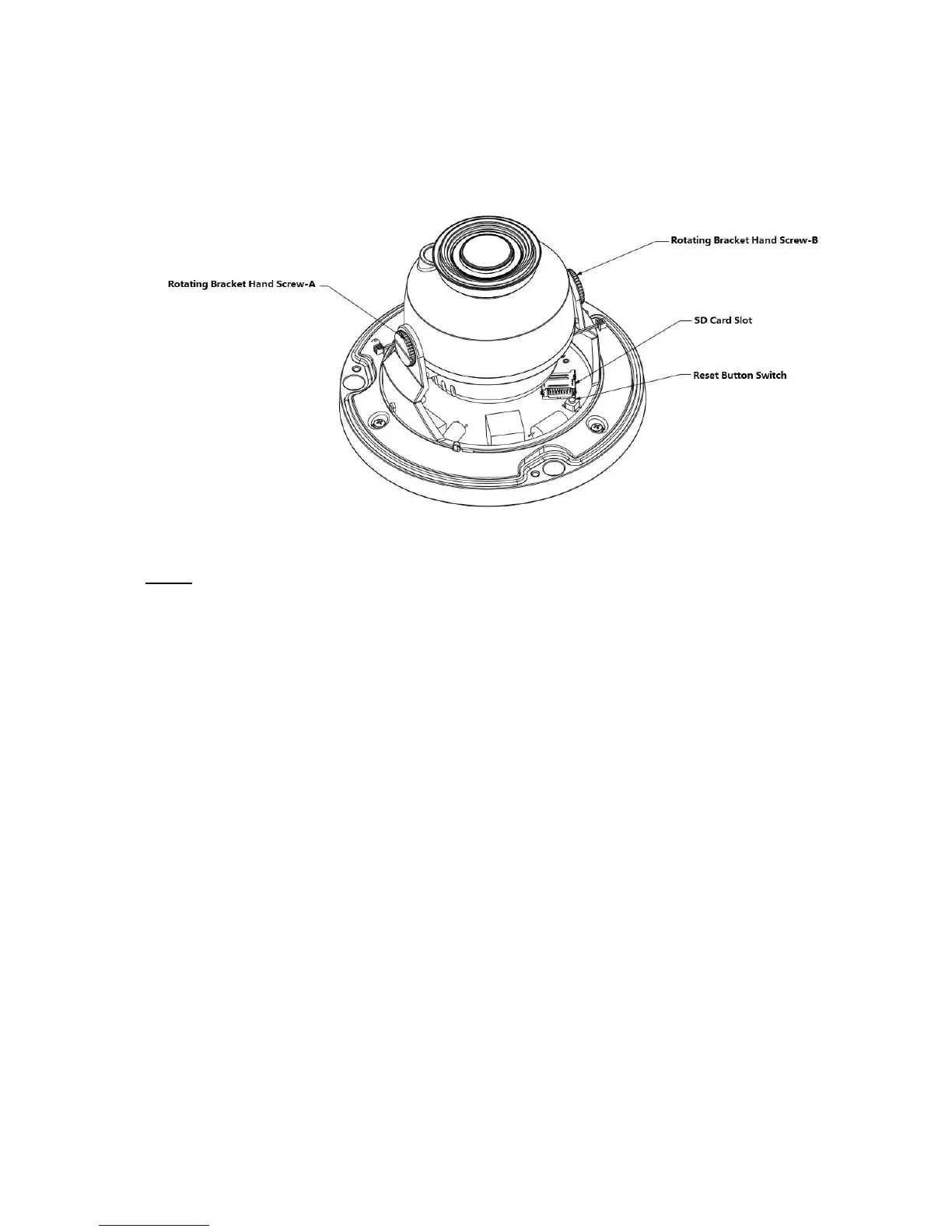

Figure 2-2
Step 6
Take dome enclosure, put it back on the camera properly regarding to screw and hole, and fasten the
three inner hex screws with wrench.
2.2 Micro SD Card Installation
Note:
Some series products do not support the Micro SD card storage function. Please shut down the power
and then turn off the device before you install the Micro SD card.
Step 1 Find the Micro SD Card slot in figure 2-2, open the Micro SD Card slot according to the
direction in figure 2-3.
Step 2 Adjust the Micro SD Card to proper direction and install it in the Micro SD card slot.
Step 3 According to the direction in figure 2-4, close the Micro SD card slot and keep it locked.
