Dahua HD IR Vari-focal Dome Network Camera Quick Start Guide
Pull the network cable without crystal head through main body of waterproof connector, fixing rubber
ring and waterproof locking cover, make the crystal head of network cable, and then insert it into the
network cable.
Step 3
Put the main body of waterproof connector on the network port and rotate it clockwise to lock the
network port and waterproof connector firmly.
Step 4
Put the waterproof locking cover on the main body of waterproof connector and rotate it clockwise to
lock the waterproof connector and waterproof locking cover firmly.
2.4 Adjust Device Angle
Adjust Monitoring Direction

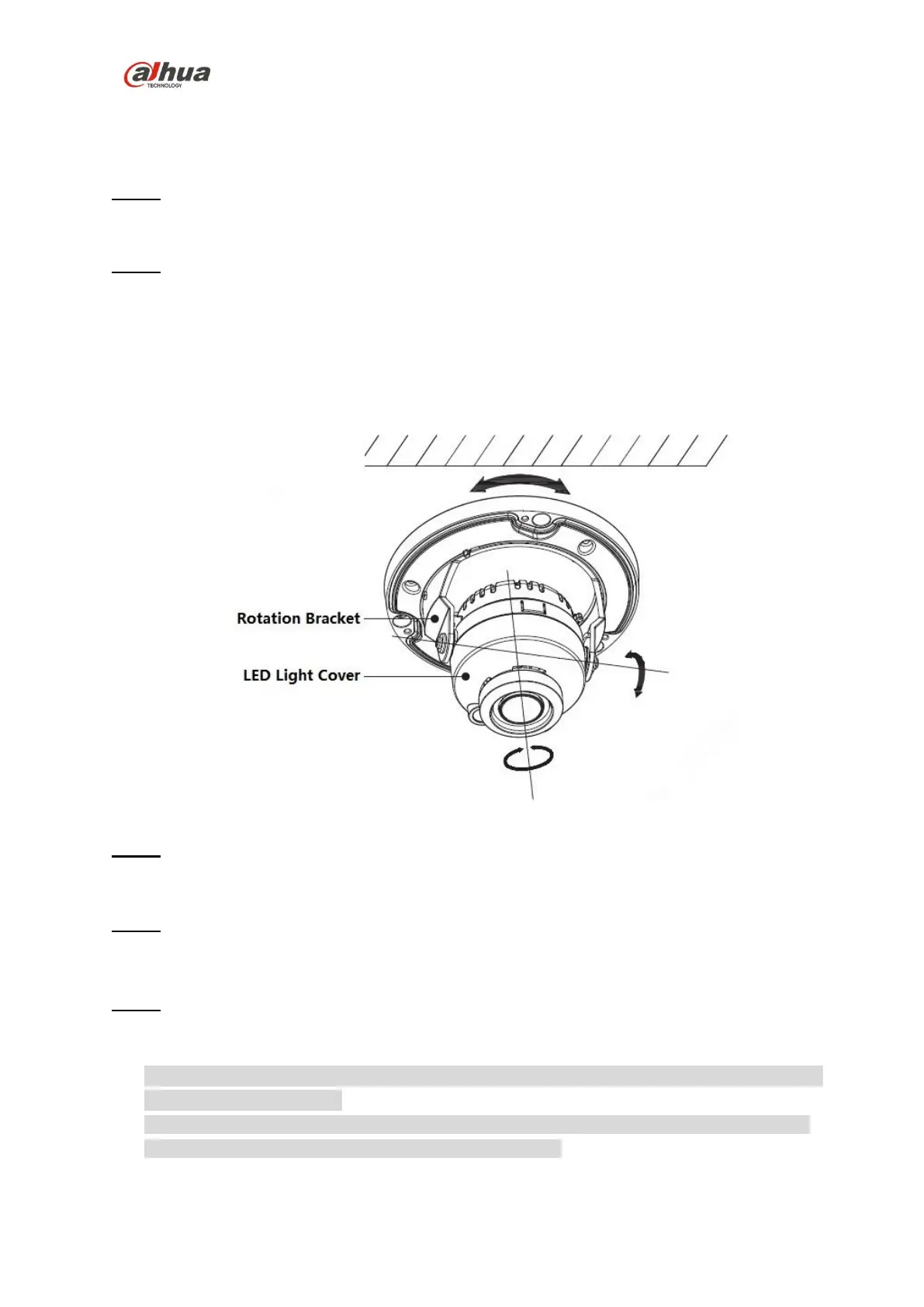

Figure 2-7
Step 1
Hold the rotation bracket on both sides, turn the rotation bracket horizontally, and adjust the lens
direction horizontally to the targeted position.
Step 2
Hold the module dome body and make the lens rotate vertically. Adjust the lens monitoring image
vertically to proper monitoring angle.
Step 3
Hold the LED light cover and adjust image angle.
Note
Range of adjusting lens angle: vertical (0°～+75°), horizontal (0°～+355°), image rotation
direction （0°～+355°）.
Please be aware of the image rotation direction when it rotates the lens vertically, which is to
avoid outer cover blocking IR light and affect the IR result.
Adjust Manual Vari-focal Lens (Optional)
