Note
The range of angle adjustment for lens: horizontal rotation direction (0︒~ 360︒), vertical rotation
direction (0︒~ 90︒), image rotation direction (0︒~ +360︒).

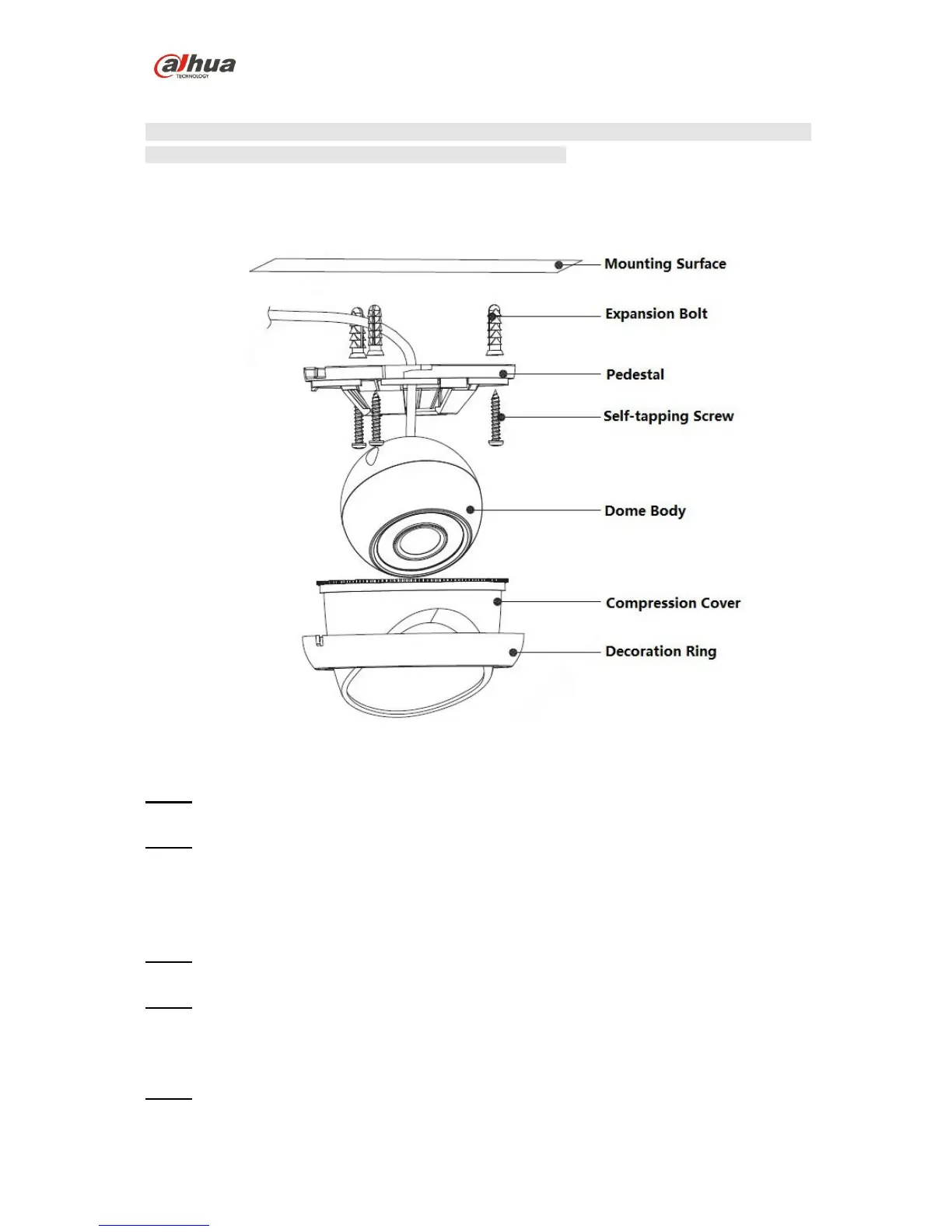

Figure 2- 2
Step 1
Turn the decoration ring clockwise out of the button placement and take it out.
Step 2
Take out the installation position map from the accessories bag, and stick it on the ceiling or wall and
other mounting surface according to the monitoring area. Dig holes on the ceiling or other mounting
surface according to the hole sites marked on the position map and then insert plastic expansion bolts
into the holes, secure them firmly.
Step 3
Lead out the device cable via cable slot.
Step 4
Adjust the device pedestal to a proper position and line up the screw holes on the device pedestal to
the fixing holes of plastic expansion bolt holes, and then twist the self-tapping screws into the plastic
expansion bolts and fix them firmly.
Step 5
Move the compression cover to make it stuck on the pedestal, adjust the camera to proper monitoring
location via rotating compression cover and dome body.
