Note
The range of angle adjustment for lens: horizontal rotation direction (0︒~ 360︒), vertical rotation
direction (0︒~ 90︒), image rotation direction (0︒~ +360︒).
Step 6
Align the decoration ring with the gap on the pedestal and rotate it clockwise into the pedestal, it is well
installed when you hear the “click” sound.
It is to connect device power cable and network cable.
Note
It needs to implement the operation when the device is equipped with waterproof connector and it is
used outdoors.

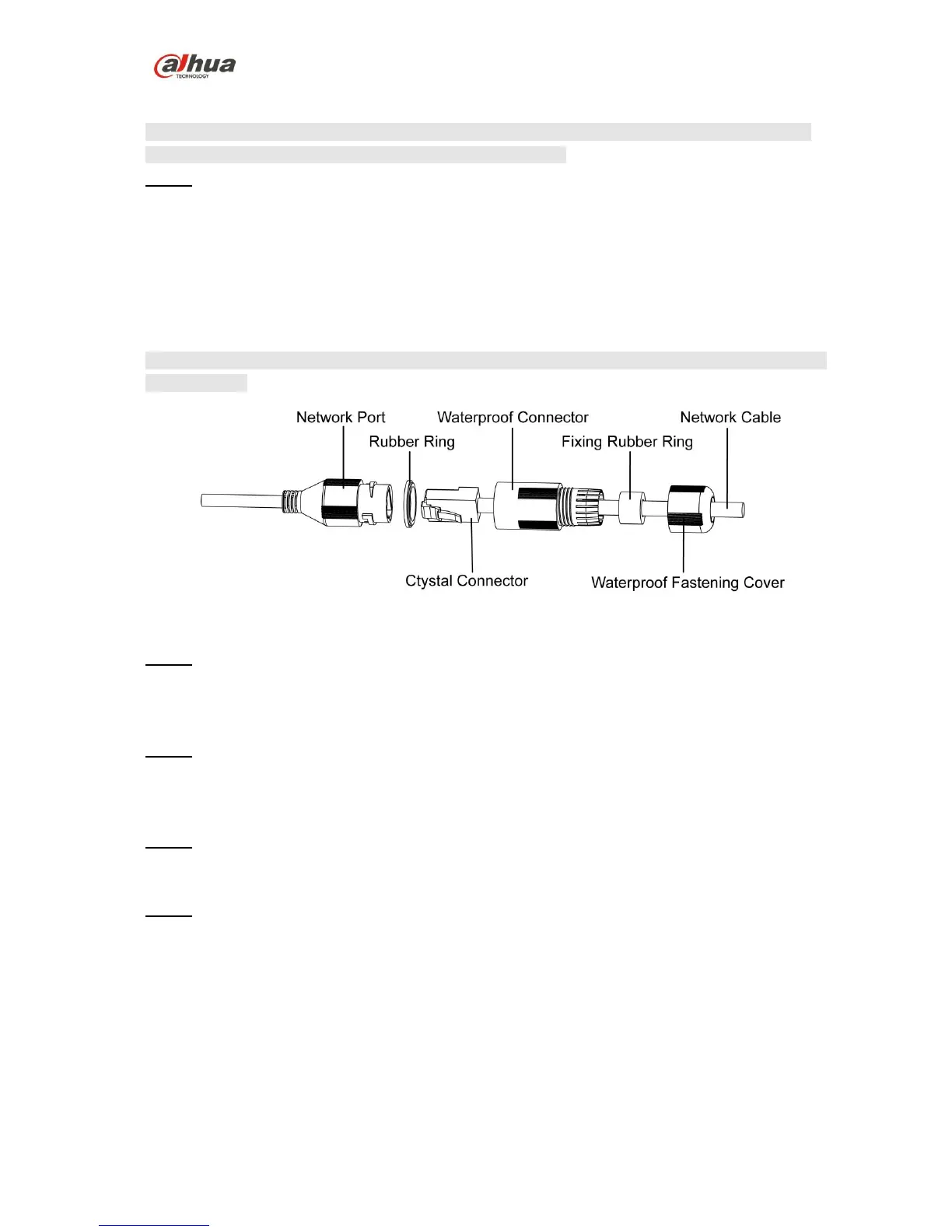

Figure 2- 3
Step 1
Keep the convex groove outward and install the rubber ring into the network port, keep the smaller
hole of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof
connector.
Step 2
Pull the network cable without crystal head through main body of waterproof connector, fixing rubber
ring and waterproof locking cover, make the crystal head of network cable, and then insert it into the
network cable.
Step 3
Put the main body of waterproof connector on the network port and rotate it clockwise to lock the
network port and waterproof connector firmly.
Step 4
Put the waterproof locking cover on the main body of waterproof connector and rotate it clockwise to
lock the waterproof connector and waterproof locking cover firmly.
