Dahua IPC-HDW1230S User Manual

Dahua HD IR Waterproof Eyeball Network Camera Quick Start Guide
1
1 Device Structure
1.1 Device External Cable
Note
 The following figure is just for reference for you to know each structure component and the
functions of cable ports.
 There are differences on structure components and cables among different product models,
please refer to the actual object for more details.

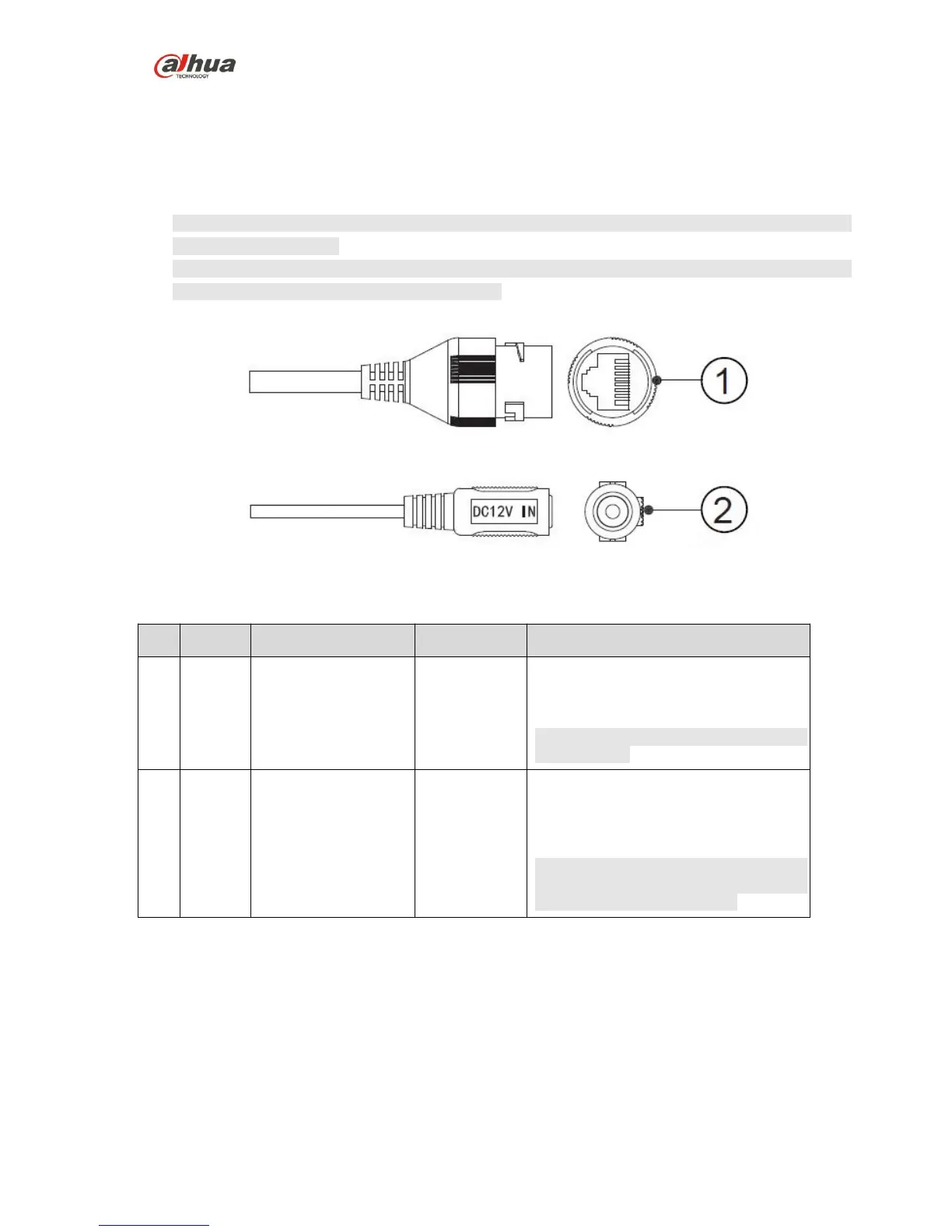

Refer to Figure 1- 1 for external cable.
Figure 1- 1
Refer to the Table 1- 1 for detailed information about ports.
No.
Port
Port Name
Connector
Function Description
1
LAN
Network port
Ethernet port
Connect to standard Ethernet cable,
support PoE power supply function.
Note
Some devices do not support PoE
power supply.
2
DC12V
Power input port
-
Connect to DC 12V power; please be
sure to power the device according to
the instruction of device label.
Caution
It may cause damage to the device if it
fails to power the device according to
the instruction of device label.
Table 1- 1
1.2 Dimensions
The following figures show dimension information for the Metal eyeball and Plastic eyeball respectively.
The unit is mm (inch).

Dahua IPC-HDW1230S Specifications

General

Brand	Dahua
Model	IPC-HDW1230S
Category	Security Camera
Language	English
