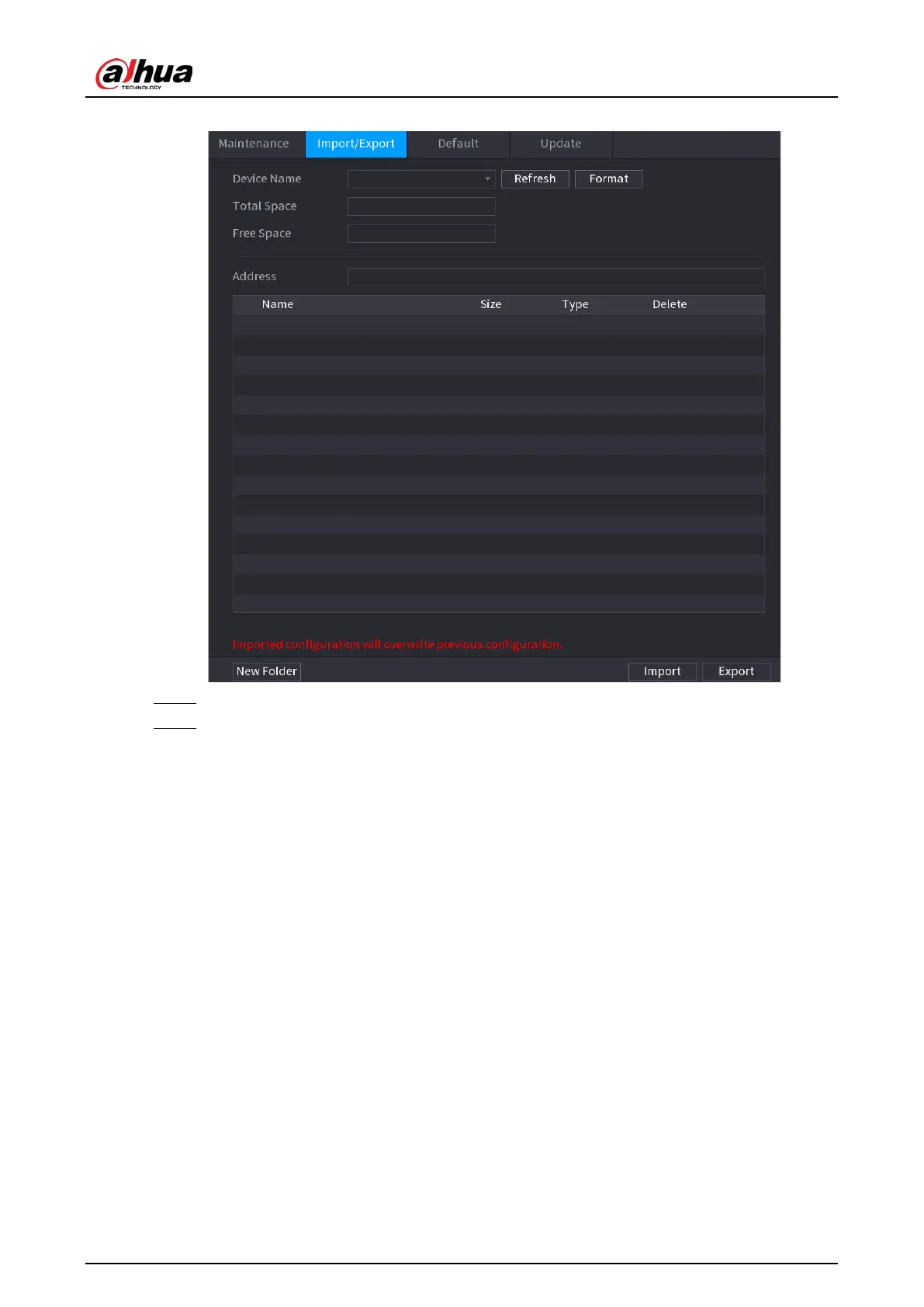

Figure 5-321 Import and export

Step 2 Insert a USB storage device into one of the USB ports on the Device.

Step 3 Click

Refresh

to refresh the page.

The connected USB storage device is displayed.
