119

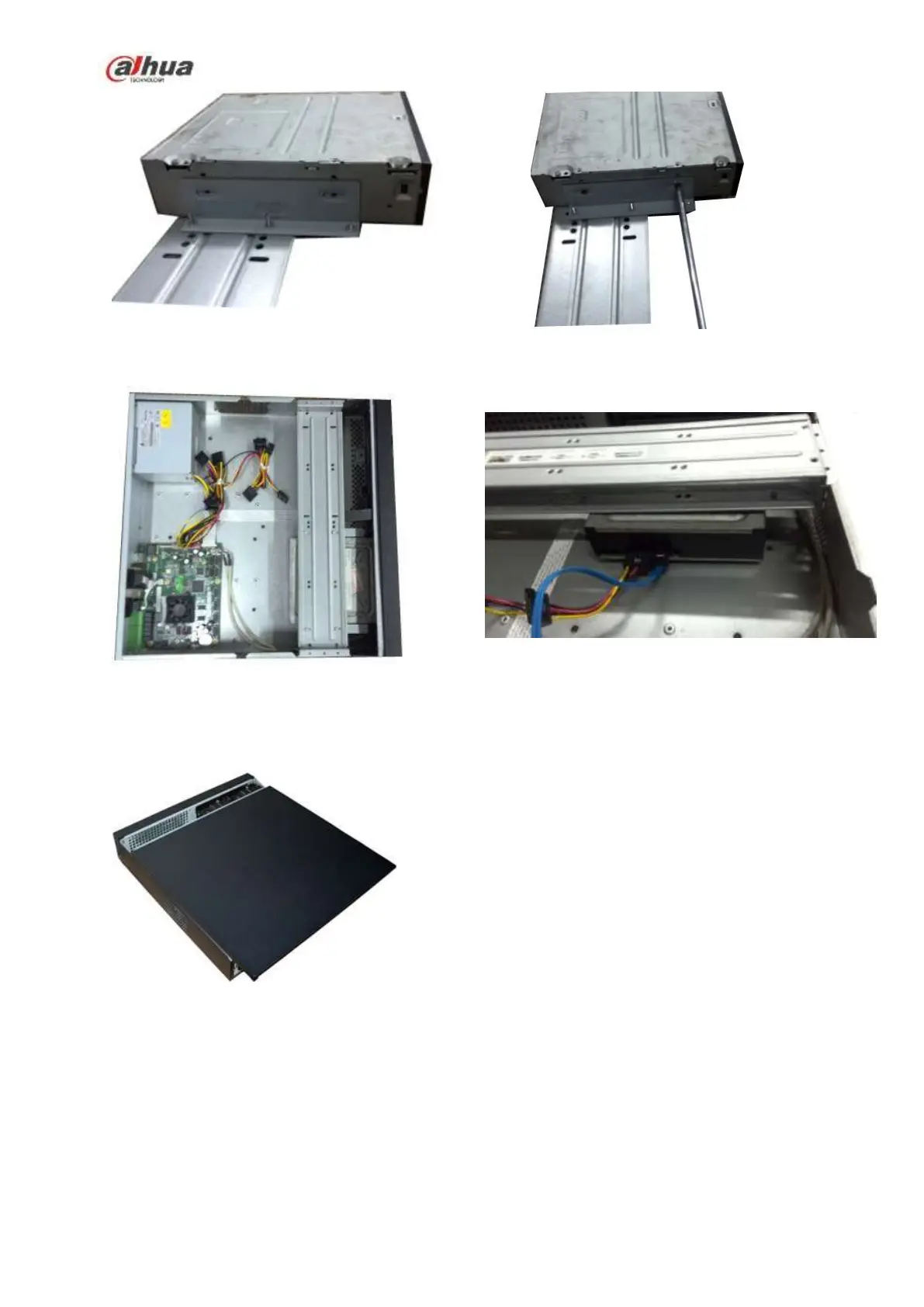

⑤ Install SATA burner. Line up the SATA
burner to the hole positions.
⑥ User screwdriver to fix the screws.
⑦ Put the bracket back. Please adjust the
CD-ROM to the proper position so that
the button of the front panel is directly
facing the pop-up button of the CD-ROM.
⑧ Connect the SATA cable and power wire.
⑨ Secure the HDD bracket and put the top
cover back.
3.6 Connection Sample
3.6.1 NVR41/41-P/41-8P/41-W/21-S2/21-P-S2/21-8P-S2/41-4KS2/41-P-4KS2/41-8P-4KS
2/1A-4P/1A-8P/21-4KS2/21-P-4KS2/21-8P-4KS2 Series
Please refer to Figure 3-1 for connection sample.
The following figure for reference only.
