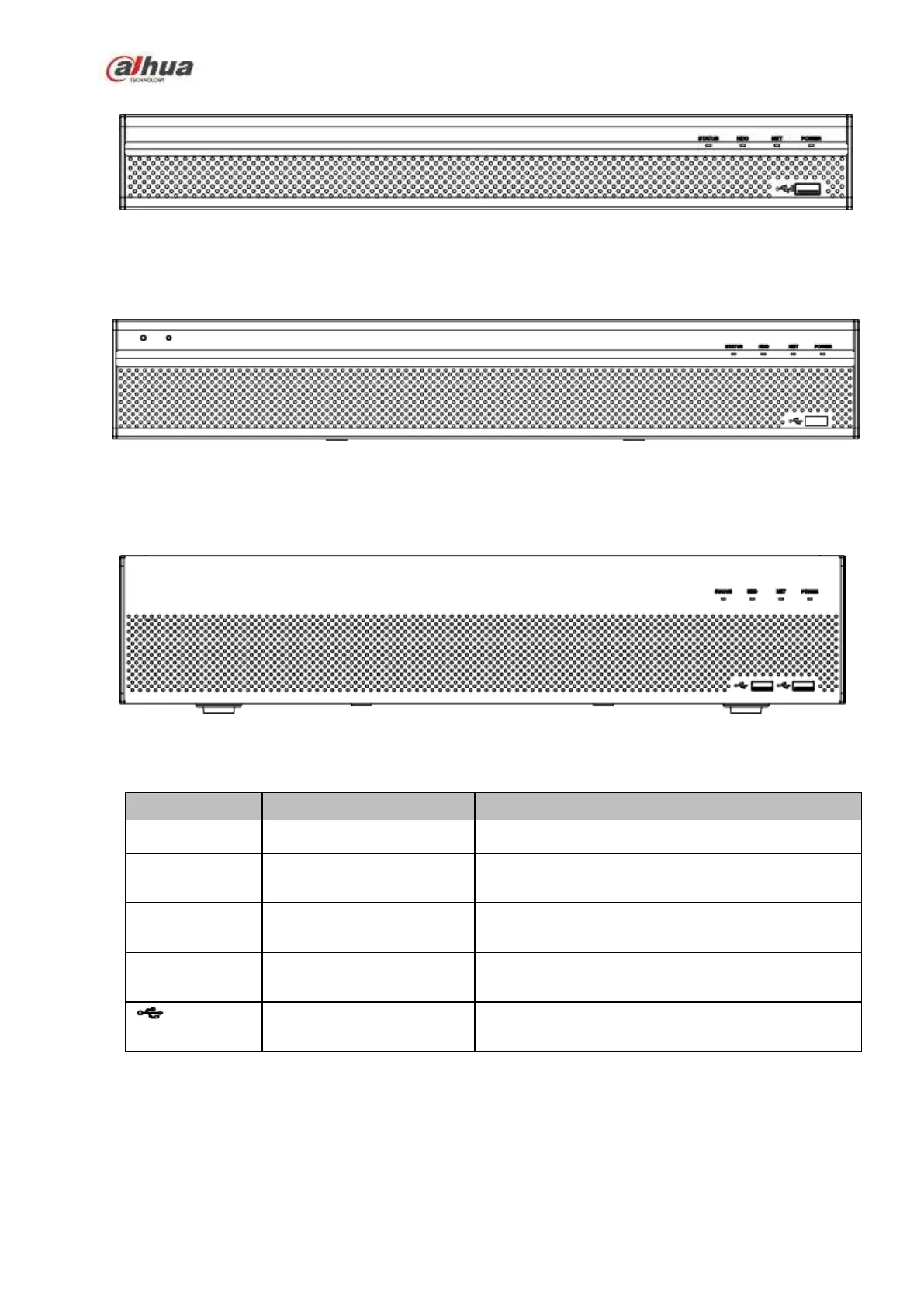

ies front panel is shown as in Figure 2-7.
Figure 2-7
The NVR54-4KS2/54-16P-4KS2/44-4KS2/44-16P-4KS2/5424-24P-4KS2/54-16P-4KS2E series front
panel is shown as in Figure 2-8.
Figure 2-8
The NVR58-4KS2/58-16P-4KS2/48-4KS2/48-16P-4KS2/58-16P-4KS2E series front panel is shown as in
Figure 2-9.
Figure 2-9
Please refer to the following sheet for front panel button information.
The blue light is on when the device is malfunction.
HDD status indicator
light
The blue light is on when the HDD is malfunction.
Network status indicator
light
The blue light is on when the network connection is
abnormal.
Power status indicator light
The blue light is on when the power connection is
OK.
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.1.8 NVR44/44-8P/44-16P Series
The front panel is shown as in Figure 2-10.
