Dahua NVR41-P Series

115
3.4.2 NVR41H/41H-P/41H-8P/21HS-S2/21HS-P-S2/21HS-8P-S2/41HS-W-S2/41HS-4KS
2/41HS-P-4KS2/41HS-8P-4KS2/1AHS/1AHS-4P/1AHS-8P/21HS-4KS2/21HS-P-4K
S2/21HS-8P-4KS2 Series
○

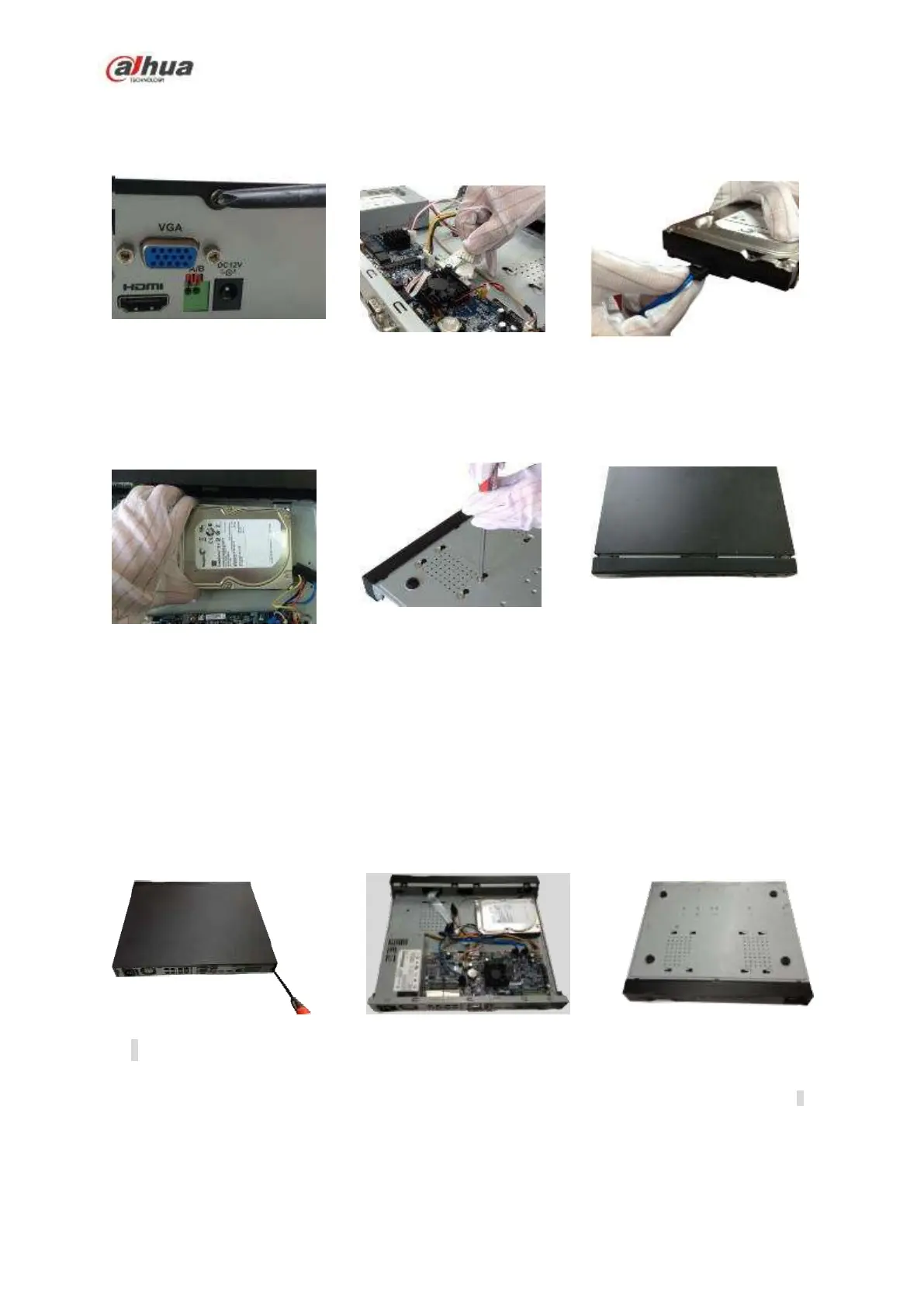

1 . Loosen the screws of the upper
cover and side panel.
○
2 Connect the one end of the
HDD data cable and the power
cable to the mainboard.
○
3 Connect the other end of the
HDD data cable and the power
cable to the HDD.
○
4 Place the HDD in accordance
with the four holes on the bottom of
the chassis.
○
5 Turn the device upside down;
fix the screws to secure the HDD
on the bottom of the chassis.
○
6 Put the cover in accordance
with the clip and then fix the
screws on the rear panel and side
panel.
3.4.3 NVR42/42N/42-P/42-8P/42-16P/42-4K/42-8P-4K/52-4KS2/52-8P-4KS2/52-16P-4K
S2/22-S2/22-P-S2/22-8P-S2/42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2/5224-
24P-4KS2/2A16/22-4KS2/22-P-4KS2/22-8P-4KS2/52-16P-4KS2E Series
○
1
Loosen the screws of the rear
panel and side panel.
②Place the HDD in accordance with
the four holes in the bottom.
③Turn the device upside down and
then secure the screws firmly. It is to
fix the HDD on the chassis.
