2 Front Panel and Rear Panel
2.1 Front Panel
2.1.1 NVR41/41-P/41-W/21-S2/21-P-S2/21-8P-S2/41-4KS2/41-P-4KS2/41-8P-4KS2/1A-4
P/1A-8P/21-4KS2/21-P-4KS2/21-8P-4KS2 Series

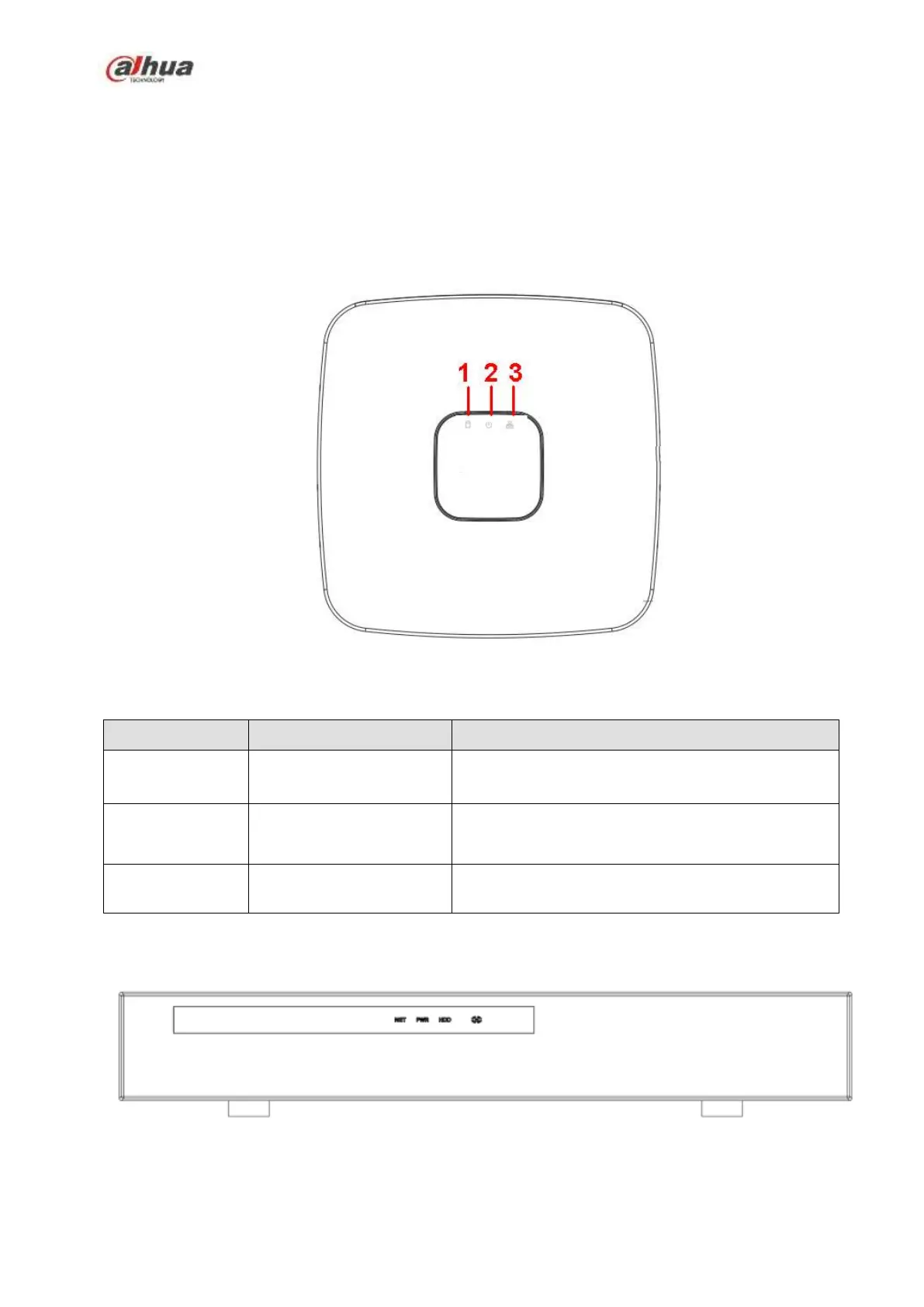

The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 NVR41H/41H-P/41H-8P Series
The front panel is shown as in Figure 2-2.
Figure 2-2
Please refer to the following sheet for detailed information.
