Dahua NVR4204-P-4KS2 - NVR44-4 K;48-4 K;54-4 KS2;54-16 P-4 KS2;58-4 KS2;58-16 P-4 KS2 Series; NVR44;44-8 P;44-16 P;44-4 KS2;44-16 P-4 KS2 Series

151
3.5.12 NVR44-4K/48-4K/54-4KS2/54-16P-4KS2/58-4KS2/58-16P-4KS2 Series

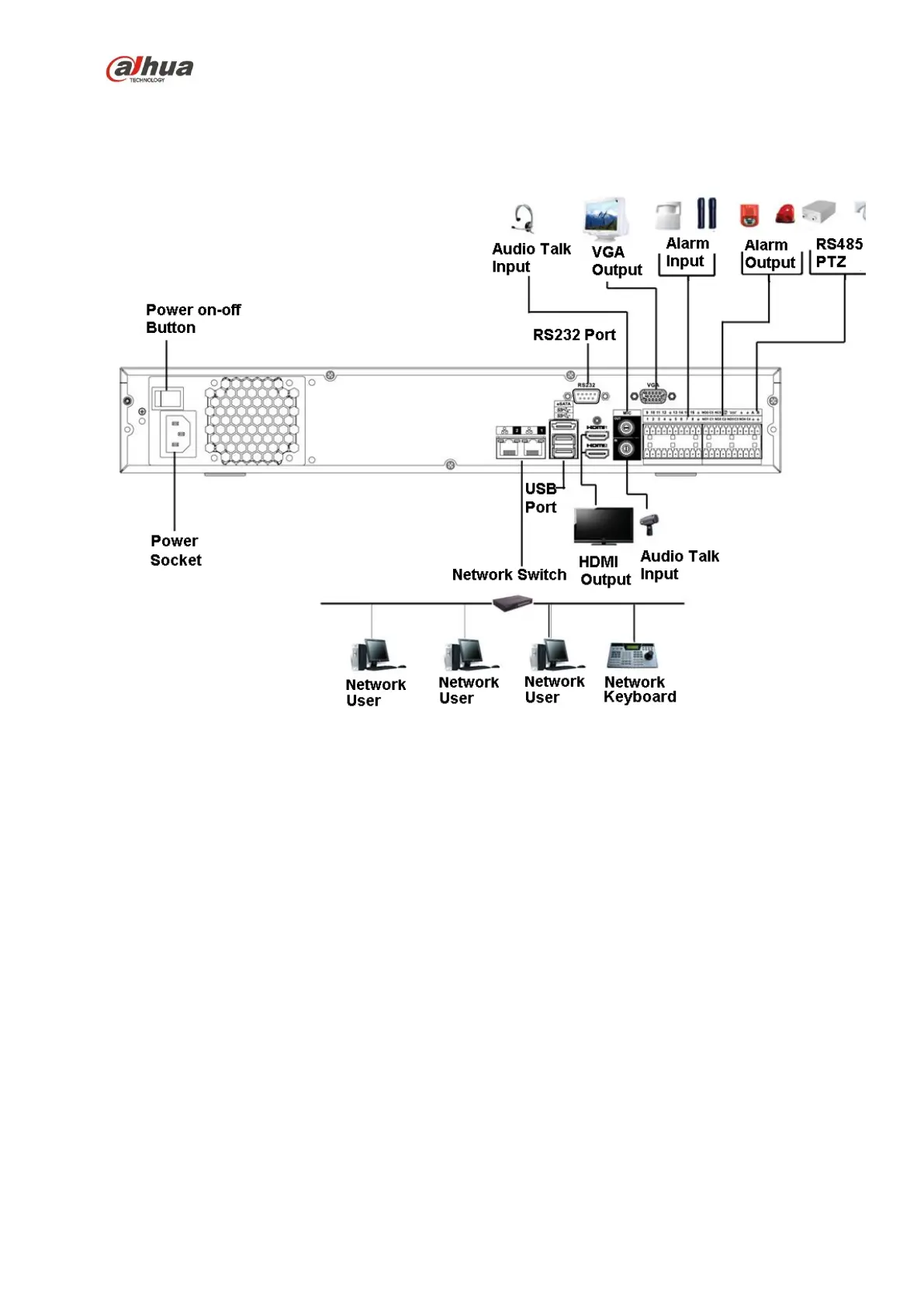

Please refer to Figure 3-11 for connection sample.
The following interface is based on the 44-4K series product.
Figure 3-12
3.5.13 NVR44/44-8P/44-16P/44-4KS2/44-16P-4KS2 Series
Please refer to Figure 3-13 for connection sample.
The following interface is based on the 44-8P series product.
