349
Check the Object box to enable object detect function.
Select SN (object1/2/3/4) and rule type, and then input customized rule name.
No. and Object1/2/3/4: System supports four zones. Each SN stands for one zone.
Rule type: Please select from the dropdown list. There are two types: Missing object
detect/abandoned object detect.
Period: It refers to the object in/out the zone time.

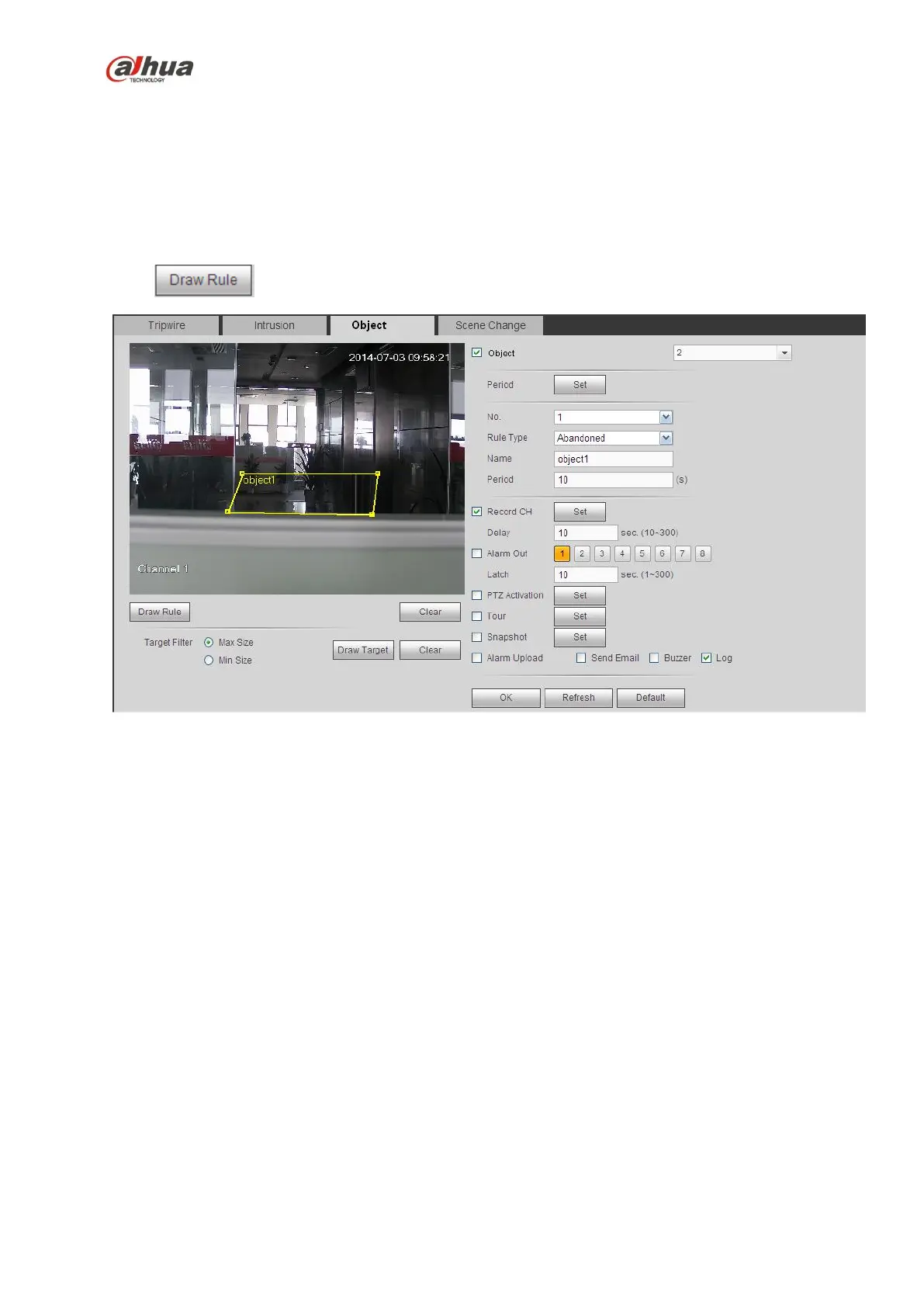

Click to draw the rule. See Figure 5-69.
Figure 5-69
Now you can draw a rule. Left click mouse to draw a line, until you draw a rectangle, you can right click
mouse.
Click Ok to complete the rule setup.
For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information.
5.8.3.2.4 Change Scene
Please make sure you are connecting to the smart network camera, otherwise you can not use
IVS function!
When the detected scene changes ， ,the system can generate an alarm. From main
menu->Setup->Event->IVS->Change scene, the interface is shown as in Figure 5-70.
