User's Manual
7
4KS3/NVR42-16P-4KS3-Series
The figures are for reference only.
The NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-
4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42-16P-
4KS2/LNVR5224-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-4KS3/NVR22-P-
4KS3/NVR22-8P-4KS3/NVR22-16P-4KS3/NVR52-8P-4KS2E/NVR52-16P-4KS2E/NVR42-4KS3/NVR42-P-
4KS3/NVR42-8P-4KS3/NVR42-16P-4KS3 series front panel is shown as below.

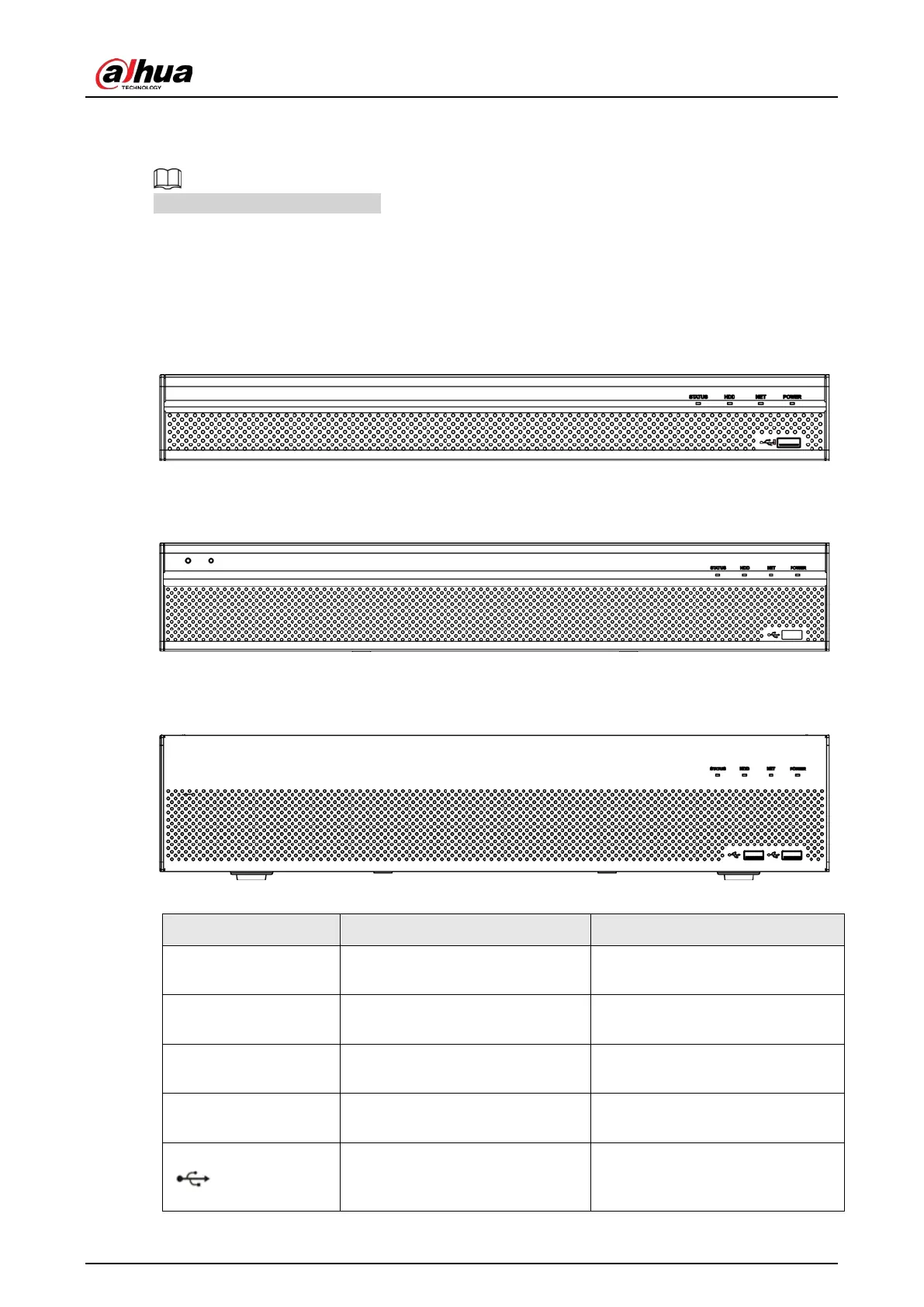

Figure 2-4 Front panel
The NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P-
4KS2/L/NVR54-24P-4KS2/NVR54-16P-4KS2E/NVR44-4KS3 series front panel is shown as below.
Figure 2-5 Front panel
The NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P-
4KS2/L/NVR58-16P-4KS2E/NVR48-4KS3 series front panel is shown as below
Figure 2-6 Front panel
Table 2-3 Icons
Icon Name Function
STATUS Status indicator light
The blue light is on when the
Device is working properly.
HDD HDD status indicator light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
POWER Power status indicator light
The blue light is on when the
power connection is normal.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner
and more.
