User's Manual
30
Icon Port Name Function
A
RS-485
communication
port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B. It is the cable B. You can connect to the
control devices such as speed dome PTZ.
Power input port Input 12 VDC/4 A.
Power switch — Power on/off button.
PoE PORTS —
Built-in Switch. Support PoE or ePoE function.
●
For ePoE series product, port 1 to port 8 are the
ePoE ports. ePoE port supports 300 meters@100
Mbps, 800 meters@10 Mbps. Port 9 to port 16
are general PoE ports.
●
The 8 PoE series product supports total 130 W.
●
The 16 PoE series product supports total 130 W.
2.2.5 NVR54-4KS2/NVR58-4KS2/NVR54-16P-4KS2/NVR58-16P-
4KS2/NVR54-24P-4KS2/NVR58-16P-4KS2E Series

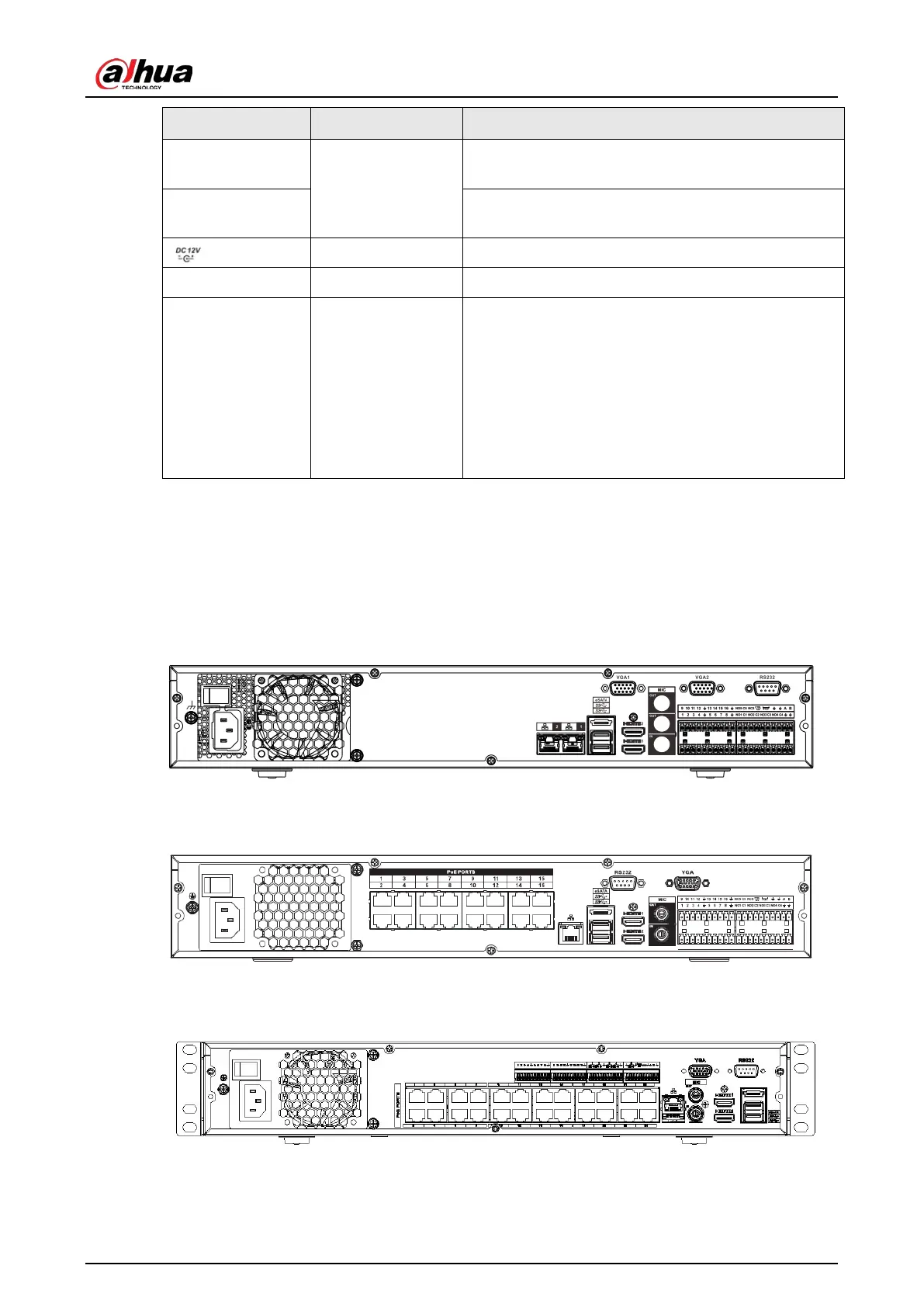

The NVR54-4KS2/NVR58-4KS2 series rear panel is shown as below.
Figure 2-57 Rear panel
The NVR54-16P-4KS2/NVR58-16P-4KS2 series rear panel is shown as below.
Figure 2-58 Rear panel
The NVR54-24P-4KS2 series rear panel is shown as below.
Figure 2-59 Rear panel
The NVR54-16P-4KS2E series rear panel is shown as below.
