Front Panel and Rear Panel 5
2 Front Panel and Rear Panel
The following front panel and rear panel figures are for reference only. The actual product shall prevail.
2.1 Front Panel
 Figure 2-1 takes NVR5864-I and NVR5832-I series as examples.
 Figure 2-2 takes NVR5432-16P-I/5216-16P-I/5216-8P-I series as examples.
 These two figures are for reference only. The actual product shall prevail.

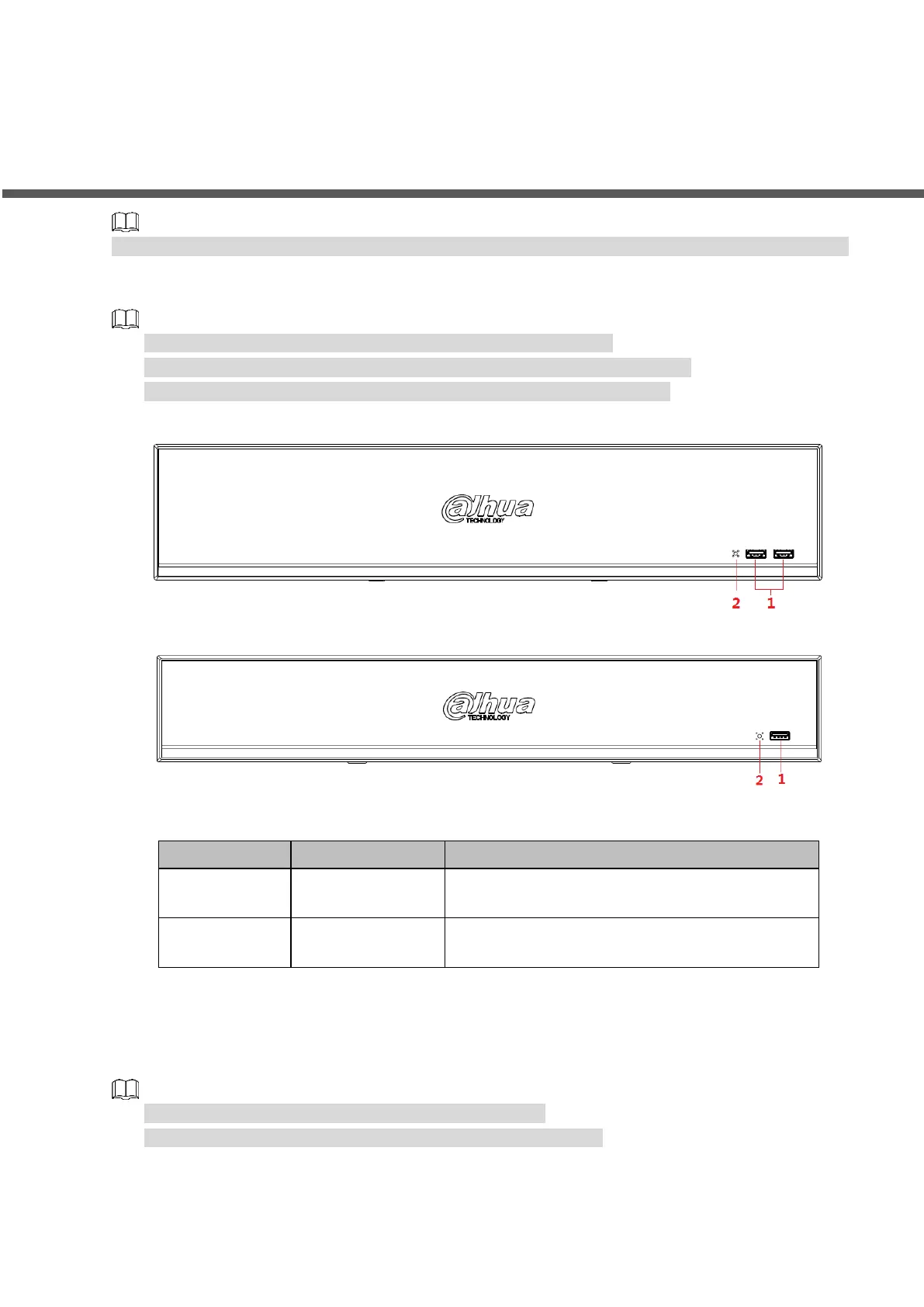

Figure 2-1
Figure 2-2
Table 2-1
No.
Port Name
Function
1
USB port
Connects to the external devices such as
keyboard, mouse, and USB storage device.
2
IR indicator
Receive signals from the remote control.
2.2 Rear Panel
2.2.1 NVR58-I/4832-I Series
 The figure takes NVR5864-I/5832-I series as examples.
 The figure is for reference only. The actual product shall prevail.
