Dahua NVR4416-16P-I User Manual

Front Panel and Rear Panel 12

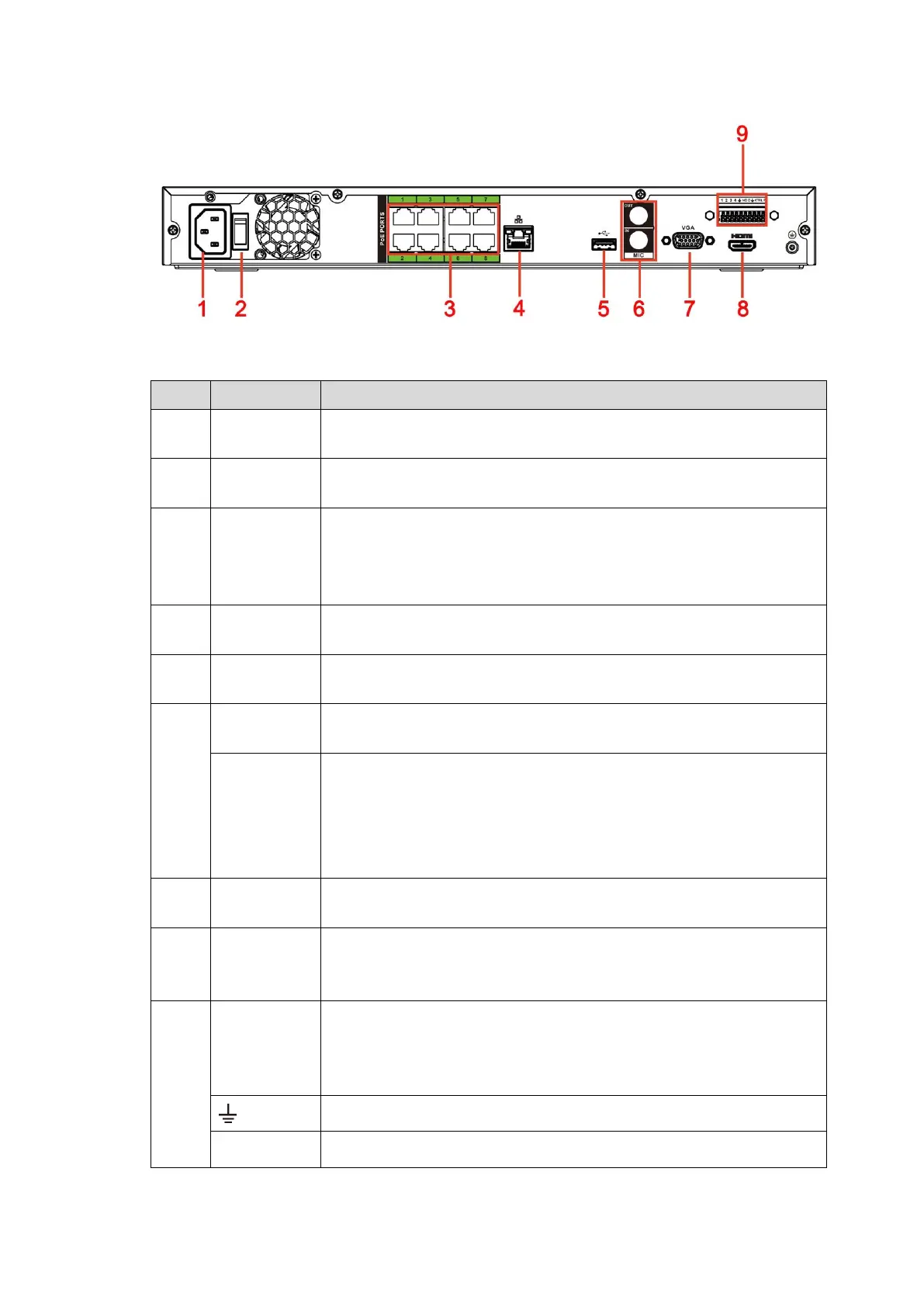

Figure 2-8
Table 2-5
No.
Port Name
Function
1
Power input
port
Input power of 100V-240V and 50Hz-60Hz.
2
Power
button
Turns on/off the NVR.
3
PoE port
Built-in switch. It can provide power for IPC.
8 PoE ports: 1-8 are ePoE ports (support 300m @ 100M. 800m @
10M). The device supports 48V, 100W total power output under
55℃, and 48V, 130W total power output under 45℃.
4
Network port
10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the
network cable.
5
USB port
USB3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
6
MIC IN
Bidirectional talk input port. It is to receive analog audio signal from
devices such as microphone, sound pickup.
MIC OUT
Audio output port. It is to output analog audio signal to devices such
as sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
7
VGA port
VGA video output port. Output analog video signal. It can connect to
the monitor to view analog video.
8
HDMI port
High definition audio and video signal output port. It transmits
uncompressed high definition video and multiple-channel audio data
to displays with HDMI port.
9
Alarm input
port (1-4)
 They receive signals from external alarm source. Alarm input
includes two types; NO (normal open) and NC (normal close).
 When your alarm input device is using external power, make
sure the device and the NVR have the same GND.
GND. Alarm input ground port.
NO C
One NO activation output group. (On-off button).
