Dahua VDP Series User Manual

1
1 Overview
The DHI-KTP01(S) IP Video Intercom kit is a complete solution that includes an outdoor
station with wide-angle camera, a color indoor monitor, and accessories to mount and power
the components. The kit allows a tenant to view and talk with visitors and remotely unlock
doors all from the indoor monitor. The IP outdoor station includes a 2 MP wide angle camera
with two-way talk and is suitable for most outdoor applications. The kit is powered by PoE via
the included 4-port PoE Ethernet switch, making installation easier, without the need to install
additional dedicated power cables.
The kit consists of the following components:
 DHI-VTO2202F-P IP Outdoor Station
 DHI-VTH2421FW-P Indoor Monitor
 DH-PFS3005-4ET-60 PoE Switch
 VTM115 Surface-mount Box for DHI-VTO2202F-P
DHI-VTO2202F-P IP Outdoor Station

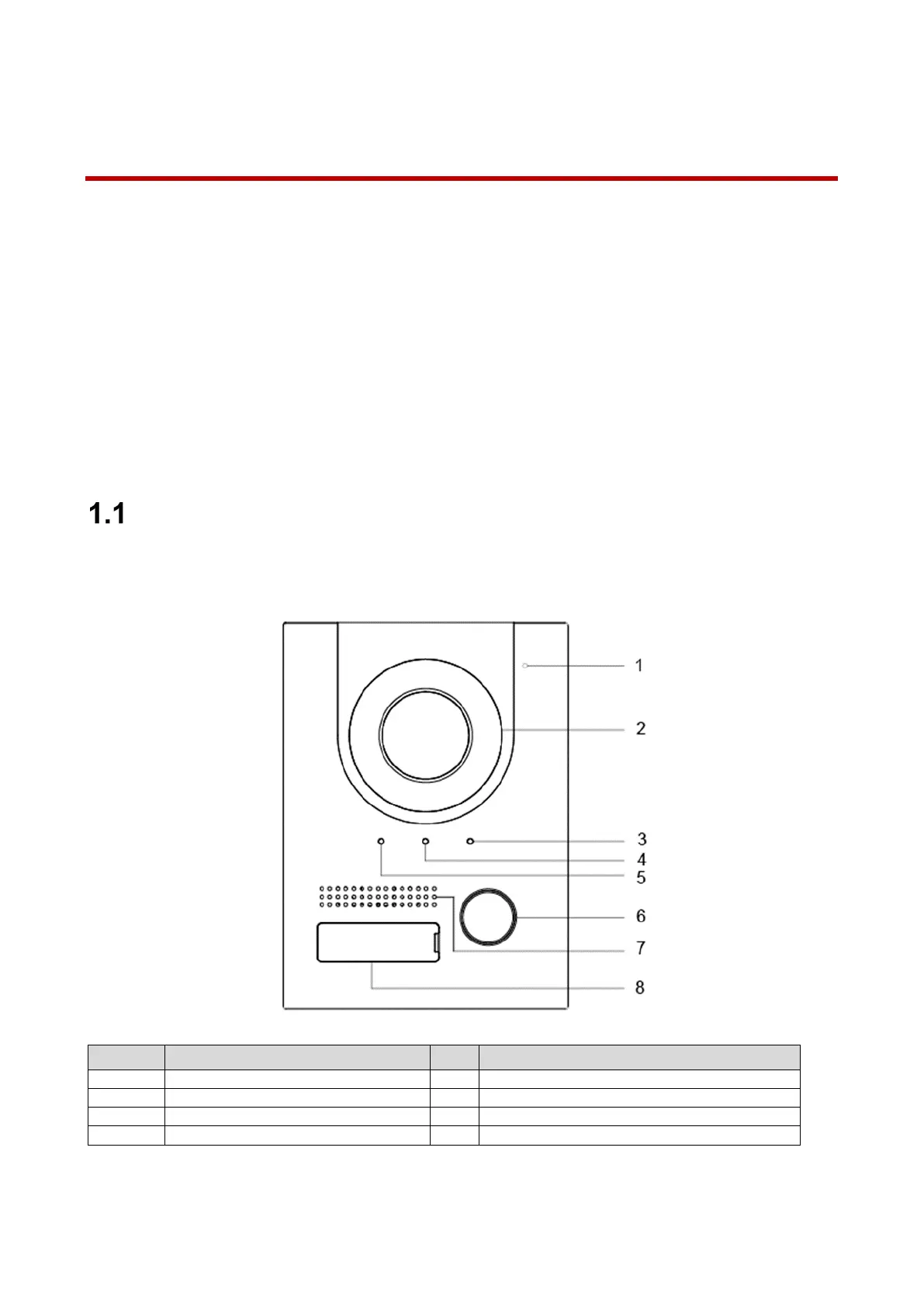

1.1.1 Front Panel
Ref.
Description
Ref
Description
1
Microphone
5
Door Unlocked Indicator
2
Camera
6
Call Button
3
Call Indicator
7
Speaker
4
Communication Indicator
8
Slot for Paper Messages
