Dahua VDP Series User Manual

8

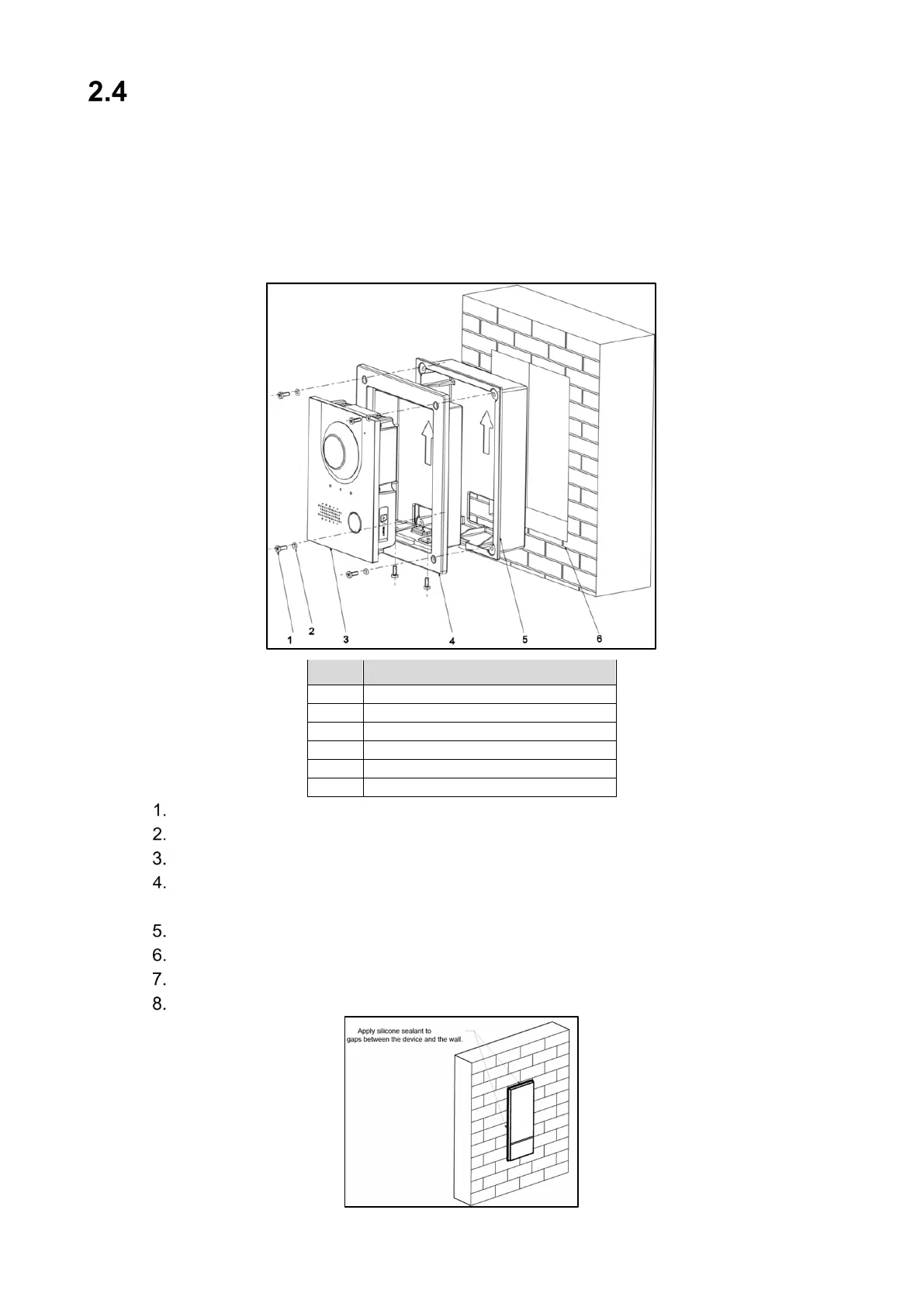

Flush-mount
You must purchase the VTM114 Flush-mount box separately. Prior to installation, ensure that
you can cut a space from the installation medium to accommodate the flush-mount rear panel.
 The dimensions of the space must greater than:
113.0 mm x 149.0 mm x 35.0 mm (4.45 in. x 5.87 in. x 1.38 in.)
 But less than:
123.0 mm x 157.0 mm x 35.0 mm (4.84 in. x 6.18 in. x 1.38 mm)
Ref.
Name
1
M3×8 Screws
2
Waterproof O-ring
3
VTO Outdoor Station
4
Front Panel
5
Rear Panel
6
Wall
Cut a space in the installation medium to accommodate the size of the rear panel.
Place the rear box into the wall. Ensure the arrow points up.
Place the VTO outdoor station into the front panel.
Secure the VTO outdoor station to the surface mount box by screwing the two M3×8
screws from the bottom of the flush-mount front panel.
Place the front panel with the VTO into the rear panel.
Place a waterproof O-ring on each M3 x 8 screw.
Secure the front panel to the rear panel using the four M3 x 8.
Apply silicone sealant to gaps between the device and the wall.
