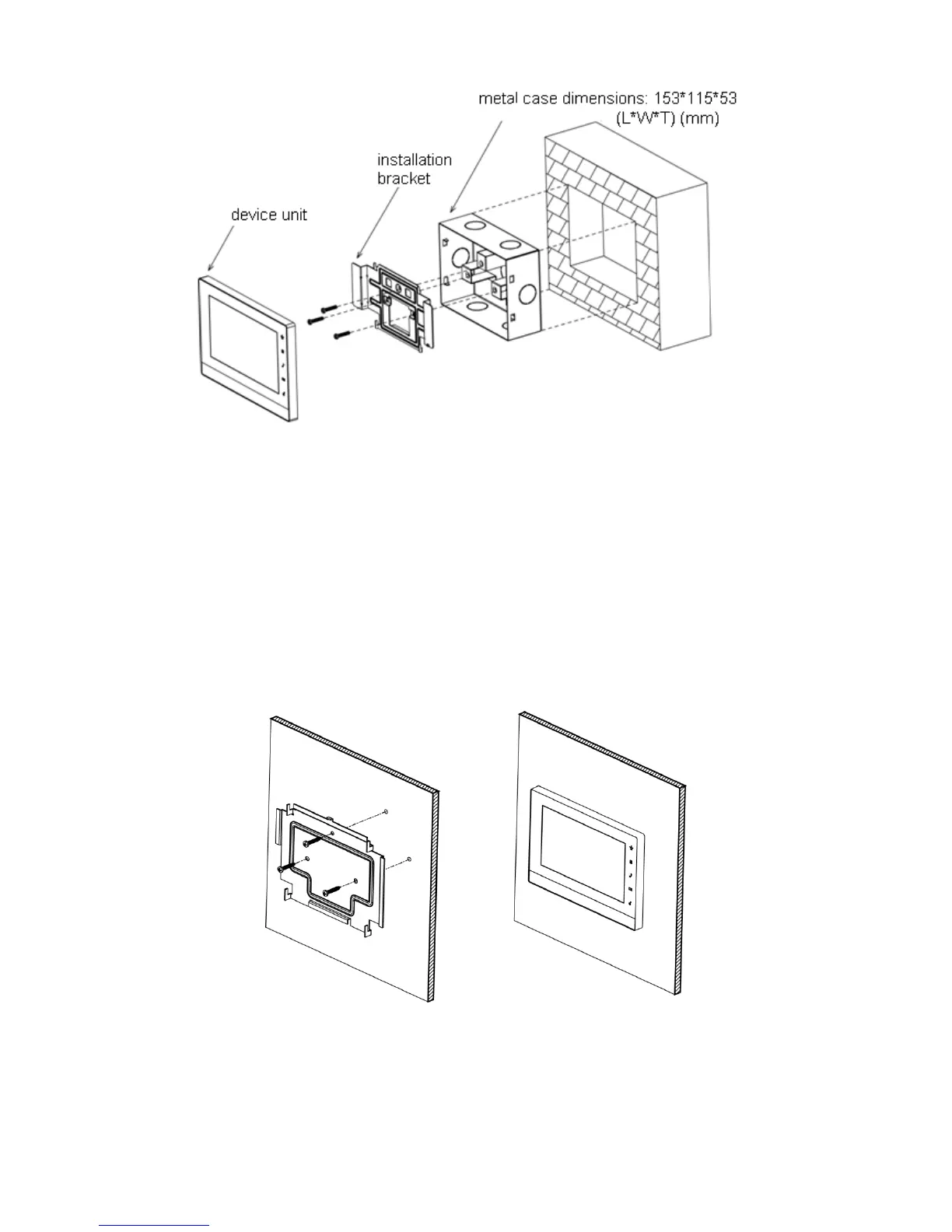

Figure 2- 2
2.1.2 Direct Installation
Direct installation is not to dig holes on wall, instead all wiring go from the side.
Installation Step
Step 1. Fix installation bracket on wall, with screw (M4×30 cross pan head machine screw).
Step 2. Fix the device unit on installation bracket with buckle.
Figure 2- 3
2.2 Wiring
Please refer to Ch 1.3.
