Dahua XVR5104C User Manual

208
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
3
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data to
the HDMI port of the display
device.
4
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
5
Network port
100M Ethernet port
6
Power input port
Input 12V DC.
7
GND
Ground end
2.2.11 HCVR5104HC-V2/HCVR5108HC-V2/HCVR5116HC-V2 Series

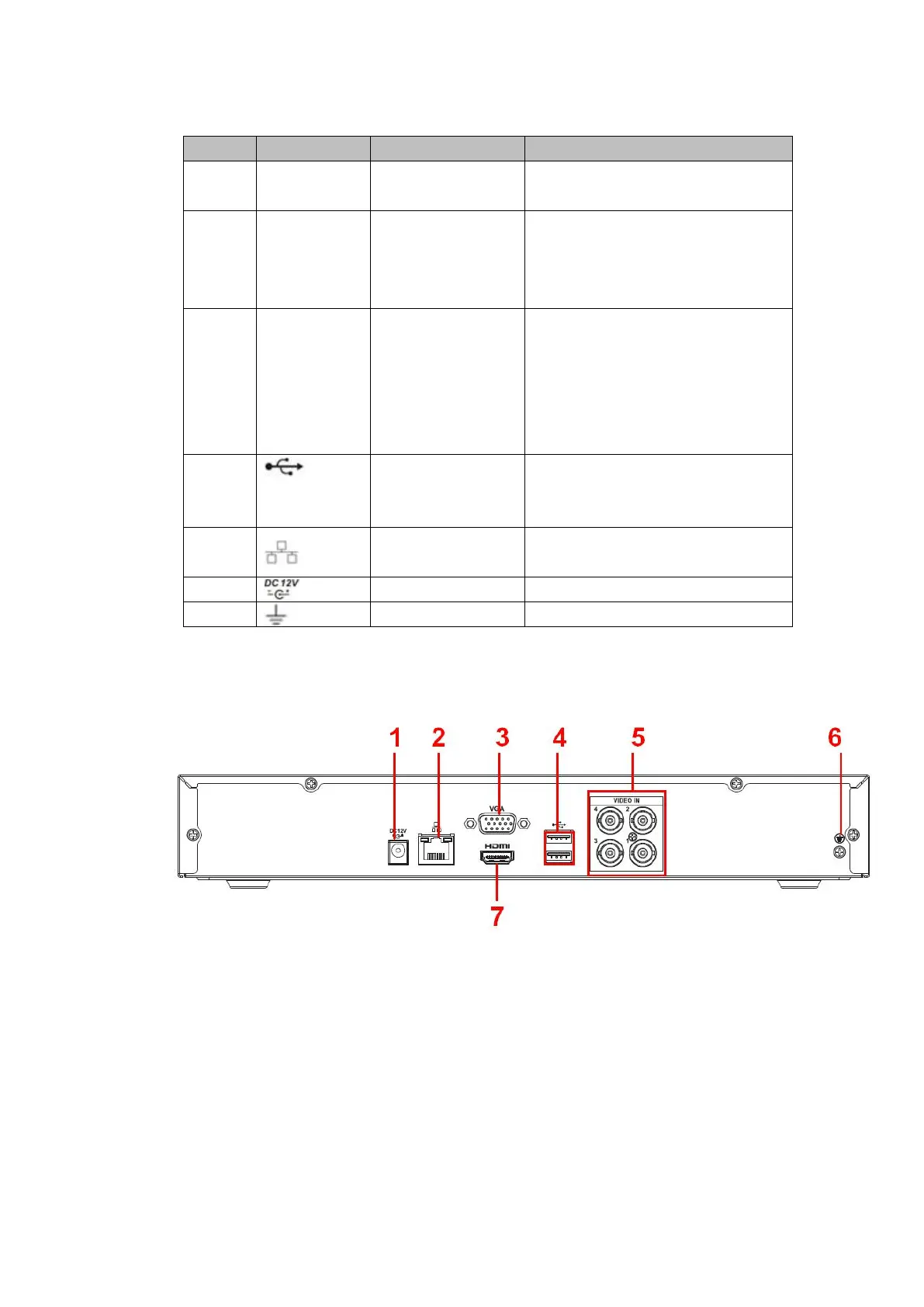

The HCVR5104HC-V2 series rear panel is shown as below. See Figure 2- 28.
Figure 2- 28
The HCVR5108HC-V2 series rear panel is shown as below. See Figure 2- 29.

Dahua XVR5104C Specifications

General

Brand	Dahua
Model	XVR5104C
Category	DVR
Language	English
