235

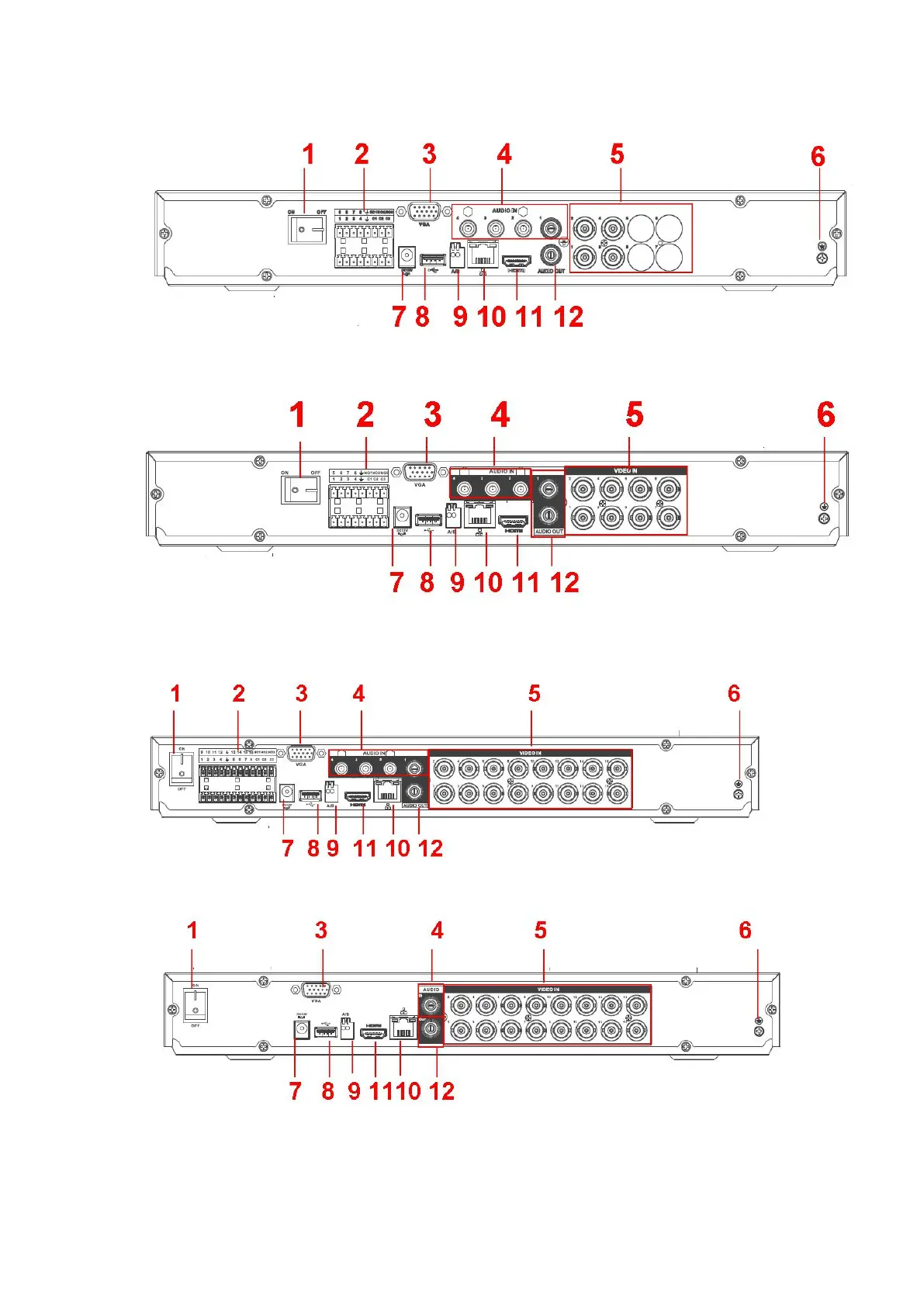

Figure 2- 63
This HCVR4208A-S2 rear panel is shown as below. See Figure 2- 64.
Figure 2- 64
This HCVR4216A-S2 rear panel is shown as below. See Figure 2- 65.
Figure 2- 65
This HCVR4216AN-S2 rear panel is shown as below. See Figure 2- 66.
Figure 2- 66
Please refer to the following sheet for detailed information.
