Function of FFQ Series SiUS121502E
54 Function and Control
2. Function of FFQ Series
2.1 Drain Pump Control
2.1.1 Normal Operation
The float switch is OFF in normal operation.
When cooling operation starts (thermostat ON), the drain pump turns ON simultaneously.
After the thermostat turns OFF, the drain pump continues to operate for another 5 minutes.
The aim of residual operation after thermostat OFF is to eliminate the dew that condenses on
the indoor heat exchanger during cooling operation.
2.1.2 If the Float Switch is ON with the Thermostat ON in Cooling Operation
When the float switch turns ON, the thermostat turns OFF simultaneously.
After the thermostat turns OFF, the drain pump continues to operate for another 5 minutes.
∗1: If the float switch turns OFF again during the residual operation of the drain pump, cooling
operation also turns on again (thermostat ON).
∗2: If the float switch remains ON even after the residual operation of the drain pump has ended,
the error code
A3
is displayed on the remote controller.
∗3: The drain pump turns OFF once residual operation has ended, then turns ON again after 5
seconds.
∗4: After
A3
is displayed and the unit comes to an abnormal stop, the thermostat will remain OFF
even if the float switch turns OFF again.

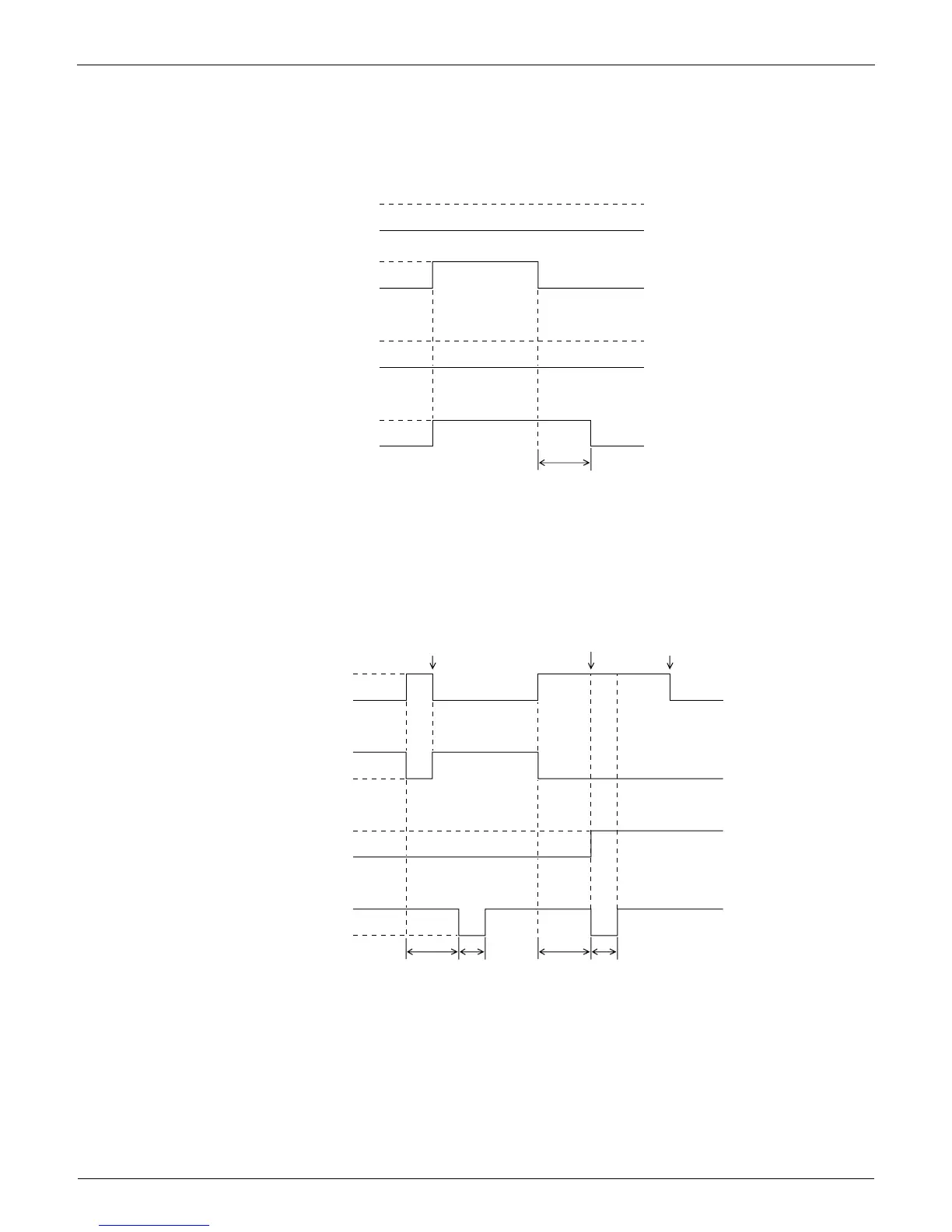

Float switch
Error display
Thermostat
(running)
ON
OFF
OFF
ON
ON
OFF
Drain pump
ON
OFF
5 min.
(R21088)
ON
OFF
OFF
ON
ON
OFF
ON
OFF
5 min.5 min.
5 sec.
5 sec.
(R22380)
Float switch
Error display
Thermostat
(running)
Drain pump
A3
}
∗1
∗2
∗4
∗3
