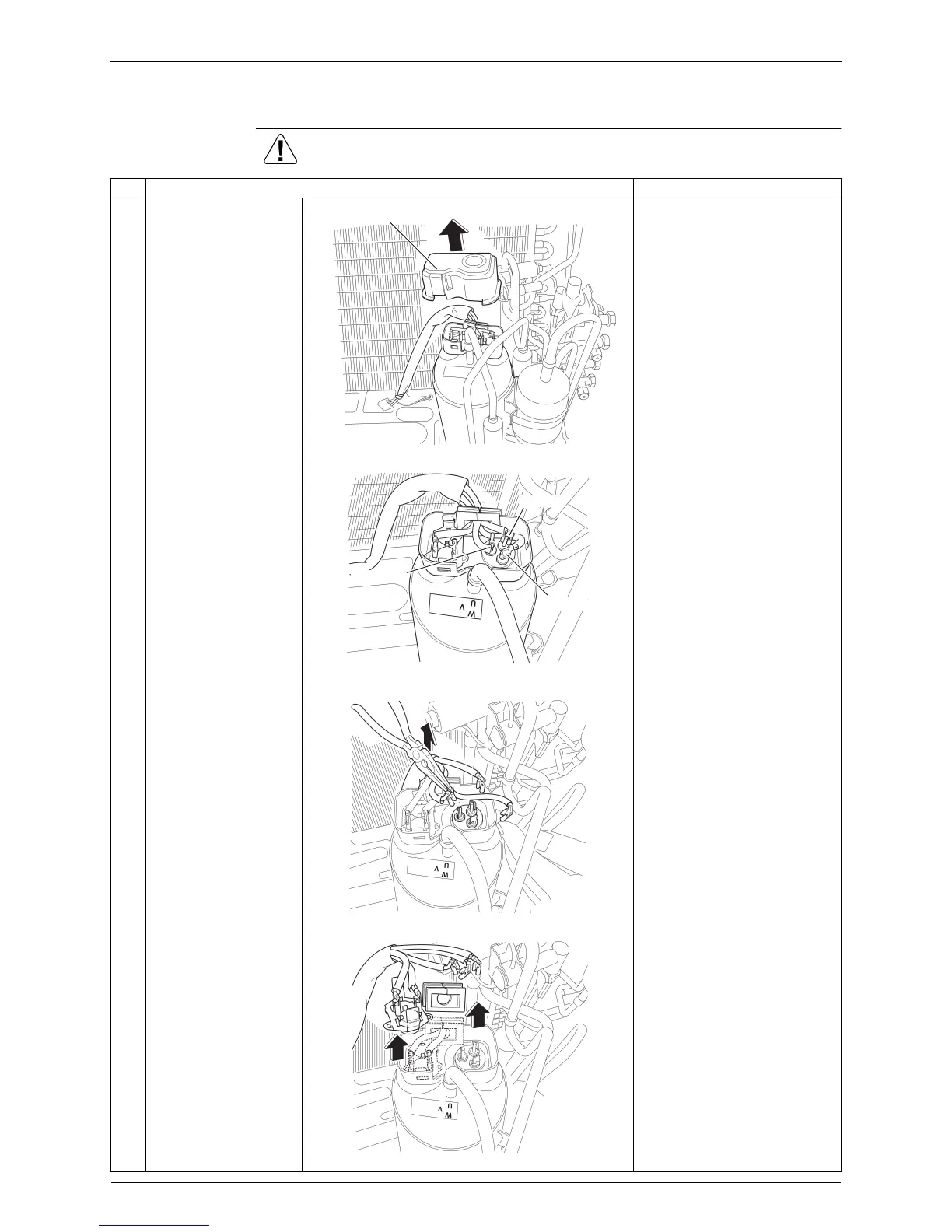

Outdoor Unit SiBE12-816_D
295 Removal Procedure
1.8 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor terminals.
3
Unfasten the hooks with
a flat screwdriver and
remove the overload
protector.
Terminal cover
(R7637)
Red (U)
Yellow (V)
Blue (W)
(R7638)
(R7639)
(R7640)
