Daikin 3MKD75BVMA8 - Service Monitor and Inverter PCB Removal

Si12-793 Removal of PCBs
Removal Procedure 9
8

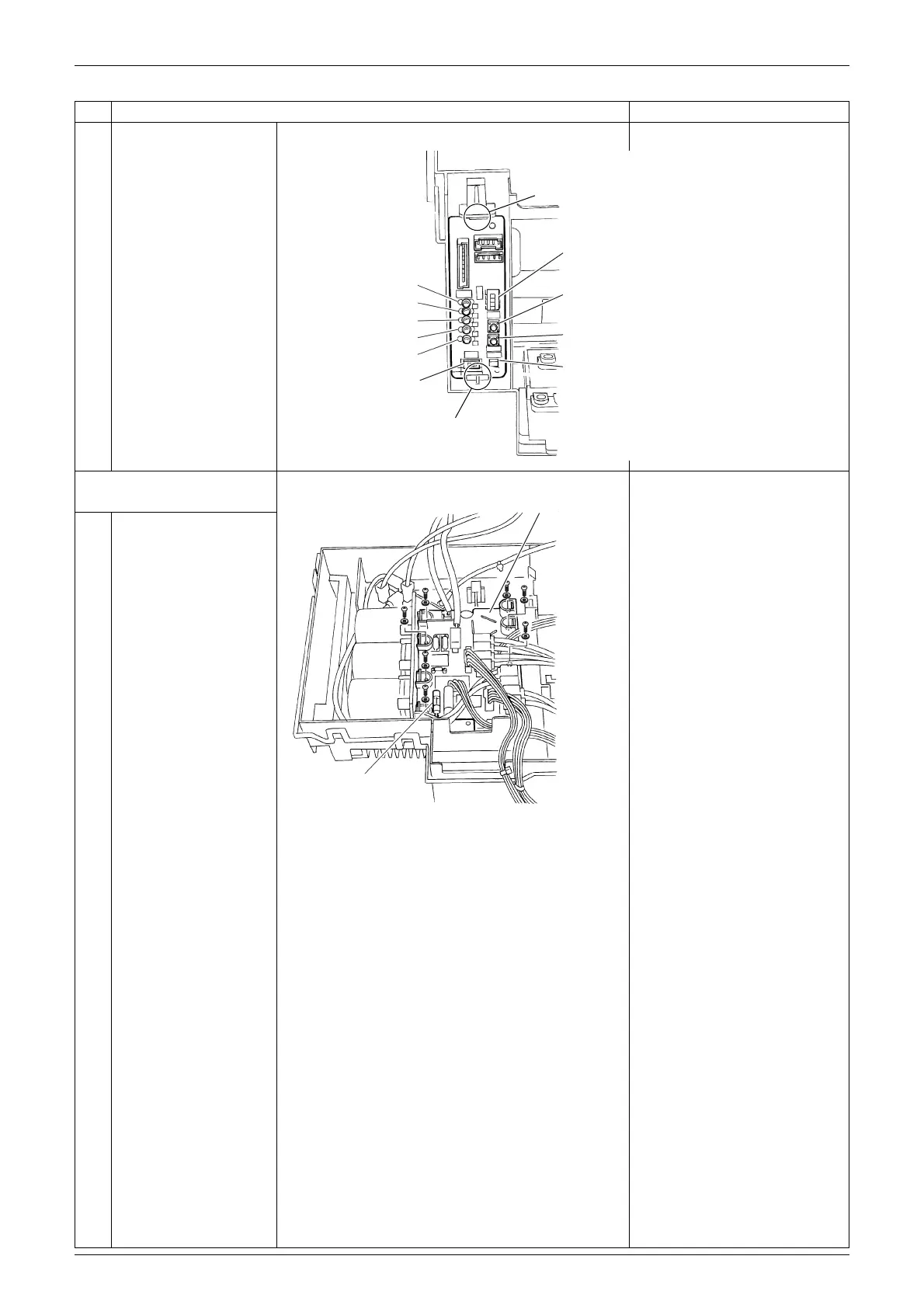

Unfasten the 2 hooks
and remove the service
monitor PCB.
2. Remove the inverter PCB
(MID2).
1
Remove the 7 screws
and remove the inverter
PCB (MID2).
Step
Procedure Points
Priority room setting switch
(SW4)
Wiring error check switch
(SW3)
Forced operation [ON/OFF]
switch (SW1)
NIGHT QUIET mode setting
switch (SW5)
Operation mode switch
(SW2)
Hook
Hook
(R17348)
LED A
LED 1
LED 2
LED 3
LED 4
FU201 (3.15A)
Inverter PCB
(MID2)
(R10355)
