Daikin 3MKS75EVMA - Disconnecting Fan Motor Connector; Dismounting the Electrical Box Assembly

Removal of Electrical Box (Pattern 1) Si121175
6 Removal Procedure
3

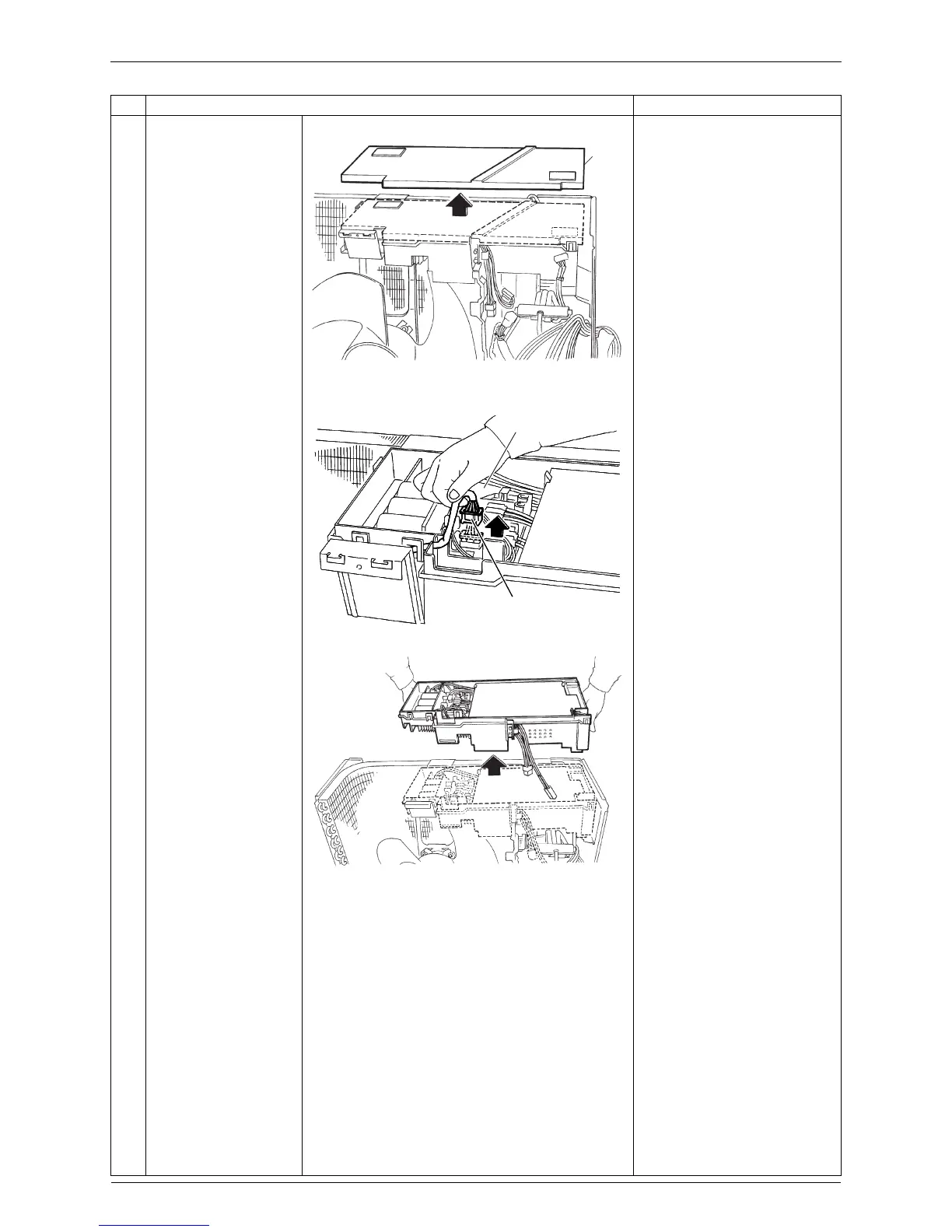

Remove the drip proof
cover.
4
Disconnect the
connector for the fan
motor [S70] from the
inverter PCB.
5
Lift up the electrical box
and dismount it.
Step
Procedure Points
Drip
proof
cover
(R2174)
Inverter PCB
[S70]
(R2175)
(R2176)
