Removal of Outer Panels Si121174
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1

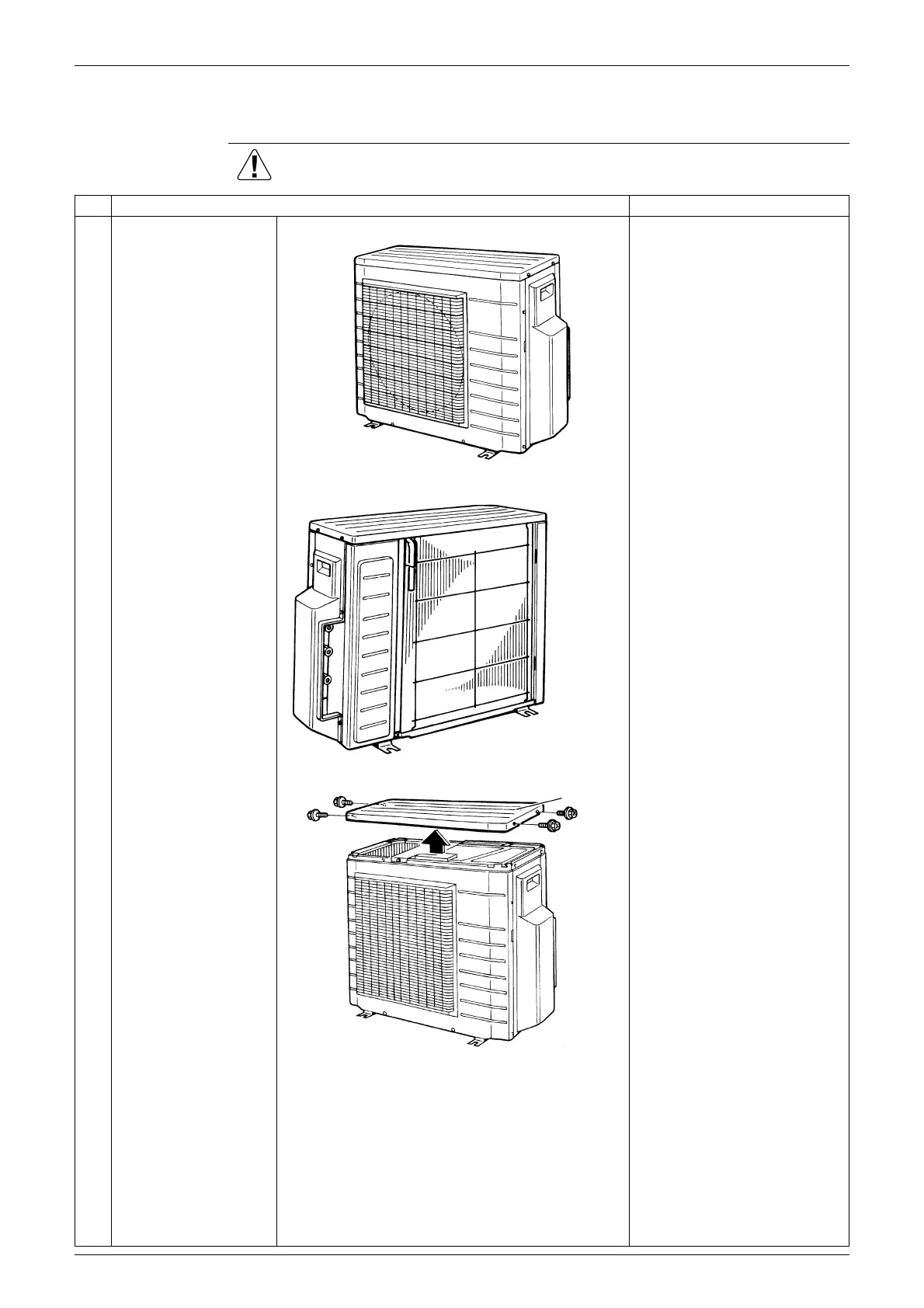

Appearance features
Take care not to cut your
finger by the fins of the heat
exchanger.
2
Remove the 4 screws
(2 on both sides) of the
top panel.
(R5494)
(R12898)
Top panel
(R12899)
