Field Settings SiUS121827E
256 Part 7 Trial Operation and Field Settings
Caution
5. Field Settings
5.1 RA Indoor Unit
5.1.1 Model Type Settings

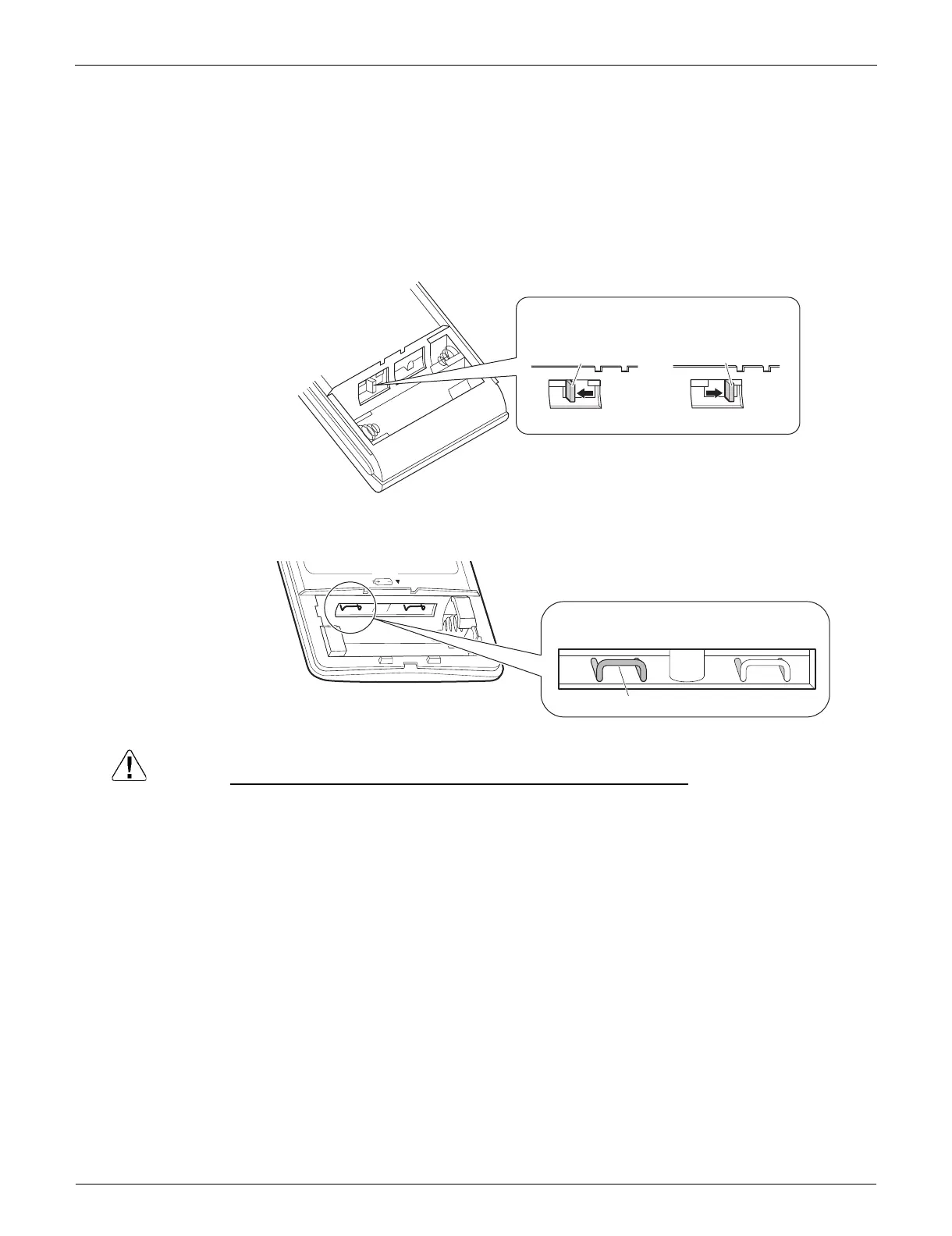

ARC452A21, ARC452A23
 The remote controller is common to the heat pump model and cooling only model.
 Make sure the DIP switch is set to the left side. The heating operation will not be available when
the DIP switch is set to the right side.
ARC466A21, ARC466A36
 The remote controller is common to the heat pump model and cooling only model.
Replace the remote controller if you cut a jumper on the left side.
The heating operation will not be available when the jumper on the left side is cut.
(R18201)
DIP switch
Heat pump model Cooling only model
DIP switch
Never cut this jumper.
(R23955)
