5.4.2.10. RXM71M

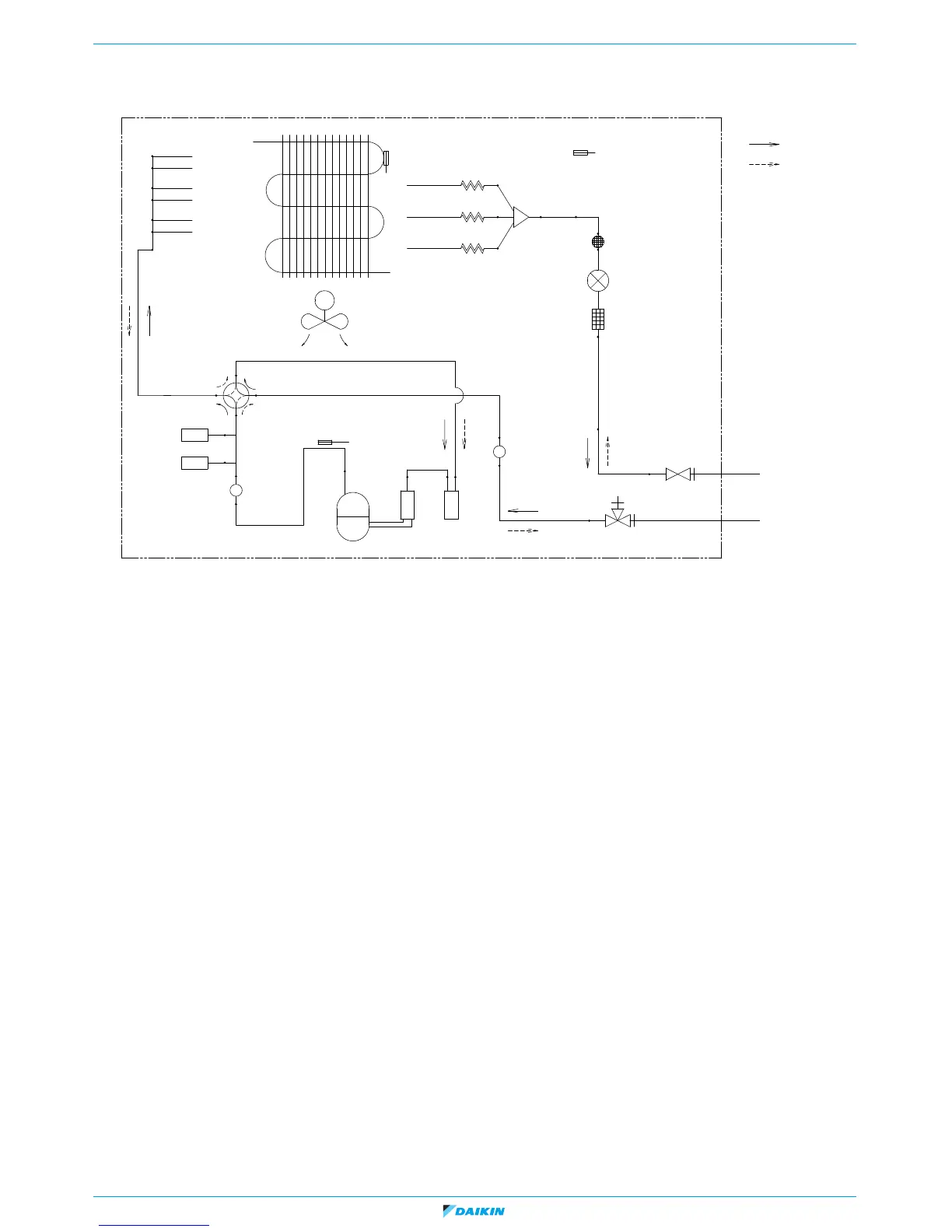

Figure 5-26: Piping diagram - outdoor unit RXM71M
M
S1PH
S2PH
Refrigerant ow
Cooling
Heating
Heat exchanger
Muer with lter
Electronic expansion valve
Filter
Field piping
Field piping
Liquid stop valve
Gas stop valve with service port
Muer
Muer
Compressor
Discharge pipe thermistor
Propeller fan
Outdoor temperature
Thermistor
Heat exchanger thermistor
4-way valve
Accumulator
ON: heating
7.0 CuT
7.0 CuT
7.0 CuT
7.0 CuT
12.7 CuT
12.7 CuT
12.7 CuT
12.7 CuT
4.0 CuT
4.0 CuT
6.4 CuT
6.4 CuT
6.4 CuT
6.4 CuT
7.0 CuT
7.0 CuT
Capillary tube 3
4.0 CuT
9.5 CuT
Automatic reset
Manual reset
High pressure switch
15.9 CuT
9.5 CuT
12.7 CuT
Accumulator
15.9 CuT
6.4 CuT
Capillary tube 2
Capillary tube 1
