3.3.2.11. Replacing thermistors
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
3. Remove plate work when required, see "Basic removal" on page 68.
PROCEDURE
Removal
1. Locate thermistor that needs to be replaced, see "Component checklist" on page 121.
2. Cut the tie wraps (1) that fix the insulation (3) and the thermistor wire (2).
3. Cut the insulation (3) and remove it.
4. Pull the clip (5) that fixes the thermistor (6).
5. Remove the thermistor (6) from the thermistor holder (4).

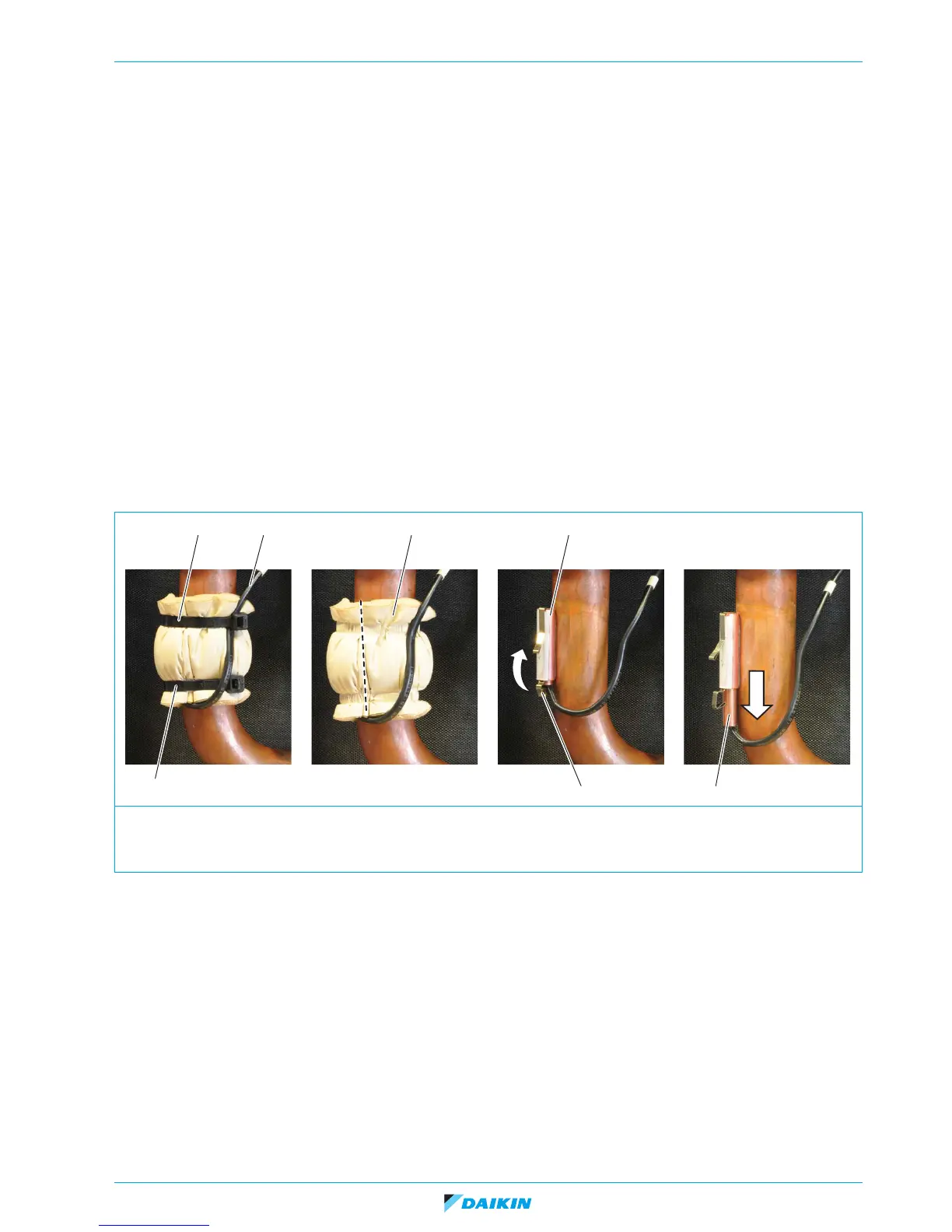

Figure 3-17: Replacing a thermistor
Installation
1. Proceed in reverse order.
1. Tie wrap 4. Thermistor holder
2. Thermistor wire 5. Clip
3. Insulation 6. Thermistor
