ESIE16-02B | Part 5. Appendix 5.1. Field setting
RA R32 Split & multi split M-Series
Page 96 4/04/17 | Version 1.1
5.1.2.2.3 Cool mode lock
1. Use the S15 connector to set the unit to cool only.
Short-circuit pins 3 and 5 of the connector S15 to set to only cool (C).
The following specifications apply to the connector housing and pins.
• ST products Housing: VHR-5N
• Pin: SVH-21T-1,1

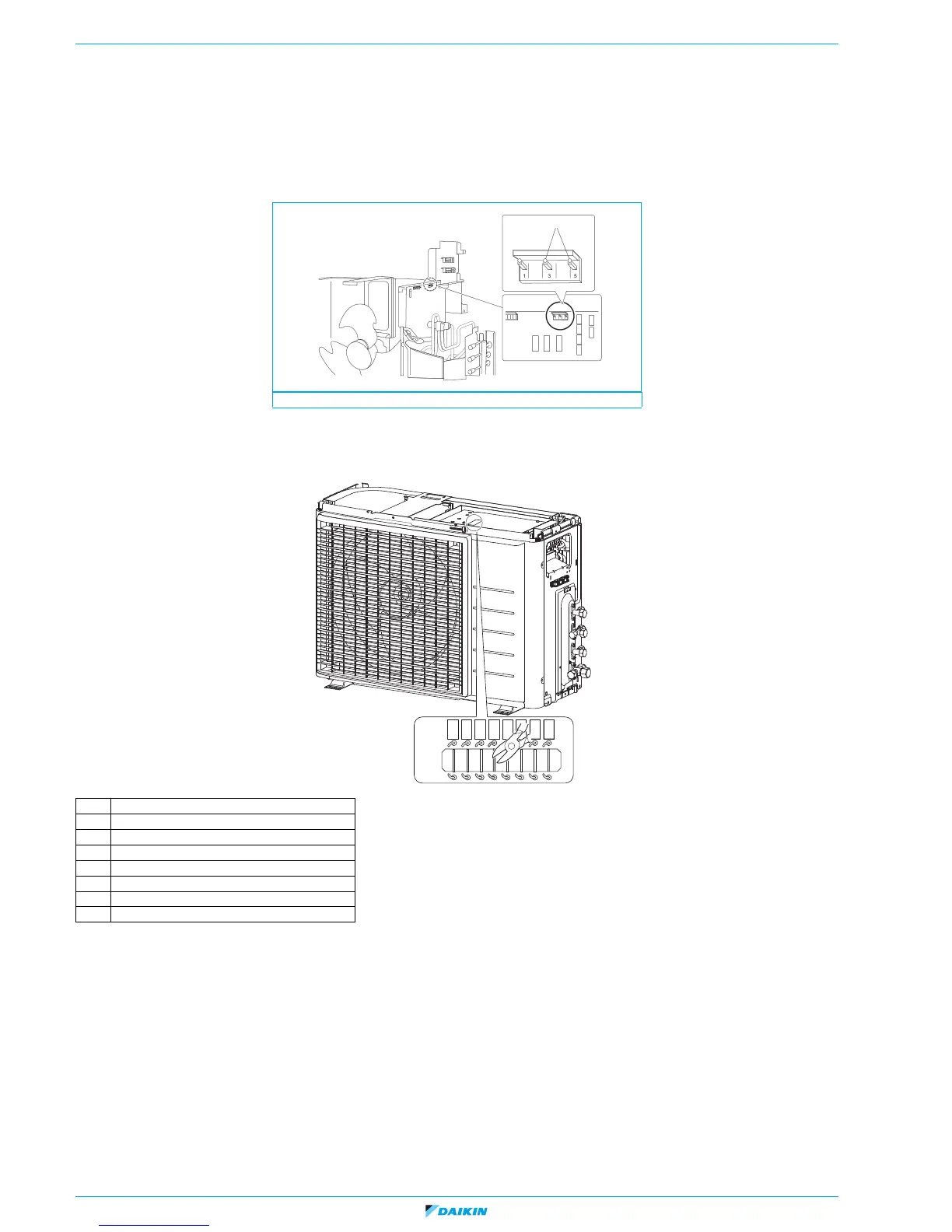

Figure 5-5: S15 connector location
5.1.2.2.4 Multi Split outdoor jumper settings
Figure 5-6: Jumper location
5.1.3. Remote controller
Not applicable.
1. S15 connector pins 3-5
J7
Night quiet mode setting
J8
Not used
J12
Cold region setting for defrost change
J22
Not used
J23
Econo mode prohibition setting
J24
Not used
J25
Not used
J26
Cold region setting for increased max. Hz at low ambient
