1. Transmitter
It sends signals to the indoor unit.
2. Display
It displays the current settings. (In this illustration,
each section is shown with all its displays ON for the
purpose of explanation. Some models may not show
all its indications.)
3. TEMPERATURE adjustment buttons
It changes the temperature setting.
4. ON/OFF button
Press it once to start operation.
To stop it, press it once again.
5. POWERFULL button
6. MODE selector button
It selects the operation mode.
7. FAN setting button
It selects the air flow rate setting.
8. SWING button
9. ON TIMER button
10. OFF TIMER button
11. TIMER CANCEL button
It changes the temperature setting.
12. TIMER Setting button
It changes the time setting.
13. CLOCK button
: DRY
: COOL
: FAN
: AUTO
: DRY
: COOL
: HEAT
<FT> <FTY>

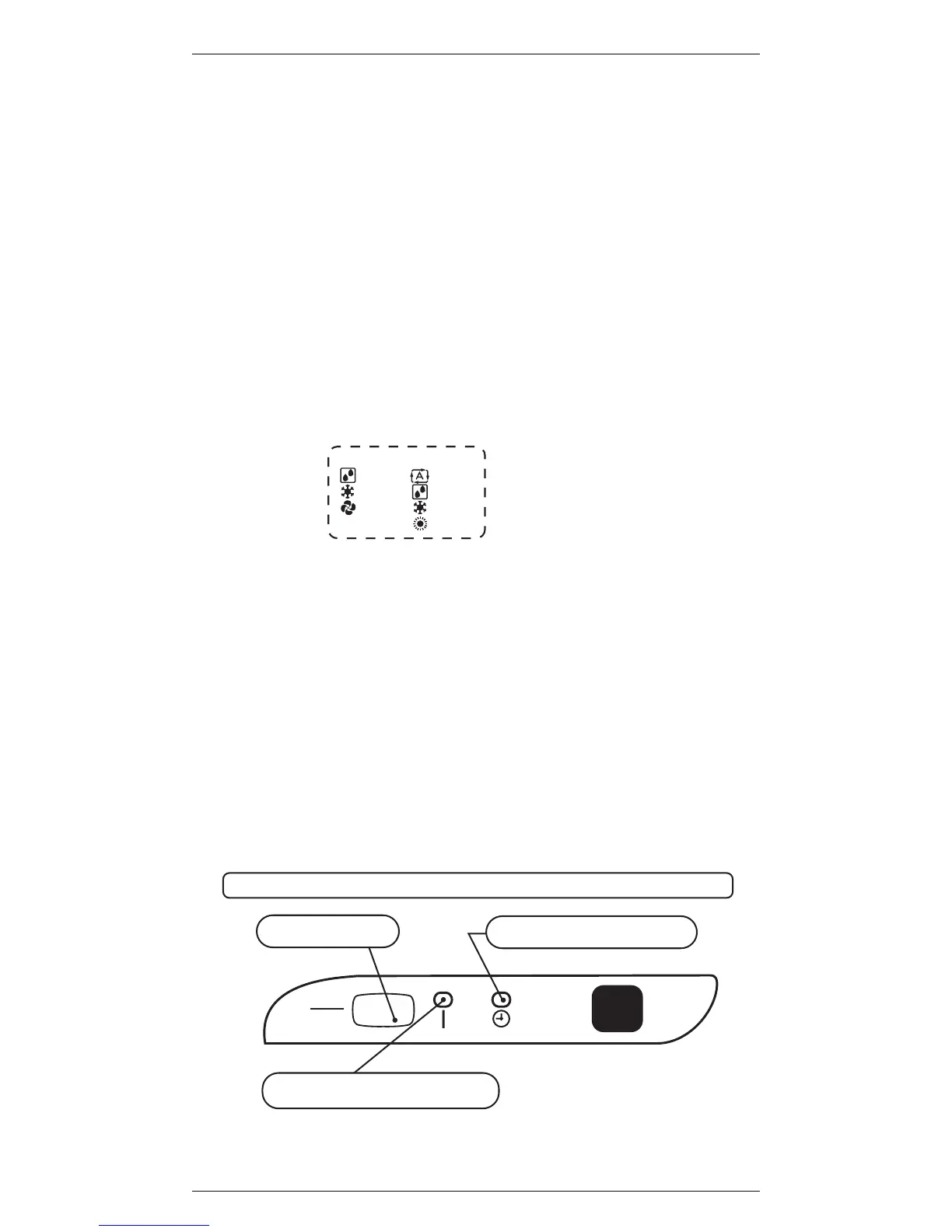

Unit operation panel and displa
y panel
ON
OFF
Operation lamp (green)
TIMER lamp (orange)
ON/OFF button
