Daikin AVXC20 Series User Manual

3

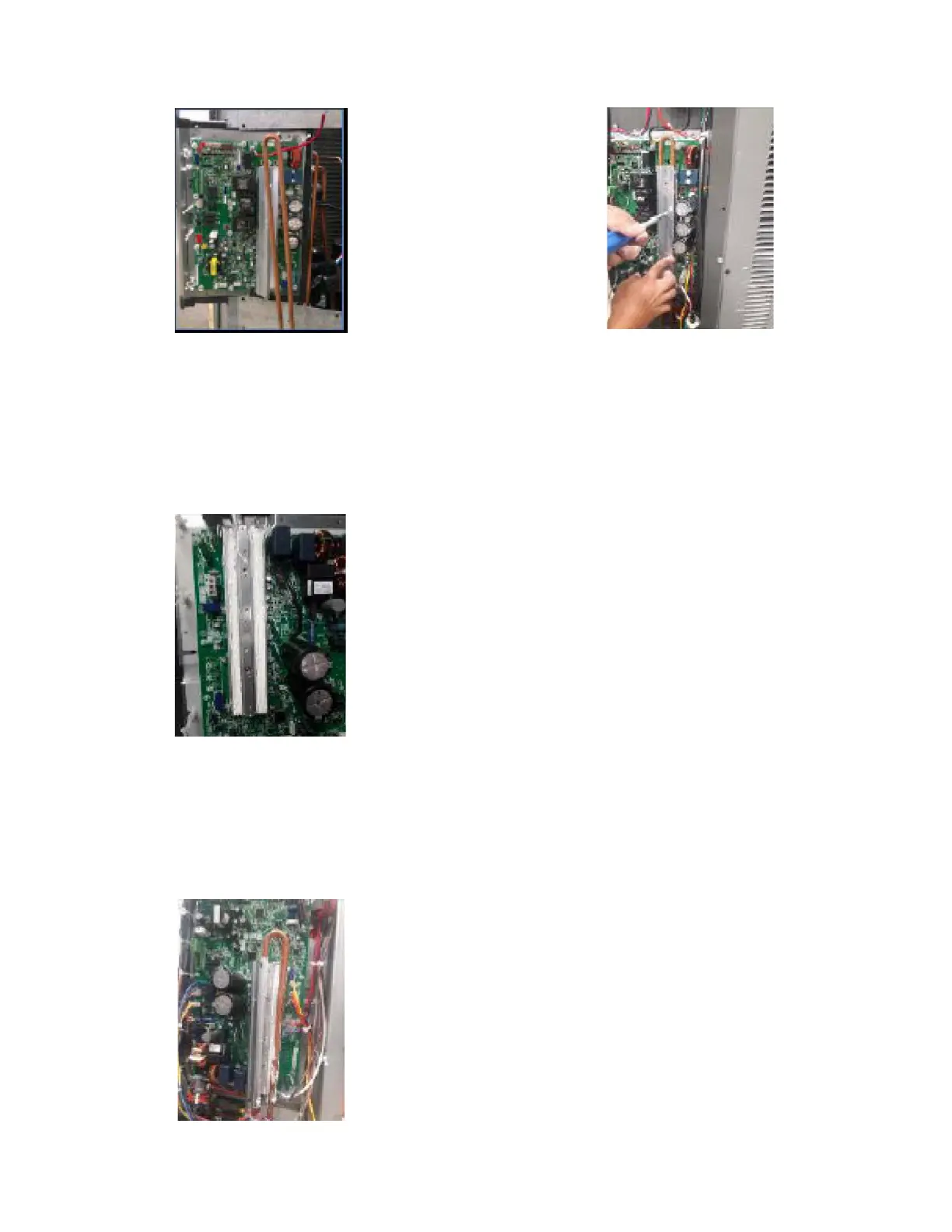

6. Carefully slide the board from the cooling loop. (Figure 3)
Figure 3
NOTE: Do not remove any grease from the cooling loop.
7. Before installing the new board back in place, evenly apply
the thermal grease. (Figure 4)
Figure 4
NOTE: Additional Thermal grease part # 9S00859.
8. Insert the cooling loop in the metal bracket. (Figure 5)
Figure 5
9. Secure the top plate with the screws. (Figure 6)
Figure 6

Daikin AVXC20 Series Specifications

General

Brand	Daikin
Model	AVXC20 Series
Category	Inverter
Language	English
