Field setting method6.
6-1 Press and hold Cancel button for
4 seconds or longer.
Field setting menu is displayed.
Select
6-2 Field setting list in the
fi eld setting menu, and press
Menu/Enter button.
Field setting list screen is
displayed.
Highlight the mode, and select 6-3
desired “Mode No.” by using
(Up/Down) button.
In the case of setting per indoor 6-4
unit during group control (When
Mode No. such as 20 , 21 ,
22 , 23 , 25 are selected),
highlight the unit No. and select
“Indoor unit No.” to be set by
using (Up/Down) button.
(In the case of group total setting,
this operation is not needed.)
In the case of individual setting
per indoor unit, current settings
are displayed. And, SECOND
CODE NO. “ - ” means no
function.
Highlight SECOND CODE NO. of 6-5
the FIRST CODE NO. to be
changed, and select desired
“SECOND CODE NO.” by using
(Up/Down) button. Multiple
identical mode number settings
are available.
In the case of group total
setting, all of SECOND CODE
NO. which may be set are
displayed as “ ∗ ”. “ ∗ ” is
changed to SECOND CODE
NO. to be set. And, SECOND
CODE NO. “ - ” means no
function.

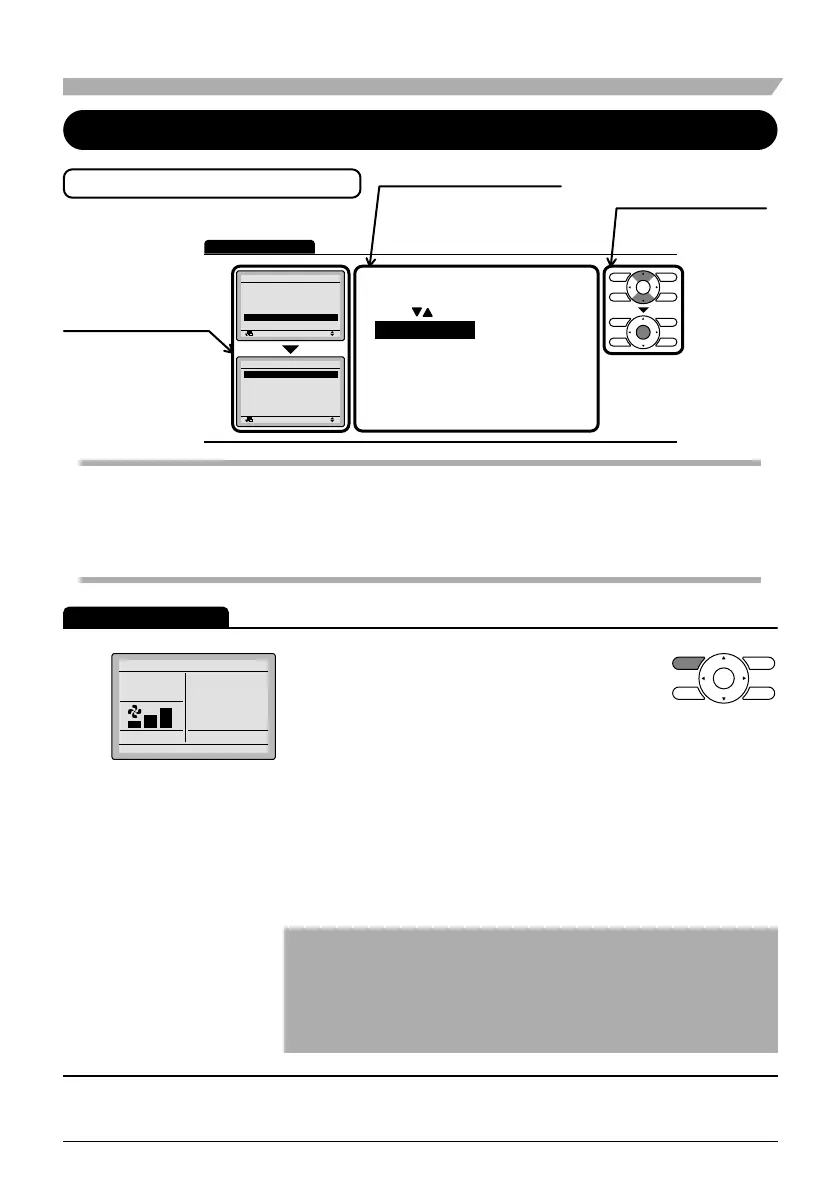

<Basic screen>
16-
Set temperature
28°C
Fan
ReturnPress the menu button
Press and hold Cancel
button for 4 seconds or
longer during backlight lit.
<Field setting menu screen>
26-
Return Setting
Field setting
Test operation ON/OFF
Register Service Contract
Field setting list
Group No. setting
Indoor unit Airnet No. set
Outdoor unit Airnet No. set
1/2
Press Menu/Enter button.
<Field setting screen>
In the case of individual
setting per indoor unit
In the case of group total
setting
36-
46-
56-
Mode
20
Unit No
0
1
–
00
5
–––
9
–––
2
–
00
6
–––
a
–––
3
–
00
7
–––
b
–––
Field setting list
0
–
01
4
–––
8
–––
Return Setting
36-
56-
Mode
10
Unit No
0
1
–
5
–––
9
–––
2
–
6
–––
a
–––
3
–
7
–––
b
–––
Field setting list
0
–
01
4
–––
8
–––
Return Setting
Press Menu/Enter button.
FIRST CODE (SW) NO.
SECOND CODE NO.
