BRC1E52A7 Installation manual
4PW71264-1 – 10.2011
6

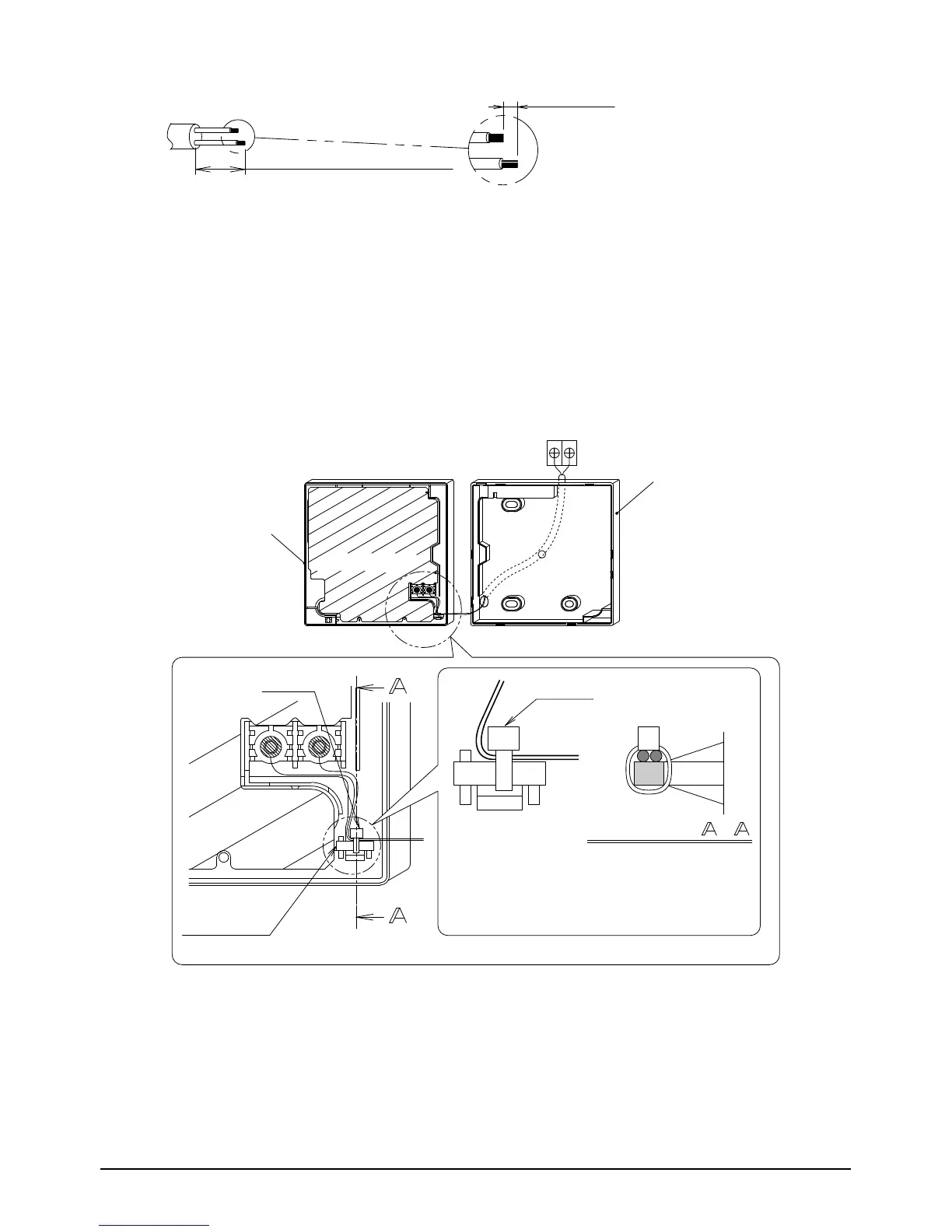

Sheath part in the remote controller case should be stripped.
Peel the shield and sheath
Cutting guideline
of the wiring
±10 mm
For easy wiring, it is better to
keep ±10 mm difference
between the length of two wires.
Sheath stripping length:
±150 mm for upper outlet
±200 mm for upper center outlet
Connect the terminals (P/P1, N/P2) of the remote controller upper case with the terminals (P1, P2)
of the indoor unit. (P1 and P2 have no polarities.)
3-5-1 Back outlet
<Wiring fixing guideline>
Lower case
P1
Indoor unit
P2
Upper case
PC-board
Clamp
Wiring fixing
point
Cross-section -
Secure the wiring at
the wiring fixing point
by using attached
clamping material.
Clamp
