8

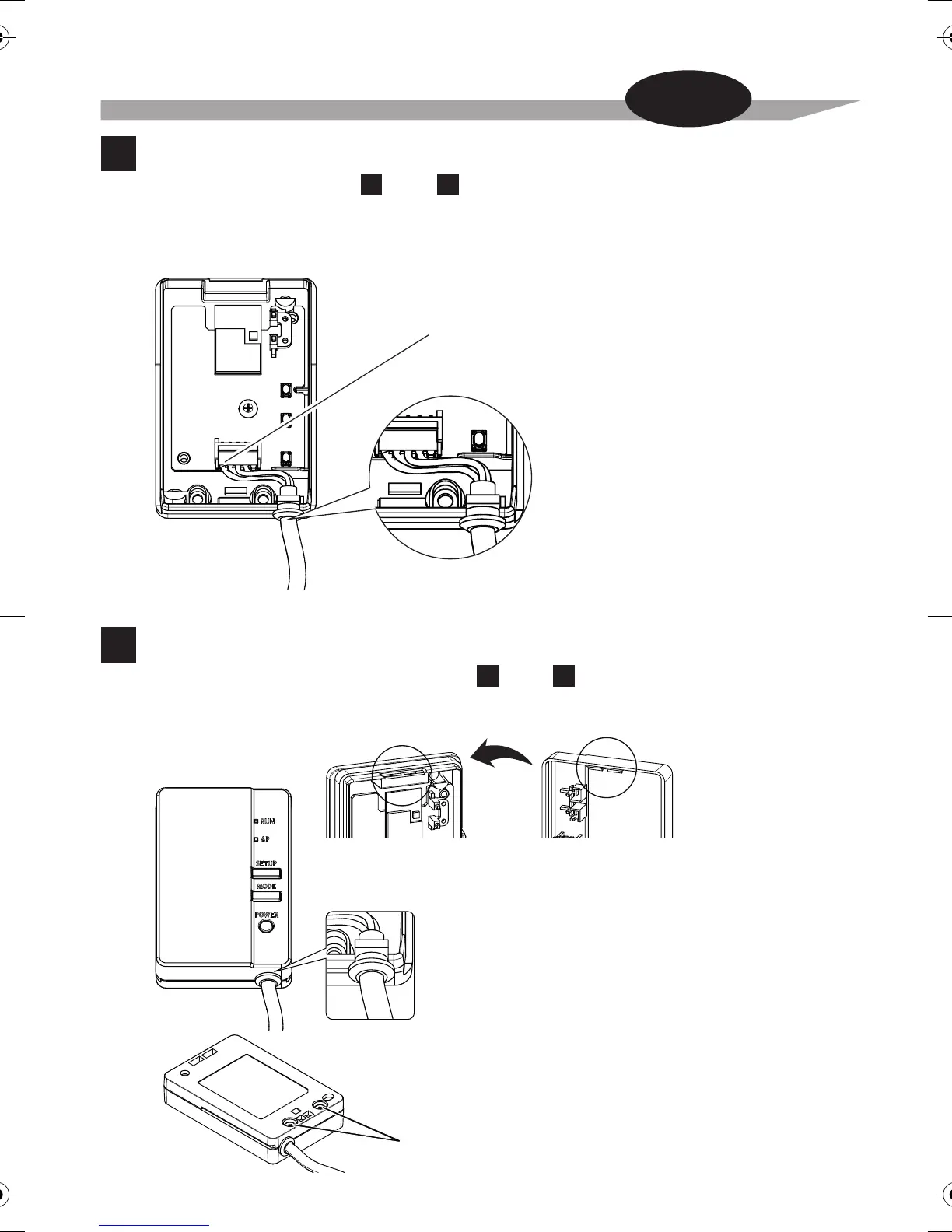

Attach wire harness assembly to the Wireless LAN connecting
4
Installation
Installation
Installation
Work
Attach the
wire harness assembly
connector (white).
•
Fasten the wire harness assembly to the notch in the Wireless LAN connecting adapter case (lower).
Connect the connector to the same color.
Fasten the
wire harness assembly
and ensure that external force is not transmitted.
Connector (white)
Return the Wireless LAN connecting adapter case
to its original state. (For both and .)
Snap the top of the upper case unto the clip at the top of the lower case
and press to close the box.
5
Fix the upper Wireless LAN connecting adapter
case with 2 screws (M3 × 8) located in accessory set.
Wireless LAN connecting
adapter case (lower)
top portion clip
Wireless LAN connecting
adapter case (upper)
top portion clip
Check that the
wire harness assembly
is securely fastened.
adapter. (For both and .)
A B
A B
To Next Page
