Installation of Wireless LAN connecting adapter.
6
Install the Wireless LAN connecting adapter outside the indoor unit. There are two ways
of installation A1 and A2.
For more details about installation of Wireless LAN connecting adapter to your model
please visit http://www.daikinthai.com/wlan3/modbus
Holder
Position of the Wireless LAN connecting adapter on the wall/surface is fixed by screws.
In this case double face tapes located in accessory set are not necessary to fix the holder.

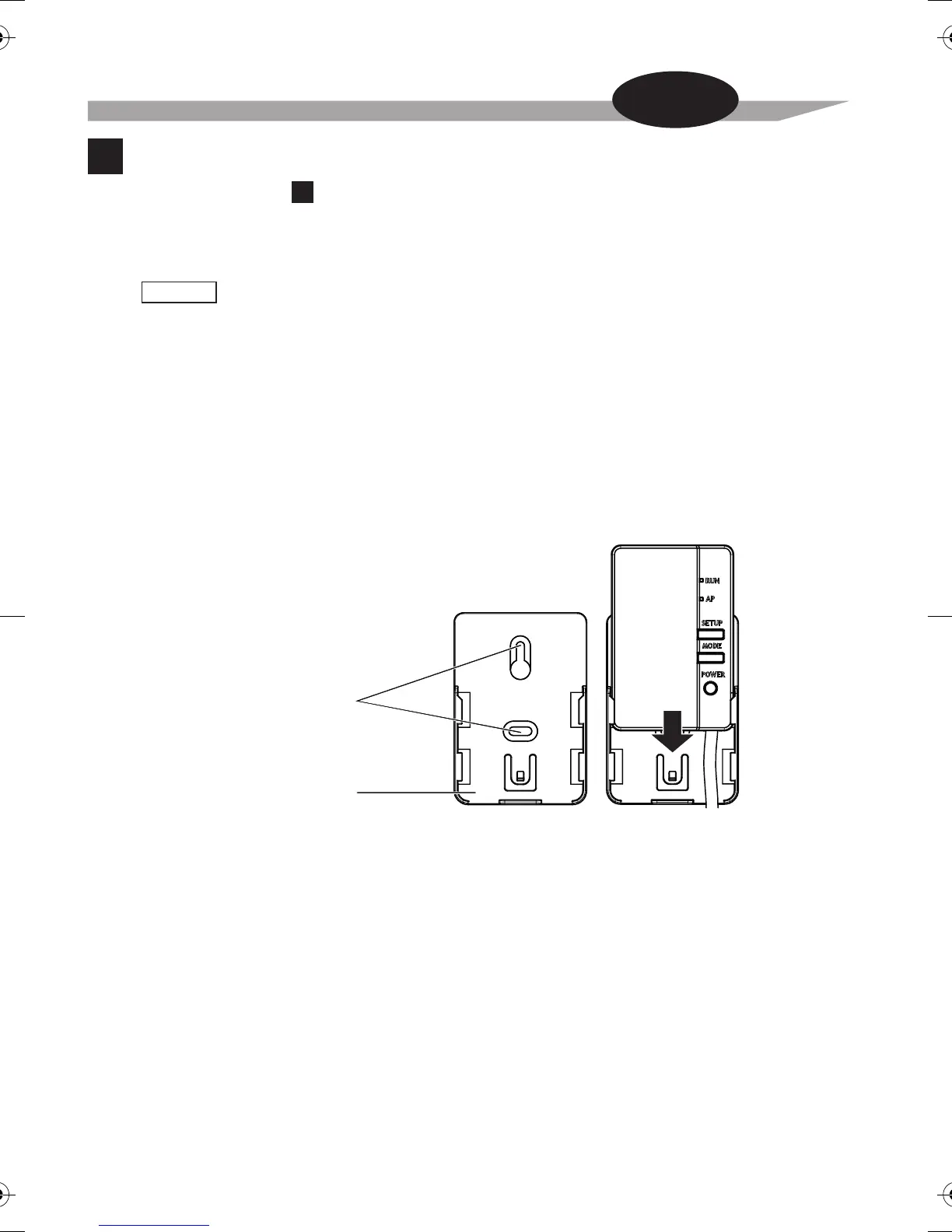

1. Fix the Wireless LAN connecting holder on the wall/surface with 2 screws located
2. Attach the Wireless LAN connecting adapter to the holder by sliding into it.
The front side
of the holder
in accessory set.
Holes for screws
(M3 × 16)
In the case of
A
TYPE A1
