Daikin BRP084C42 - Wiring on Electrical Wiring Board; Install Wiring Box Cover and Front Grille

8
Installation
Installation
Installation
Work
Connect the end of
the connector without
the
wire harness anchor.
Connector

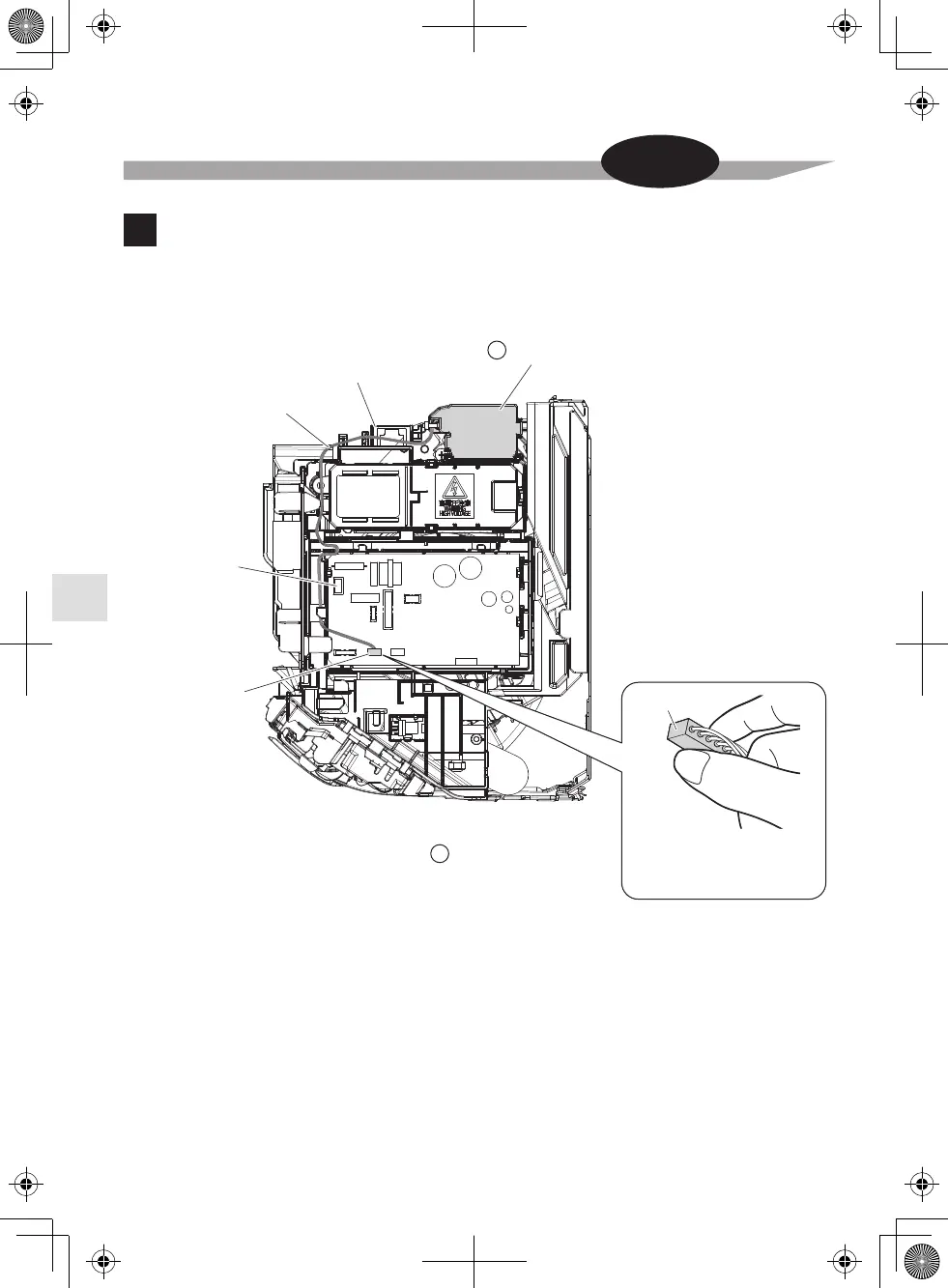

How to perform wiring on the electrical wiring board. 2
Electrical wiring
Electrical wiring box
Electrical wiring
board
Connector “S430”
Wireless LAN connecting adapter
• For instructions on how to install the electrical wiring box cover and front grille,
see the installation manual of the particular air conditioner.
1. Secure and guide the wiring in the electrical wiring box as shown in the figure.
2. Install the electrical wiring box cover and front grille in their original positions.
*An electrical wiring is supplied with the wireless LAN
connecting adapter.
A
A
